LISTINO RUBINETTERIA

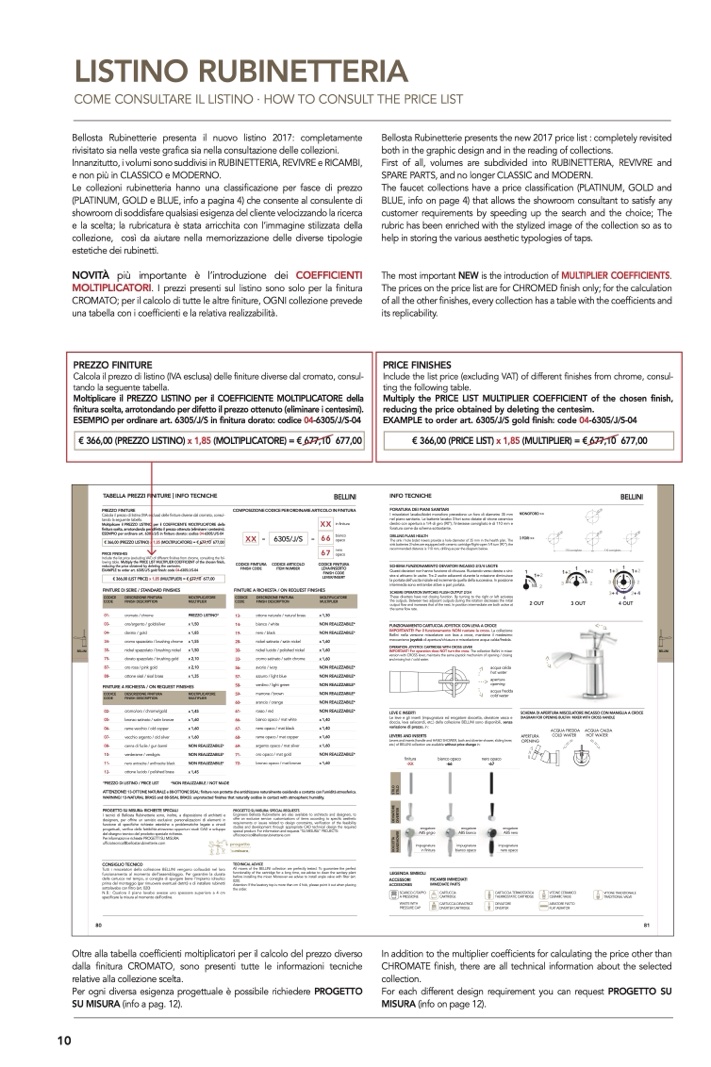

COME CONSULTARE IL LISTINO . HOW TO CONSULT THE PRICE LIST

Bellosta Rubinetterie presenta il nuovo listino 2017: completamente

rivisitato sia nella veste grafica sia nella consultazione delle collezioni.

Innanzitutto, i volumi sono suddivisi in RUBINETTERIA, REVIVRE e RICAMBI,

e non più in CLASSICO e MODERNO.

Le collezioni rubinetteria hanno una classificazione per fasce di prezzo

(PLATINUM, GOLD e BLUE, info a pagina 4) che consente al consulente di

showroom di soddisfare qualsiasi esigenza del cliente velocizzando la ricerca

e la scelta; la rubricatura è stata arricchita con l’immagine stilizzata della

collezione, così da aiutare nella memorizzazione delle diverse tipologie

estetiche dei rubinetti.

NOVITÀ più importante è l’introduzione dei COEFFICIENTI

MOLTIPLICATORI. I prezzi presenti sul listino sono solo per la finitura

CROMATO; per il calcolo di tutte le altre finiture, OGNI collezione prevede

una tabella con i coefficienti e la relativa realizzabilità.

PREZZO FINITURE

Calcola il prezzo di listino (IVA esclusa) delle finiture diverse dal cromato, consul-

tando la seguente tabella.

Moltiplicare il PREZZO LISTINO per il COEFFICIENTE MOLTIPLICATORE della

finitura scelta, arrotondando per difetto il prezzo ottenuto (eliminare i centesimi).

ESEMPIO per ordinare art. 6305/J/S in finitura dorato: codice 04-6305/J/S-04

€ 366,00 (PREZZO LISTINO) x 1,85 (MOLTIPLICATORE) = € 677,10 677,00

Bellosta Rubinetterie presents the new 2017 price list : completely revisited

both in the graphic design and in the reading of collections.

First of all, volumes are subdivided into RUBINETTERIA, REVIVRE and

SPARE PARTS, and no longer CLASSIC and MODERN.

The faucet collections have a price classification (PLATINUM, GOLD and

BLUE, info on page 4) that allows the showroom consultant to satisfy any

customer requirements by speeding up the search and the choice; The

rubric has been enriched with the stylized image of the collection so as to

help in storing the various aesthetic typologies of taps.

The most important NEW is the introduction of MULTIPLIER COEFFICIENTS.

The prices on the price list are for CHROMED finish only; for the calculation

of all the other finishes, every collection has a table with the coefficients and

its replicability.

PRICE FINISHES

Include the list price (excluding VAT) of different finishes from chrome, consul-

ting the following table.

Multiply the PRICE LIST MULTIPLIER COEFFICIENT of the chosen finish,

reducing the price obtained by deleting the centesim.

BELLINI

CODICE

DESCRIZIONE FINITURA

CODE

FINISH DESCRIPTION

01-

cromato / chrome

03-

oro/argento / gold/silver

04-

dorato / gold

34-

cromo spazzolato / brushing chrome

35-

nickel spazzolato / brushing nickel

75-

dorato spazzolato / brushing gold

87-

oro rosa / pink gold

88-

ottone sisal / sisal brass

MOLTIPLICATORE

MULTIPLIER

PREZZO LISTINO°

x 1,50

x 1,85

x 1,55

x 1,50

x 2,10

x 2,10

x 1,35

CODICE

DESCRIZIONE FINITURA

CODE

FINISH DESCRIPTION

13-

ottone naturale / natural brass

14-

bianco / white

19-

nero / black

28-

nickel satinato / satin nickel

30-

nickel lucido / polished nickel

33-

cromo satinato / satin chrome

56-

avorio / ivory

57-

azzurro / light blue

58-

verdino / light green

59-

marrone / brown

60-

arancio / orange

61-

rosso / red

66-

bianco opaco / mat white

67-

nero opaco / mat black

68-

rame opaco / mat copper

69-

argento opaco / mat silver

71-

oro opaco / mat gold

72-

bronzo opaco / mat bronze

MOLTIPLICATORE

MULTIPLIER

x 1,30

NON REALIZZABILE*

NON REALIZZABILE*

x 1,60

x 1,60

x 1,60

NON REALIZZABILE*

NON REALIZZABILE*

NON REALIZZABILE*

NON REALIZZABILE*

NON REALIZZABILE*

NON REALIZZABILE*

x 1,40

x 1,40

x 1,60

x 1,60

NON REALIZZABILE*

x 1,60

BELLINI

TABELLA PREZZI FINITURE | INFO TECNICHE

PREZZO FINITURE

Calcola il prezzo di listino (IVA esclusa) delle finiture diverse dal cromato, consul-

tando la seguente tabella.

Moltiplicare il PREZZO LISTINO per il COEFFICIENTE MOLTIPLICATORE della

finitura scelta, arrotondando per difetto il prezzo ottenuto (eliminare i centesimi).

ESEMPIO per ordinare art. 6305/J/S in finitura dorato: codice 04-6305/J/S-04

€366,00(PREZZOLISTINO)x1,85(MOLTIPLICATORE)=€677,10 677,00

PRICE FINISHES

Include the list price (excluding VAT) of different finishes from chrome, consulting the fol-

lowing table. Multiply the PRICE LIST MULTIPLIER COEFFICIENT of the chosen finish,

reducing the price obtained by deleting the centesim.

EXAMPLE to order art. 6305/J/S gold finish: code 04-6305/J/S-04

€366,00(LISTPRICE)x1,85(MULTIPLIER)=€677,10 677,00

FINITURE DI SERIE / STANDARD FINISHES

BELLINI

COMPOSIZIONE CODICE PER ORDINARE ARTICOLO IN FINITURA

INFO TECNICHE

FORATURA DEI PIANI SANITARI

I miscelatori lavabo/bidet monoforo prevedono un foro di diametro 35 mm

nel piano sanitario. Le batterie lavabo 3 fori sono dotate di vitone ceramico

destro con apertura a 1/4 di giro (90°); l’interasse consigliato è di 110 mm e

foratura come da schema sottostante.

DRILLING PLANS HEALTH

The sink / hole bidet mixers provide a hole diameter of 35 mm in the health plan. The

sink batteries 3 holes are equipped with ceramic cartridge Right-open 1/4 turn (90 °); the

recommended distance is 110 mm, drilling as per the diagram below.

SCHEMA FUNZIONAMENTO DEVIATORI INCASSO 2/3/4 USCITE

Questi deviatori non hanno funzione di chiusura. Ruotando verso destra o sini-

stra si attivano le uscite. Tra 2 uscite adiacenti durante la rotazione diminuisce

la portata dell’uscita iniziale ed incrementa quella della successiva. In posizione

intermedia sono entrambe attive a pari portata.

SCHEME OPERATION SWITCHES FLUSH OUTPUT 2/3/4

These diverters have not closing function. By turning to the right or left activates

the outputs. Between two adjacent outputs during the rotation decreases the initial

output flow and increases that of the next. In position intermediate are both active at

the same flow rate.

FUNZIONAMENTO CARTUCCIA JOYSTICK CON LEVA A CROCE

IMPORTANTE! Per il funzionamento NON ruotare la croce. La collezione

Bellini nella versione miscelatore con leva a croce, mantiene il medesimo

meccanismo joystick di apertura/chiusura e miscelazione acqua calda/fredda.

OPERATION JOYSTICK CARTRIDGE WITH CROSS LEVER

IMPORTANT! For operation does NOT turn the cross. The collection Bellini in mixer

version with CROSS lever, maintains the same joystick mechanism of opening / closing

and mixing hot / cold water.

BELLINI

XX

XX - 6305/J/S - 66

in finitura

bianco

opaco

nero

opaco

MONOFORO >>

3 FORI >>

CODICE FINITURA

FINISH CODE

CODICE ARTICOLO

ITEM NUMBER

CODICE FINITURA

LEVA/INSERTO

FINISH CODE

LEVER/INSERT

FINITURE A RICHIESTA / ON REQUEST FINISHES

67

EXAMPLE to order art. 6305/J/S gold finish: code 04-6305/J/S-04

€366,00(PRICELIST)x1,85(MULTIPLIER)=€677,10 677,00

D

O

C

C

E

T

T

A

D

E

V

I

A

T

O

R

E

S

T

I

L

O

H

A

N

D

S

H

O

W

E

R

D

I

V

E

R

T

E

R

S

T

I

L

O

10

80

81

FINITURE A RICHIESTA / ON REQUEST FINISHES

acqua calda

hot water

apertura

opening

acqua fredda

cold water

CODICE

DESCRIZIONE FINITURA

CODE

FINISH DESCRIPTION

02-

cromo/oro / chrome/gold

05-

bronzo satinato / satin bronze

06-

rame vecchio / old copper

07-

vecchio argento / old silver

08-

canna di fucile / gun barrel

10-

verderame / verdigris

11-

nero antracite / anthracite black

12-

ottone lucido / polished brass

MOLTIPLICATORE

MULTIPLIER

x 1,45

x 1,60

x 1,60

x 1,60

NON REALIZZABILE*

NON REALIZZABILE*

NON REALIZZABILE*

x 1,45

LEVE E INSERTI

SCHEMA DI APERTURA MISCELATORE INCASSO CON MANIGLIA A CROCE

DIAGRAM FOR OPENING BUILT-IN MIXER WITH CROSS HANDLE

°PREZZO DI LISTINO / PRICE LIST

*NON REALIZZABILE / NOT MADE

ATTENZIONE! 13-OTTONE NATURALE e 88-OTTONE SISAL: finiture non protette che antichizzano naturalmente ossidando a contatto con l’umidità atmosferica.

WARNING! 13-NATURAL BRASS and 88-SISAL BRASS: unprotected finishes that naturally oxidise in contact with atmospheric humidity.

PROGETTO SU MISURA: RICHIESTE SPECIALI

I tecnici di Bellosta Rubinetterie sono, inoltre, a disposizione di architetti e

designers, per offrire un servizio esclusivo: personalizzazioni di elementi in

funzione di specifiche richieste estetiche o problematiche legate a vincoli

progettuali, verifica della fattibilità attraverso opportuni studi CAD e sviluppo

del disegno tecnico del prodotto speciale richiesto.

Per informazioni e richieste PROGETTI SU MISURA:

ufficiotecnico@bellostarubinetterie.com

CONSIGLIO TECNICO

Tutti i miscelatori della collezione BELLINI vengono collaudati nel loro

funzionamento al momento dell’assemblaggio. Per garantire la durata

delle cartucce nel tempo, si consiglia di spurgare bene l’impianto idraulico

prima del montaggio (per rimuovere eventuali detriti) e di installare rubinetti

sottolavabo con filtro (art. 020)

N.B.: Qualora il piano lavabo avesse uno spessore superiore a 4 cm

specificare la misura al momento dell’ordine.

PROGETTO SU MISURA: SPECIAL REQUESTS

Engineers Bellosta Rubinetterie are also available to architects and designers, to

offer an exclusive service: customizations of items according to specific aesthetic

requirements or issues related to design constraints, verification of the feasibility

studies and development through appropriate CAD technical design the required

special product. For information and requests “SU MISURA” PROJECTS:

ufficiotecnico@bellostarubinetterie.com

TECHNICAL ADVICE

All mixers of the BELLINI collection are perfectly tested. To guarantee the perfect

functionality of the cartridge for a long time, we advise to clean the sanitary plant

before installing the mixer. Moreover we advise to install angle valve with filter (art.

020).

Attention: If the lavatory top is more than cm 4 hick, please point it out when placing

the order.

erogatore

ABS bianco

impugnatura

bianco opaco

erogatore

ABS nero

impugnatura

nero opaco

Oltre alla tabella coefficienti moltiplicatori per il calcolo del prezzo diverso

dalla finitura CROMATO, sono presenti tutte le informazioni tecniche

relative alla collezione scelta.

Per ogni diversa esigenza progettuale è possibile richiedere PROGETTO

SU MISURA (info a pag. 12).

In addition to the multiplier coefficients for calculating the price other than

CHROMATE finish, there are all technical information about the selected

collection.

For each different design requirement you can request PROGETTO SU

MISURA (info on page 12).

Le leve e gli inserti (impugnatura ed erogatore doccetta, deviatore vasca e

doccia, leva saliscendi, etc.) della collezione BELLINI sono disponibili, senza

variazione di prezzo, in:

LEVERS AND INSERTS

Levers and inserts (handle and HAND SHOWER, bath and diverter shower, sliding lever,

etc.) of BELLINI collection are available without price change in:

APERTURA

OPENING

ACQUA FREDDA

COLD WATER

ACQUA CALDA

HOT WATER

finitura

-XX

erogatore

ABS grigio

impugnatura

in finitura

bianco opaco

nero opaco

LEGENDA SIMBOLI

ACCESSORI

ACCESSORIES

SCARICO C/TAPPO

A PRESSIONE

WASTE WITH

PRESSURE CAP

RICAMBI IMMEDIATI

IMMEDIATE PARTS

CARTUCCIA

CARTRIDGE

CARTUCCIA DEVIATRICE

DIVERTER CARTRIDGE

CARTUCCIA TERMOSTATICA

THERMOSTATIC CARTRIDGE

DEVIATORE

DIVERTER

VITONE CERAMICO

CERAMIC VALVE

AERATORE PIATTO

FLAT AERATOR

VITONE TRADIZIONALE

TRADITIONAL VALVE

-66
