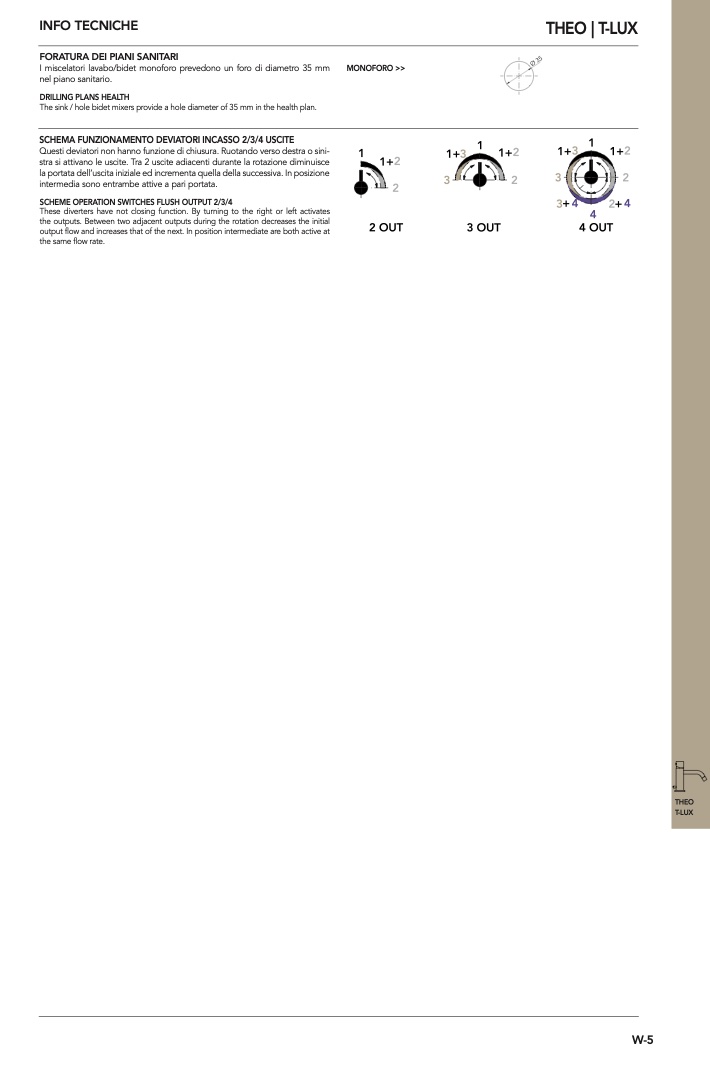

INFO TECNICHE

FORATURA DEI PIANI SANITARI

I miscelatori lavabo/bidet monoforo prevedono un foro di diametro 35 mm

nel piano sanitario.

DRILLING PLANS HEALTH

The sink / hole bidet mixers provide a hole diameter of 35 mm in the health plan.

SCHEMA FUNZIONAMENTO DEVIATORI INCASSO 2/3/4 USCITE

Questi deviatori non hanno funzione di chiusura. Ruotando verso destra o sini-

stra si attivano le uscite. Tra 2 uscite adiacenti durante la rotazione diminuisce

la portata dell’uscita iniziale ed incrementa quella della successiva. In posizione

intermedia sono entrambe attive a pari portata.

SCHEME OPERATION SWITCHES FLUSH OUTPUT 2/3/4

These diverters have not closing function. By turning to the right or left activates

the outputs. Between two adjacent outputs during the rotation decreases the initial

output flow and increases that of the next. In position intermediate are both active at

the same flow rate.

THEO | T-LUX

MONOFORO >>
