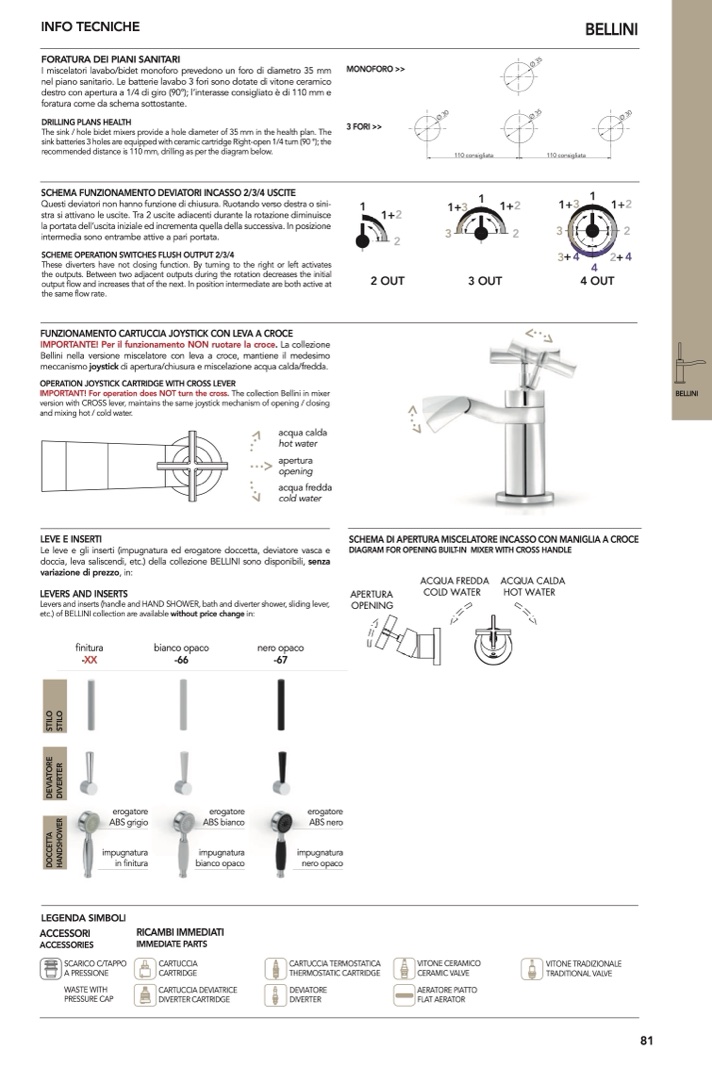

I miscelatori lavabo/bidet monoforo prevedono un foro di diametro 35 mm
nel piano sanitario. Le batterie lavabo 3 fori sono dotate di vitone ceramico
destro con apertura a 1/4 di giro (90°); l’interasse consigliato è di 110 mm e
foratura come da schema sottostante.
DRILLING PLANS HEALTH
3 FORI >>
The sink / hole bidet mixers provide a hole diameter of 35 mm in the health plan. The
sink batteries 3 holes are equipped with ceramic cartridge Right-open 1/4 turn (90 °); the
recommended distance is 110 mm, drilling as per the diagram below.
Questi deviatori non hanno funzione di chiusura. Ruotando verso destra o sini-
stra si attivano le uscite. Tra 2 uscite adiacenti durante la rotazione diminuisce
la portata dell’uscita iniziale ed incrementa quella della successiva. In posizione
intermedia sono entrambe attive a pari portata.
SCHEME OPERATION SWITCHES FLUSH OUTPUT 2/3/4
These diverters have not closing function. By turning to the right or left activates
the outputs. Between two adjacent outputs during the rotation decreases the initial
output flow and increases that of the next. In position intermediate are both active at
the same flow rate.
Bellini nella versione miscelatore con leva a croce, mantiene il medesimo
meccanismo joystick di apertura/chiusura e miscelazione acqua calda/fredda.
OPERATION JOYSTICK CARTRIDGE WITH CROSS LEVER
IMPORTANT! For operation does NOT turn the cross. The collection Bellini in mixer
version with CROSS lever, maintains the same joystick mechanism of opening / closing
and mixing hot / cold water.
BELLINI
DIAGRAM FOR OPENING BUILT-IN MIXER WITH CROSS HANDLE
Le leve e gli inserti (impugnatura ed erogatore doccetta, deviatore vasca e
doccia, leva saliscendi, etc.) della collezione BELLINI sono disponibili, senza
Levers and inserts (handle and HAND SHOWER, bath and diverter shower, sliding lever,
etc.) of BELLINI collection are available without price change in:
APERTURA
OPENING
ACQUA FREDDA
COLD WATER
ACQUA CALDA
HOT WATER
finitura
erogatore
ABS grigio
impugnatura
in finitura
bianco opaco
nero opaco
ACCESSORIES
SCARICO C/TAPPO
A PRESSIONE
WASTE WITH
PRESSURE CAP
IMMEDIATE PARTS
CARTUCCIA
CARTRIDGE
CARTUCCIA DEVIATRICE
DIVERTER CARTRIDGE
CARTUCCIA TERMOSTATICA
THERMOSTATIC CARTRIDGE
DEVIATORE
DIVERTER
VITONE CERAMICO
CERAMIC VALVE
AERATORE PIATTO
FLAT AERATOR
VITONE TRADIZIONALE
TRADITIONAL VALVE
erogatore
ABS bianco
impugnatura
bianco opaco
erogatore
ABS nero
impugnatura
nero opaco
acqua calda
hot water
apertura
opening
acqua fredda
cold water
