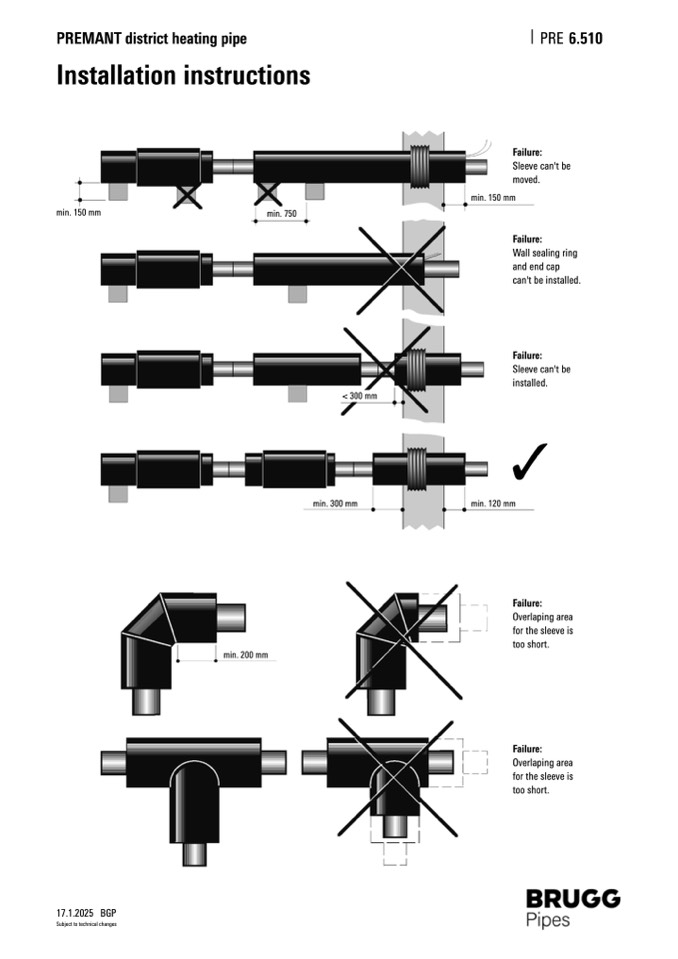

PREMANT district heating pipe

Installation instructions

PRE 6.510

Failure:

Sleeve can't be

moved.

min. 150 mm

Failure:

Wall sealing ring

and end cap

can't be installed.

Failure:

Sleeve can't be

installed.

min. 120 mm

Failure:

Overlaping area

for the sleeve is

too short.

Failure:

Overlaping area

for the sleeve is

too short.

min. 150 mm

min. 750

17.1.2025 BGP

Subject to technical changes

min. 200 mm

< 300 mm

min. 300 mm
