PREMANT district heating pipe

Tapping technology

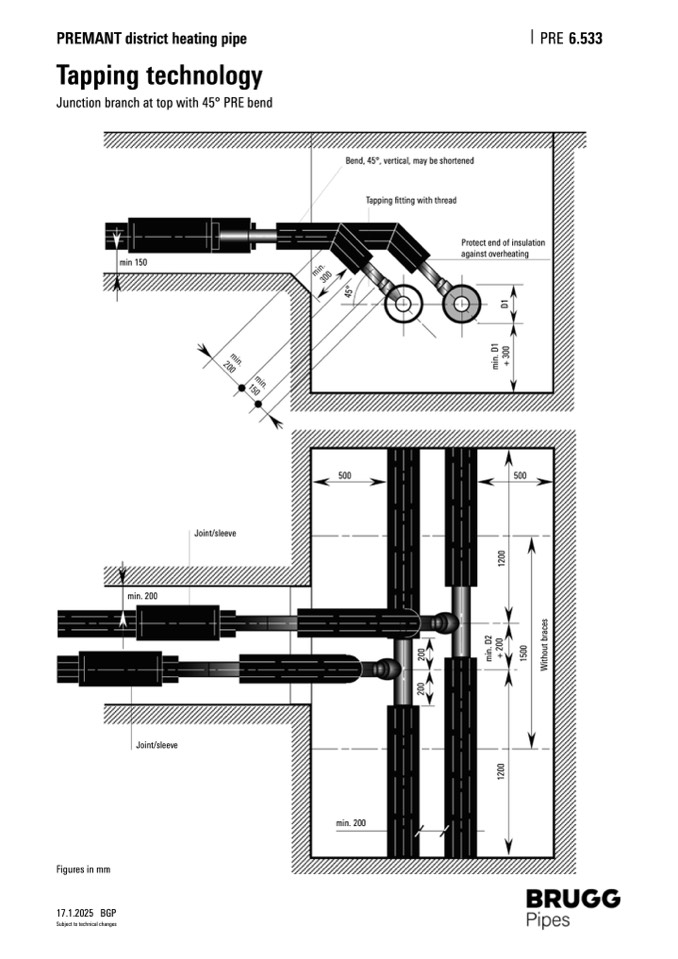

Junction branch at top with 45° PRE bend

PRE 6.533

Figures in mm

17.1.2025 BGP

Subject to technical changes

min 150

Protect end of insulation

against overheating

min. 200

Joint/sleeve

Joint/sleeve

500

500

Bend, 45°, vertical, may be shortened
