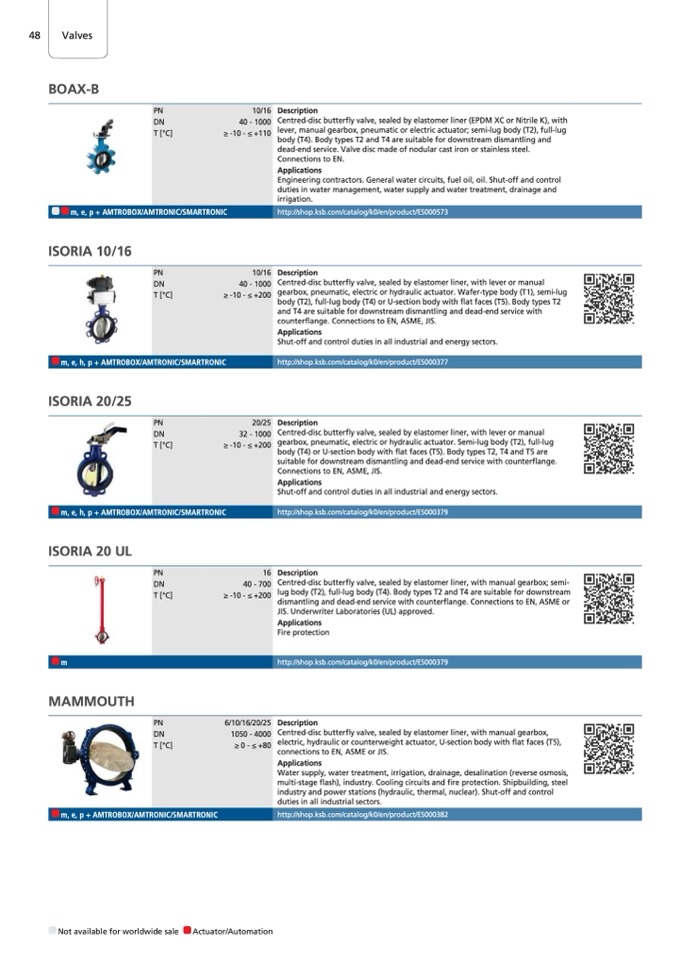

48
Valves
Valves
BOAX-B
m, e, p + AMTROBOX/AMTRONIC/SMARTRONIC
ISORIA 10/16
m, e, h, p + AMTROBOX/AMTRONIC/SMARTRONIC
ISORIA 20/25
m, e, h, p + AMTROBOX/AMTRONIC/SMARTRONIC
ISORIA 20 UL
m
MAMMOUTH
PN
DN
T [°C]
PN
DN
T [°C]
16
40 - 700
≥ -10 - ≤ +200
6/10/16/20/25
1050 - 4000
≥ 0 - ≤ +80
m, e, p + AMTROBOX/AMTRONIC/SMARTRONIC
PN
DN
T [°C]
10/16
40 - 1000
≥ -10 - ≤ +110
Description
Centred-disc butterfly valve, sealed by elastomer liner (EPDM XC or Nitrile K), with
lever, manual gearbox, pneumatic or electric actuator; semi-lug body (T2), full-lug
body (T4). Body types T2 and T4 are suitable for downstream dismantling and
dead-end service. Valve disc made of nodular cast iron or stainless steel.
Connections to EN.
Applications
Engineering contractors. General water circuits, fuel oil, oil. Shut-off and control
duties in water management, water supply and water treatment, drainage and
irrigation.
http://shop.ksb.com/catalog/k0/en/product/ES000573
Description
Centred-disc butterfly valve, sealed by elastomer liner, with lever or manual
gearbox, pneumatic, electric or hydraulic actuator. Wafer-type body (T1), semi-lug
body (T2), full-lug body (T4) or U-section body with flat faces (T5). Body types T2
and T4 are suitable for downstream dismantling and dead-end service with
counterflange. Connections to EN, ASME, JIS.
Applications
Shut-off and control duties in all industrial and energy sectors.
http://shop.ksb.com/catalog/k0/en/product/ES000377
Description
Centred-disc butterfly valve, sealed by elastomer liner, with lever or manual
gearbox, pneumatic, electric or hydraulic actuator. Semi-lug body (T2), full-lug
body (T4) or U-section body with flat faces (T5). Body types T2, T4 and T5 are
suitable for downstream dismantling and dead-end service with counterflange.
Connections to EN, ASME, JIS.
Applications
Shut-off and control duties in all industrial and energy sectors.
http://shop.ksb.com/catalog/k0/en/product/ES000379
Description
Centred-disc butterfly valve, sealed by elastomer liner, with manual gearbox; semi-
lug body (T2), full-lug body (T4). Body types T2 and T4 are suitable for downstream
dismantling and dead-end service with counterflange. Connections to EN, ASME or
JIS. Underwriter Laboratories (UL) approved.
Applications
Fire protection
http://shop.ksb.com/catalog/k0/en/product/ES000379
Description
Centred-disc butterfly valve, sealed by elastomer liner, with manual gearbox,
electric, hydraulic or counterweight actuator, U-section body with flat faces (T5),
connections to EN, ASME or JIS.
Applications
Water supply, water treatment, irrigation, drainage, desalination (reverse osmosis,
multi-stage flash), industry. Cooling circuits and fire protection. Shipbuilding, steel
industry and power stations (hydraulic, thermal, nuclear). Shut-off and control
duties in all industrial sectors.
http://shop.ksb.com/catalog/k0/en/product/ES000382
PN
DN
T [°C]
10/16
40 - 1000
≥ -10 - ≤ +200
PN
DN
T [°C]
20/25
32 - 1000
≥ -10 - ≤ +200
Not available for worldwide sale
Actuator/Automation
