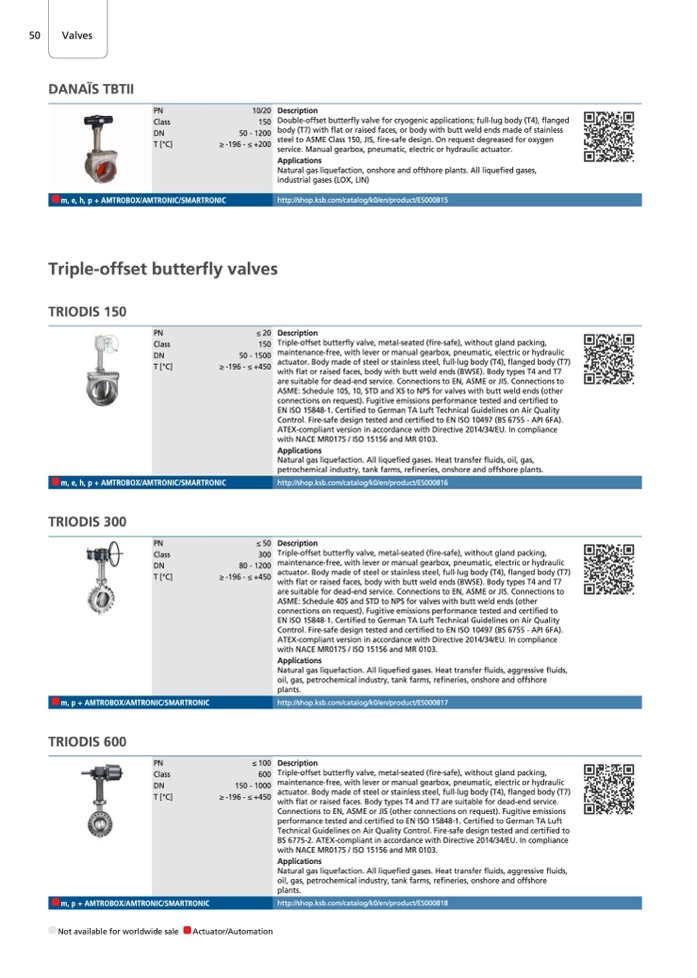

50
Valves
Valves
DANAÏS TBTII
m, e, h, p + AMTROBOX/AMTRONIC/SMARTRONIC
m, p + AMTROBOX/AMTRONIC/SMARTRONIC
TRIODIS 600
m, p + AMTROBOX/AMTRONIC/SMARTRONIC
PN
10/20
Class
150
Description
Double-offset butterfly valve for cryogenic applications; full-lug body (T4), flanged
body (T7) with flat or raised faces, or body with butt weld ends made of stainless
steel to ASME Class 150, JIS, fire-safe design. On request degreased for oxygen
service. Manual gearbox, pneumatic, electric or hydraulic actuator.
Applications
Natural gas liquefaction, onshore and offshore plants. All liquefied gases,
industrial gases (LOX, LIN)
http://shop.ksb.com/catalog/k0/en/product/ES000815
DN
T [°C]
50 - 1200
≥ -196 - ≤ +200
Triple-offset butterfly valves
TRIODIS 150
m, e, h, p + AMTROBOX/AMTRONIC/SMARTRONIC
TRIODIS 300
PN
≤ 20
Class
150
Description
Triple-offset butterfly valve, metal-seated (fire-safe), without gland packing,
maintenance-free, with lever or manual gearbox, pneumatic, electric or hydraulic
actuator. Body made of steel or stainless steel, full-lug body (T4), flanged body (T7)
with flat or raised faces, body with butt weld ends (BWSE). Body types T4 and T7
are suitable for dead-end service. Connections to EN, ASME or JIS. Connections to
ASME: Schedule 10S, 10, STD and XS to NPS for valves with butt weld ends (other
connections on request). Fugitive emissions performance tested and certified to
EN ISO 15848-1. Certified to German TA Luft Technical Guidelines on Air Quality
Control. Fire-safe design tested and certified to EN ISO 10497 (BS 6755 - API 6FA).
ATEX-compliant version in accordance with Directive 2014/34/EU. In compliance
with NACE MR0175 / ISO 15156 and MR 0103.
Applications
Natural gas liquefaction. All liquefied gases. Heat transfer fluids, oil, gas,
petrochemical industry, tank farms, refineries, onshore and offshore plants.
http://shop.ksb.com/catalog/k0/en/product/ES000816
Description
Triple-offset butterfly valve, metal-seated (fire-safe), without gland packing,
maintenance-free, with lever or manual gearbox, pneumatic, electric or hydraulic
actuator. Body made of steel or stainless steel, full-lug body (T4), flanged body (T7)
with flat or raised faces, body with butt weld ends (BWSE). Body types T4 and T7
are suitable for dead-end service. Connections to EN, ASME or JIS. Connections to
ASME: Schedule 40S and STD to NPS for valves with butt weld ends (other
connections on request). Fugitive emissions performance tested and certified to
EN ISO 15848-1. Certified to German TA Luft Technical Guidelines on Air Quality
Control. Fire-safe design tested and certified to EN ISO 10497 (BS 6755 - API 6FA).
ATEX-compliant version in accordance with Directive 2014/34/EU. In compliance
with NACE MR0175 / ISO 15156 and MR 0103.
Applications
Natural gas liquefaction. All liquefied gases. Heat transfer fluids, aggressive fluids,
oil, gas, petrochemical industry, tank farms, refineries, onshore and offshore
plants.
http://shop.ksb.com/catalog/k0/en/product/ES000817
Description
Triple-offset butterfly valve, metal-seated (fire-safe), without gland packing,
maintenance-free, with lever or manual gearbox, pneumatic, electric or hydraulic
actuator. Body made of steel or stainless steel, full-lug body (T4), flanged body (T7)
with flat or raised faces. Body types T4 and T7 are suitable for dead-end service.
Connections to EN, ASME or JIS (other connections on request). Fugitive emissions
performance tested and certified to EN ISO 15848-1. Certified to German TA Luft
Technical Guidelines on Air Quality Control. Fire-safe design tested and certified to
BS 6775-2. ATEX-compliant in accordance with Directive 2014/34/EU. In compliance
with NACE MR0175 / ISO 15156 and MR 0103.
Applications
Natural gas liquefaction. All liquefied gases. Heat transfer fluids, aggressive fluids,
oil, gas, petrochemical industry, tank farms, refineries, onshore and offshore
plants.
http://shop.ksb.com/catalog/k0/en/product/ES000818
DN
T [°C]
50 - 1500
≥ -196 - ≤ +450
PN
Class
300
DN
T [°C]
80 - 1200
≥ -196 - ≤ +450
PN
Class
600
DN
T [°C]
150 - 1000
≥ -196 - ≤ +450
Not available for worldwide sale
Actuator/Automation
≤ 50
≤ 100
