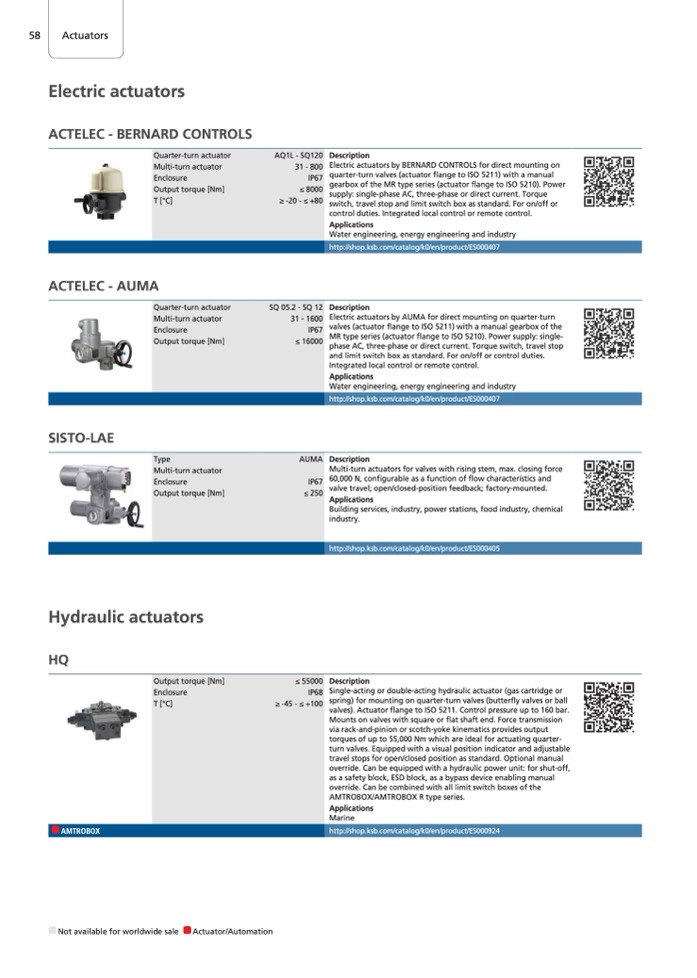

Actuators
Actuators
Electric actuators
ACTELEC - BERNARD CONTROLS
Quarter-turn actuator
Multi-turn actuator
Enclosure
IP67
Output torque [Nm]
T [°C]
ACTELEC - AUMA
SISTO-LAE
Hydraulic actuators
HQ
AMTROBOX
Not available for worldwide sale
Actuator/Automation
≤ 8000
≥ -20 - ≤ +80
Quarter-turn actuator
Multi-turn actuator
Enclosure
IP67
Output torque [Nm]
Type
Multi-turn actuator
Enclosure
IP67
Output torque [Nm]
≤ 250
Output torque [Nm]
Enclosure
IP68
T [°C]
AQ1L - SQ120
31 - 800
Description
Electric actuators by BERNARD CONTROLS for direct mounting on
quarter‐turn valves (actuator flange to ISO 5211) with a manual
gearbox of the MR type series (actuator flange to ISO 5210). Power
supply: single-phase AC, three-phase or direct current. Torque
switch, travel stop and limit switch box as standard. For on/off or
control duties. Integrated local control or remote control.
Applications
Water engineering, energy engineering and industry
http://shop.ksb.com/catalog/k0/en/product/ES000407
Description
Electric actuators by AUMA for direct mounting on quarter‐turn
valves (actuator flange to ISO 5211) with a manual gearbox of the
MR type series (actuator flange to ISO 5210). Power supply: single-
phase AC, three-phase or direct current. Torque switch, travel stop
and limit switch box as standard. For on/off or control duties.
Integrated local control or remote control.
Applications
Water engineering, energy engineering and industry
http://shop.ksb.com/catalog/k0/en/product/ES000407
Description
Multi-turn actuators for valves with rising stem, max. closing force
60,000 N, configurable as a function of flow characteristics and
valve travel; open/closed-position feedback; factory-mounted.
Applications
Building services, industry, power stations, food industry, chemical
industry.
http://shop.ksb.com/catalog/k0/en/product/ES000405
Description
Single-acting or double-acting hydraulic actuator (gas cartridge or
spring) for mounting on quarter-turn valves (butterfly valves or ball
valves). Actuator flange to ISO 5211. Control pressure up to 160 bar.
Mounts on valves with square or flat shaft end. Force transmission
via rack-and-pinion or scotch-yoke kinematics provides output
torques of up to 55,000 Nm which are ideal for actuating quarter-
turn valves. Equipped with a visual position indicator and adjustable
travel stops for open/closed position as standard. Optional manual
override. Can be equipped with a hydraulic power unit: for shut-off,
as a safety block, ESD block, as a bypass device enabling manual
override. Can be combined with all limit switch boxes of the
AMTROBOX/AMTROBOX R type series.
Applications
Marine
http://shop.ksb.com/catalog/k0/en/product/ES000924
SQ 05.2 - SQ 12
31 - 1600
≤ 16000
≤ 55000
≥ -45 - ≤ +100
AUMA
