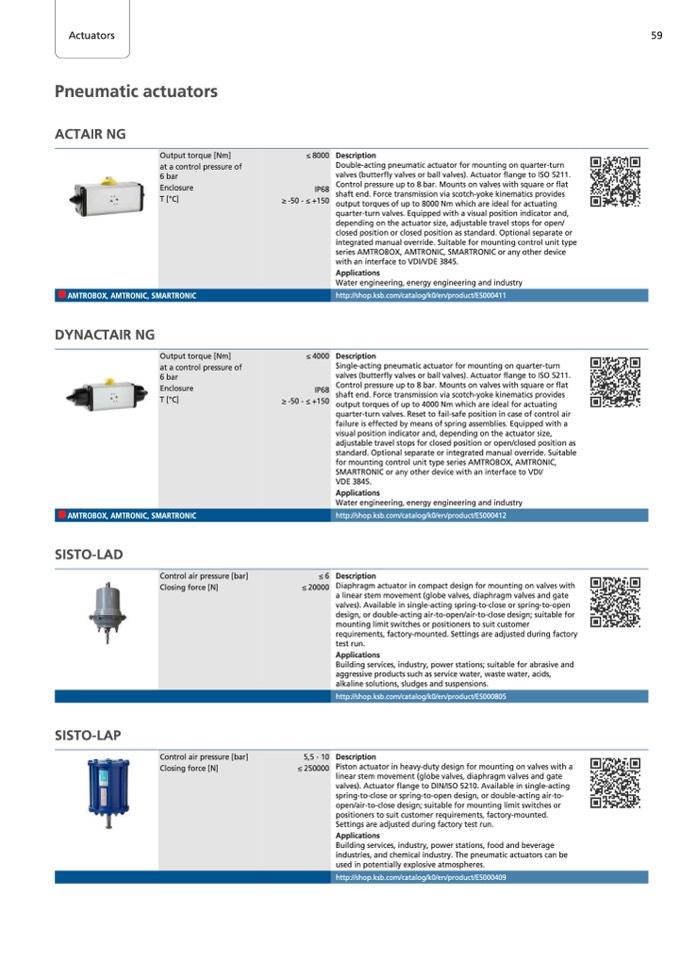

Pneumatic actuators
ACTAIR NG
Output torque [Nm]
at a control pressure of
6 bar
Enclosure
T [°C]
AMTROBOX, AMTRONIC, SMARTRONIC
DYNACTAIR NG
Output torque [Nm]
at a control pressure of
6 bar
Enclosure
T [°C]
AMTROBOX, AMTRONIC, SMARTRONIC
59
SISTO-LAD
SISTO-LAP
Control air pressure [bar]
Closing force [N]
≤ 6
≤ 20000
Control air pressure [bar]
Closing force [N]
5,5 - 10
≤ 250000
≤ 8000
IP68
≥ -50 - ≤ +150
Description
Double-acting pneumatic actuator for mounting on quarter-turn
valves (butterfly valves or ball valves). Actuator flange to ISO 5211.
Control pressure up to 8 bar. Mounts on valves with square or flat
shaft end. Force transmission via scotch-yoke kinematics provides
output torques of up to 8000 Nm which are ideal for actuating
quarter-turn valves. Equipped with a visual position indicator and,
depending on the actuator size, adjustable travel stops for open/
closed position or closed position as standard. Optional separate or
integrated manual override. Suitable for mounting control unit type
series AMTROBOX, AMTRONIC, SMARTRONIC or any other device
with an interface to VDI/VDE 3845.
Applications
Water engineering, energy engineering and industry
http://shop.ksb.com/catalog/k0/en/product/ES000411
Description
Single-acting pneumatic actuator for mounting on quarter-turn
valves (butterfly valves or ball valves). Actuator flange to ISO 5211.
Control pressure up to 8 bar. Mounts on valves with square or flat
shaft end. Force transmission via scotch-yoke kinematics provides
output torques of up to 4000 Nm which are ideal for actuating
quarter-turn valves. Reset to fail-safe position in case of control air
failure is effected by means of spring assemblies. Equipped with a
visual position indicator and, depending on the actuator size,
adjustable travel stops for closed position or open/closed position as
standard. Optional separate or integrated manual override. Suitable
for mounting control unit type series AMTROBOX, AMTRONIC,
SMARTRONIC or any other device with an interface to VDI/
VDE 3845.
Applications
Water engineering, energy engineering and industry
http://shop.ksb.com/catalog/k0/en/product/ES000412
Description
Diaphragm actuator in compact design for mounting on valves with
a linear stem movement (globe valves, diaphragm valves and gate
valves). Available in single-acting spring-to-close or spring-to-open
design, or double-acting air-to-open/air-to-close design; suitable for
mounting limit switches or positioners to suit customer
requirements, factory-mounted. Settings are adjusted during factory
test run.
Applications
Building services, industry, power stations; suitable for abrasive and
aggressive products such as service water, waste water, acids,
alkaline solutions, sludges and suspensions.
http://shop.ksb.com/catalog/k0/en/product/ES000805
Description
Piston actuator in heavy-duty design for mounting on valves with a
linear stem movement (globe valves, diaphragm valves and gate
valves). Actuator flange to DIN/ISO 5210. Available in single-acting
spring-to-close or spring-to-open design, or double-acting air-to-
open/air-to-close design; suitable for mounting limit switches or
positioners to suit customer requirements, factory-mounted.
Settings are adjusted during factory test run.
Applications
Building services, industry, power stations, food and beverage
industries, and chemical industry. The pneumatic actuators can be
used in potentially explosive atmospheres.
http://shop.ksb.com/catalog/k0/en/product/ES000409
≤ 4000
IP68
≥ -50 - ≤ +150
