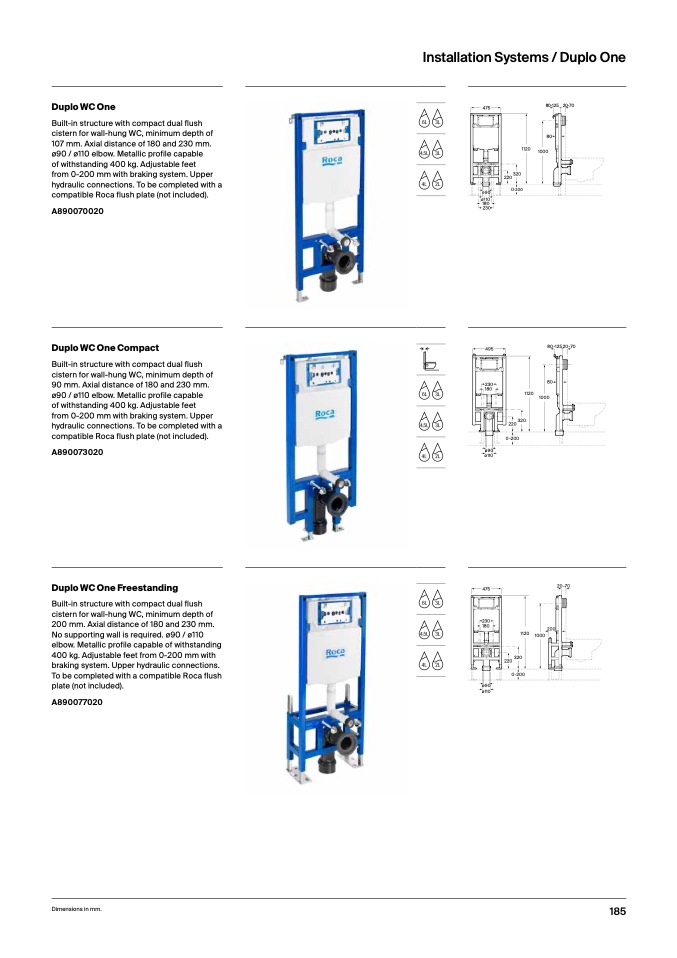

Installation Systems / Duplo On
e
Duplo WC One
Built-in structure with compact dual flush
cistern for wall-hung WC, minimum depth of
107 mm. Axial distance of 180 and 230 mm
.
ø90 / ø110 elbow. Metallic profile capabl
e
of withstanding 400 kg. Adjustable fee
t
from 0-200 mm with braking system. Uppe
r
hydraulic connections. To be completed with
a
compatible Roca flush plate (not included).
A890070020
8
0-12
5
20-7
0
47
5
80
112
0
1000
220 320
0-20
0
ø9
0
ø1 1
0
180
230
Duplo WC One Compac
t
Built-in structure with compact dual flush
cistern for wall-hung WC, minimum depth of
90 mm. Axial distance of 180 and 230 mm.
ø90 / ø110 elbow. Metallic profile capabl
e
of withstanding 400 kg. Adjustable fee
t
from 0-200 mm with braking system. Uppe
r
hydraulic connections. To be completed with
a
compatible Roca flush plate (not included).
A89007302
0
80 -125 20-70
495
230
18
0
80
112
0
100
0
320
22
0
0-20
0
ø90
ø110
Duplo WC One Freestandin
g
Built-in structure with compact dual flush
cistern for wall-hung WC, minimum depth of
200 mm. Axial distance of 180 and 230 mm.
No supporting wall is required. ø90 / ø11
0
elbow. Metallic profile capable of withstanding
400 kg. Adjustable feet from 0-200 mm wit
h
braking system. Upper hydraulic connections
.
To be completed with a compatible Roca flus
h
plate (not included)
.
A89007702
0
20-7
0
47
5
230
18
0
200
1120
1000
220 32
0
0-20
0
ø90
ø11
0
Dimensions in mm.
185
