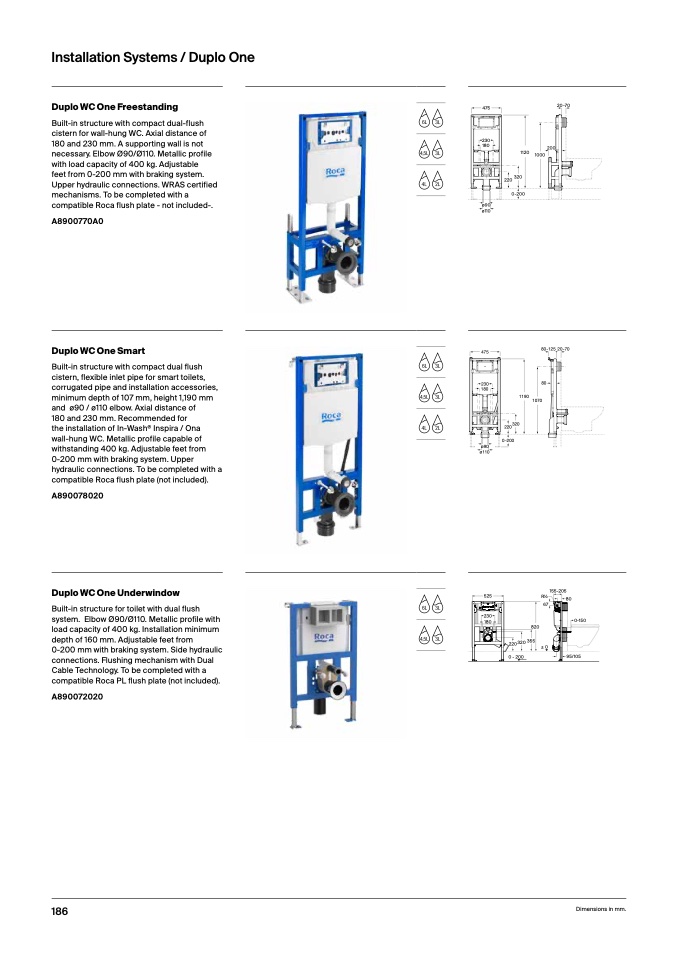

Installation Systems / Duplo On

e

Duplo WC One Freestandin

g

Built-in structure with compact dual-flush

cistern for wall-hung WC. Axial distance of

180 and 230 mm. A supporting wall is not

necessary. Elbow Ø90/Ø110. Metallic profil

e

with load capacity of 400 kg. Adjustable

feet from 0-200 mm with braking system.

Upper hydraulic connections. WRAS certifie

d

mechanisms. To be completed with a

compatible Roca flush plate - not included-

.

A8900770A

0

47

5

230

18

0

ø90

ø11

0

Duplo WC One Smar

t

Built-in structure with compact dual flush

cistern, flexible inlet pipe for smart toilets

,

corrugated pipe and installation accessories,

minimum depth of 107 mm, height 1,190 m

m

and ø90 / ø110 elbow. Axial distance of

180 and 230 mm. Recommended fo

r

the installation of In-Wash® Inspira / Ona

wall-hung WC. Metallic profile capable o

f

withstanding 400 kg. Adjustable feet fro

m

0-200 mm with braking system. Upper

hydraulic connections. To be completed with a

compatible Roca flush plate (not included).

A89007802

0

47

5

23

0

18

0

ø9

0

ø110

Duplo WC One Underwindow

Built-in structure for toilet with dual flus

h

system. Elbow Ø90/Ø110. Metallic profile wit

h

load capacity of 400 kg. Installation minimum

depth of 160 mm. Adjustable feet fro

m

0-200 mm with braking system. Side hydraulic

connections. Flushing mechanism with Dual

Cable Technology. To be completed with a

compatible Roca PL flush plate (not included).

A890072020

525

230

180

18

6

20-7

0

200

1120

1000

220 32

0

0-20

0

80-12

5 20-70

8

0

1190

107

0

22032

0

0-20

0

155-205

R½

6

7

80

0-15

0

820

220 32

0 355

± 0

0 - 20

0

95/105

Dimensions in mm.
