Pumps
Pumps

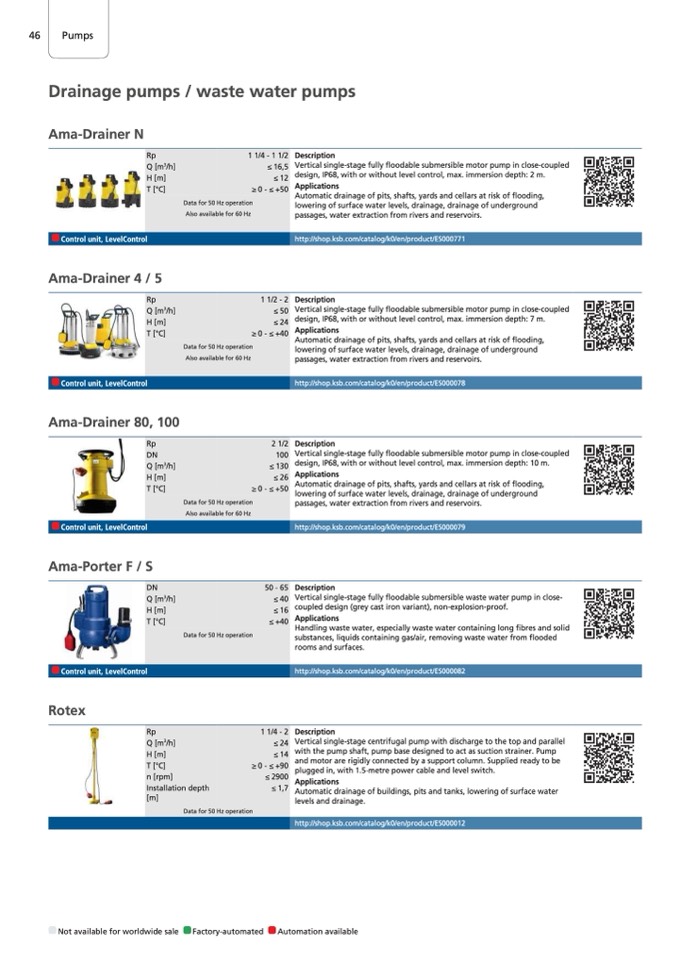

Drainage pumps / waste water pumps
Ama-Drainer N
Rp
Q [m
3
/h]
H [m]
T [°C]
Control unit, LevelControl
Ama-Drainer 4 / 5
Rp
Q [m
3
/h]
H [m]
T [°C]
Control unit, LevelControl
Ama-Drainer 80, 100
1 1/4 - 1 1/2
≤ 16,5
≤ 12
≥ 0 - ≤ +50
Data for 50 Hz operation
Also available for 60 Hz
1 1/2 - 2
≤ 50
≤ 24
≥ 0 - ≤ +40
Data for 50 Hz operation
Also available for 60 Hz
Description
Vertical single-stage fully floodable submersible motor pump in close-coupled
design, IP68, with or without level control, max. immersion depth: 2 m.
Applications
Automatic drainage of pits, shafts, yards and cellars at risk of flooding,
lowering of surface water levels, drainage, drainage of underground
passages, water extraction from rivers and reservoirs.
http://shop.ksb.com/catalog/k0/en/product/ES000771
Description
Vertical single-stage fully floodable submersible motor pump in close-coupled
design, IP68, with or without level control, max. immersion depth: 7 m.
Applications
Automatic drainage of pits, shafts, yards and cellars at risk of flooding,
lowering of surface water levels, drainage, drainage of underground
passages, water extraction from rivers and reservoirs.
http://shop.ksb.com/catalog/k0/en/product/ES000078
Description
Vertical single-stage fully floodable submersible motor pump in close-coupled
design, IP68, with or without level control, max. immersion depth: 10 m.
Applications
Automatic drainage of pits, shafts, yards and cellars at risk of flooding,
lowering of surface water levels, drainage, drainage of underground
passages, water extraction from rivers and reservoirs.
http://shop.ksb.com/catalog/k0/en/product/ES000079
Description
Vertical single-stage fully floodable submersible waste water pump in close-
coupled design (grey cast iron variant), non-explosion-proof.
Applications
Handling waste water, especially waste water containing long fibres and solid
substances, liquids containing gas/air, removing waste water from flooded
rooms and surfaces.
http://shop.ksb.com/catalog/k0/en/product/ES000082
Description
Vertical single-stage centrifugal pump with discharge to the top and parallel
with the pump shaft, pump base designed to act as suction strainer. Pump
and motor are rigidly connected by a support column. Supplied ready to be
plugged in, with 1.5-metre power cable and level switch.
Applications
Automatic drainage of buildings, pits and tanks, lowering of surface water
levels and drainage.
http://shop.ksb.com/catalog/k0/en/product/ES000012
Q [m
3
/h]
H [m]
T [°C]
Control unit, LevelControl
Ama-Porter F / S
DN
Q [m
3
/h]
H [m]
T [°C]
Control unit, LevelControl
Rotex
≤ 130
≤ 26
≥ 0 - ≤ +50
Rp
DN
100
Rp
Q [m
3
/h]
H [m]
T [°C]
n [rpm]
Installation depth
[m]
1 1/4 - 2
≤ 24
≤ 14
≥ 0 - ≤ +90
≤ 2900
≤ 1,7
Not available for worldwide sale
Factory-automated
Automation available
Data for 50 Hz operation
Also available for 60 Hz
Data for 50 Hz operation
50 - 65
≤ 40
≤ 16
≤ +40
Data for 50 Hz operation
2 1/2
