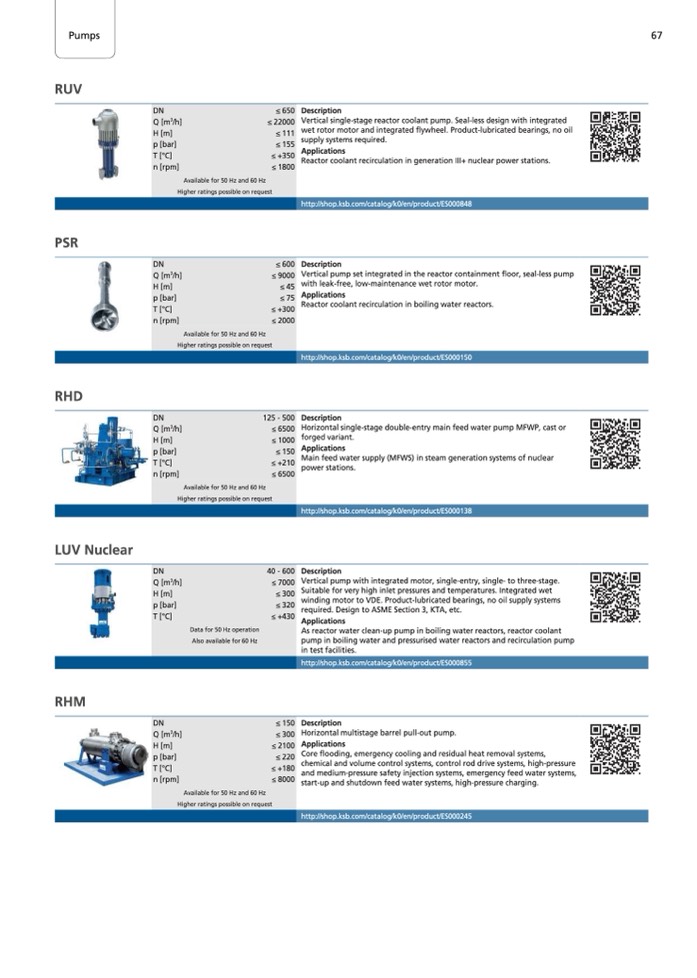

Pumps

Pumps

RUV

PSR

RHD

LUV Nuclear

RHM

67

DN

Q [m

3

/h]

H [m]

p [bar]

T [°C]

n [rpm]

≤ 650

≤ 22000

≤ 111

≤ 155

≤ +350

≤ 1800

Description

Vertical single-stage reactor coolant pump. Seal-less design with integrated

wet rotor motor and integrated flywheel. Product-lubricated bearings, no oil

supply systems required.

Applications

Reactor coolant recirculation in generation III+ nuclear power stations.

http://shop.ksb.com/catalog/k0/en/product/ES000848

Description

Vertical pump set integrated in the reactor containment floor, seal-less pump

with leak-free, low-maintenance wet rotor motor.

Applications

Reactor coolant recirculation in boiling water reactors.

http://shop.ksb.com/catalog/k0/en/product/ES000150

Description

Horizontal single-stage double-entry main feed water pump MFWP, cast or

forged variant.

Applications

Main feed water supply (MFWS) in steam generation systems of nuclear

power stations.

http://shop.ksb.com/catalog/k0/en/product/ES000138

Description

Vertical pump with integrated motor, single-entry, single- to three-stage.

Suitable for very high inlet pressures and temperatures. Integrated wet

winding motor to VDE. Product-lubricated bearings, no oil supply systems

required. Design to ASME Section 3, KTA, etc.

Applications

As reactor water clean-up pump in boiling water reactors, reactor coolant

pump in boiling water and pressurised water reactors and recirculation pump

in test facilities.

http://shop.ksb.com/catalog/k0/en/product/ES000855

Description

Horizontal multistage barrel pull-out pump.

Applications

Core flooding, emergency cooling and residual heat removal systems,

chemical and volume control systems, control rod drive systems, high-pressure

and medium-pressure safety injection systems, emergency feed water systems,

start-up and shutdown feed water systems, high-pressure charging.

http://shop.ksb.com/catalog/k0/en/product/ES000245

DN

Q [m

3

/h]

H [m]

p [bar]

T [°C]

n [rpm]

≤ 600

≤ 9000

≤ 45

≤ 75

≤ +300

≤ 2000

DN

Q [m

3

/h]

H [m]

p [bar]

T [°C]

n [rpm]

125 - 500

≤ 6500

≤ 1000

≤ 150

≤ +210

≤ 6500

DN

Q [m

3

/h]

H [m]

p [bar]

T [°C]

DN

Q [m

3

/h]

H [m]

p [bar]

T [°C]

n [rpm]

Data for 50 Hz operation

Also available for 60 Hz

40 - 600

≤ 7000

≤ 300

≤ 320

≤ +430

≤ 150

≤ 300

≤ 2100

≤ 220

≤ +180

≤ 8000

Available for 50 Hz and 60 Hz

Higher ratings possible on request

Available for 50 Hz and 60 Hz

Higher ratings possible on request

Available for 50 Hz and 60 Hz

Higher ratings possible on request

Available for 50 Hz and 60 Hz

Higher ratings possible on request
