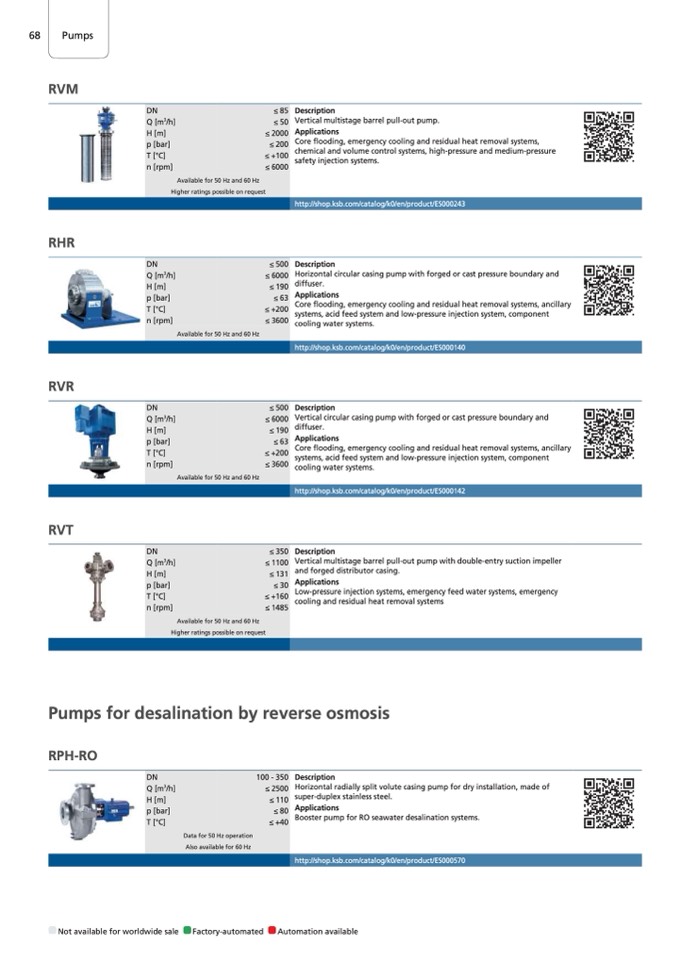

68
Pumps
Pumps
RVM
RHR
RVR
RVT
Not available for worldwide sale
Factory-automated
Automation available
DN
Q [m
3
/h]
H [m]
p [bar]
T [°C]
n [rpm]
≤ 85
≤ 50
≤ 2000
≤ 200
≤ +100
≤ 6000
Description
Vertical multistage barrel pull-out pump.
Applications
Core flooding, emergency cooling and residual heat removal systems,
chemical and volume control systems, high-pressure and medium-pressure
safety injection systems.
http://shop.ksb.com/catalog/k0/en/product/ES000243
Description
Horizontal circular casing pump with forged or cast pressure boundary and
diffuser.
Applications
Core flooding, emergency cooling and residual heat removal systems, ancillary
systems, acid feed system and low-pressure injection system, component
cooling water systems.
http://shop.ksb.com/catalog/k0/en/product/ES000140
Description
Vertical circular casing pump with forged or cast pressure boundary and
diffuser.
Applications
Core flooding, emergency cooling and residual heat removal systems, ancillary
systems, acid feed system and low-pressure injection system, component
cooling water systems.
http://shop.ksb.com/catalog/k0/en/product/ES000142
Description
Vertical multistage barrel pull-out pump with double-entry suction impeller
and forged distributor casing.
Applications
Low-pressure injection systems, emergency feed water systems, emergency
cooling and residual heat removal systems
DN
Q [m
3
/h]
H [m]
p [bar]
T [°C]
n [rpm]
DN
Q [m
3
/h]
H [m]
p [bar]
T [°C]
n [rpm]
DN
Q [m
3
/h]
H [m]
p [bar]
T [°C]
n [rpm]
Available for 50 Hz and 60 Hz
Available for 50 Hz and 60 Hz
≤ 500
≤ 6000
≤ 190
≤ 63
≤ +200
≤ 3600
≤ 500
≤ 6000
≤ 190
≤ 63
≤ +200
≤ 3600
≤ 350
≤ 1100
≤ 131
≤ 30
≤ +160
≤ 1485
DN
Q [m
3
/h]
H [m]
p [bar]
T [°C]
100 - 350
≤ 2500
≤ 110
≤ 80
≤ +40
Description
Horizontal radially split volute casing pump for dry installation, made of
super-duplex stainless steel.
Applications
Booster pump for RO seawater desalination systems.
http://shop.ksb.com/catalog/k0/en/product/ES000570
Available for 50 Hz and 60 Hz
Higher ratings possible on request
Available for 50 Hz and 60 Hz
Higher ratings possible on request
Pumps for desalination by reverse osmosis
RPH-RO
Data for 50 Hz operation
Also available for 60 Hz
