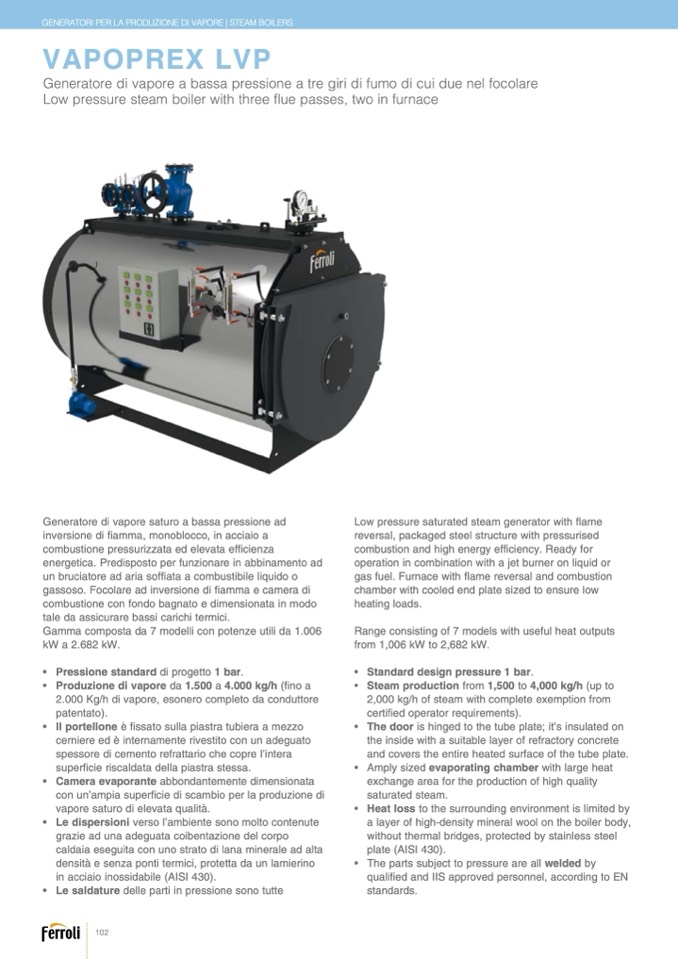

GENERATORI PER LA PRODUZIONE DI VAPORE | STEAM BOILERS

VAPOPREX LVP

Generatore di vapore a bassa pressione a tre giri di fumo di cui due nel focolare

Low pressure steam boiler with three flue passes, two in furnace

Generatore di vapore saturo a bassa pressione ad

inversione di fiamma, monoblocco, in acciaio a

combustione pressurizzata ed elevata efficienza

energetica. Predisposto per funzionare in abbinamento ad

un bruciatore ad aria soffiata a combustibile liquido o

gassoso. Focolare ad inversione di

fiamma e camera di

combustione con fondo bagnato e dimensionata in modo

tale da assicurare bassi carichi termici.

Gamma composta da 7 modelli con potenze utili da 1.006

kW a 2.682 kW.

• Pressione standard di progetto 1 bar.

• Produzione di vapore da 1.500 a 4.000 kg/h (fino a

2.000 Kg/h di vapore, esonero completo da conduttore

patentato).

• Il portellone è

fissato sulla piastra tubiera a mezzo

cerniere ed

è internamente rivestito con un adeguato

spessore di cemento refrattario che copre l’intera

superficie riscaldata della piastra stessa.

• Camera evaporante abbondantemente dimensionata

con un’ampia superficie di scambio per la produzione di

vapore saturo di elevata qualit

à.

• Le dispersioni verso l’ambiente sono molto contenute

grazie ad una adeguata coibentazione del corpo

caldaia eseguita con uno strato di lana minerale ad alta

densit

à e senza ponti termici, protetta da un lamierino

in acciaio inossidabile (AISI 430).

• Le saldature delle parti in pressione sono tutte

102

Low pressure saturated steam generator with

flame

reversal, packaged steel structure with pressurised

combustion and high energy efficiency. Ready for

operation in combination with a jet burner on liquid or

gas fuel. Furnace with flame reversal and combustion

chamber with cooled end plate sized to ensure low

heating loads.

Range consisting of 7 models with useful heat outputs

from 1,006 kW to 2,682 kW.

• Standard design pressure 1 bar.

• Steam production from 1,500 to 4,000 kg/h (up to

2,000 kg/h of steam with complete exemption from

certi

fied operator requirements).

• The door is hinged to the tube plate; it’s insulated on

the inside with a suitable layer of refractory concrete

and covers the entire heated surface of the tube plate.

• Amply sized evaporating chamber with large heat

exchange area for the production of high quality

saturated steam.

• Heat loss to the surrounding environment is limited by

a layer of high-density mineral wool on the boiler body,

without thermal bridges, protected by stainless steel

plate (AISI 430).

• The parts subject to pressure are all welded by

qualified and IIS approved personnel, according to EN

standards.
