• Di moderna concezione e ad alto rendimento, questi

generatori sono progettati e realizzati nel rispetto

della Direttiva Europea 2014/68/UE (PED) e delle

pi

ù recenti norme nazionali ed europee in materia di

recipienti a pressione.

• L’ispezionabilità lato acqua

è garantita da un passo

uomo sul colmo caldaia e un passo mano nella parte

inferiore.

• Mantellatura in acciaio inox (AISI 430)

CERTIFICAZIONI

Marcatura CE secondo le Direttive

Apparecchi a pressione (2014/68/UE)

Bassa Tensione (2014/35/UE)

Compatibilit

à Elettromagnetica (2014/30/UE)

European Directive 2014/68/UE (PED) and the most

recent national and European standards on pressurised

recipients.

• The water circuit can be inspected through a manhole

at the top of the boiler and a hand opening ring at the

bottom.

• AISI 430 stainless steel casing.

CERTIFICATION

CE mark in accordance with the following directives

Pressure Equipment (2014/68/UE)

Low Voltage (2014/35/UE)

Electromagnetic Compatibility (2014/30/UE)

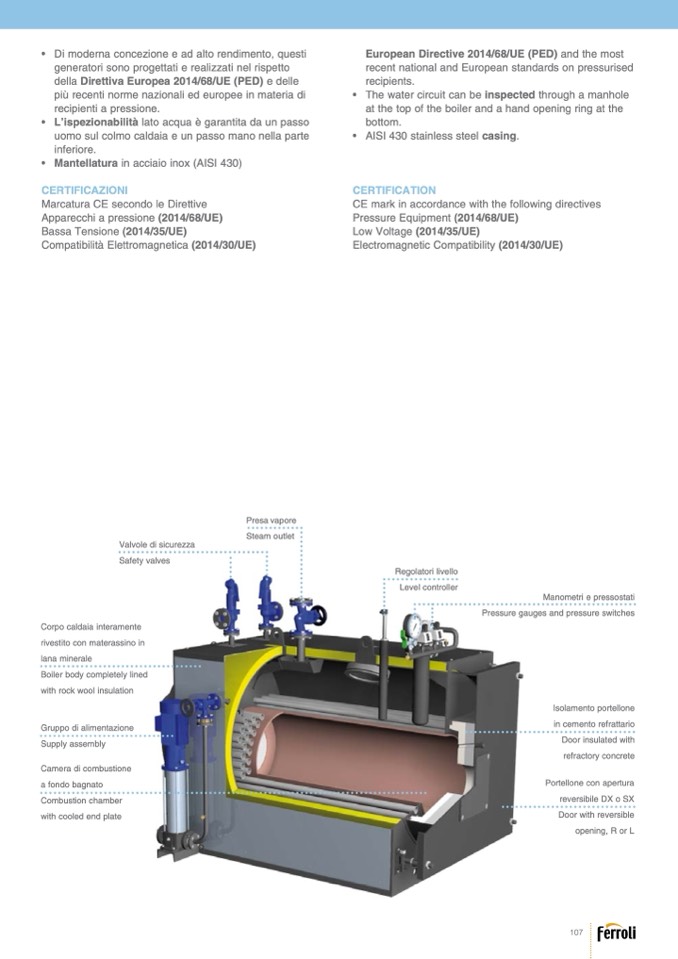

Valvole di sicurezza

Safety valves

Corpo caldaia interamente

rivestito con materassino in

lana minerale

Boiler body completely lined

with rock wool insulation

Gruppo di alimentazione

Supply assembly

Camera di combustione

a fondo bagnato

Combustion chamber

with cooled end plate

Presa vapore

Steam outlet

Regolatori livello

Level controller

Manometri e pressostati

Pressure gauges and pressure switches

Isolamento portellone

in cemento refrattario

Door insulated with

refractory concrete

Portellone con apertura

reversibile DX o SX

Door with reversible

opening, R or L
