GENERATORI PER LA PRODUZIONE DI VAPORE | STEAM BOILERS

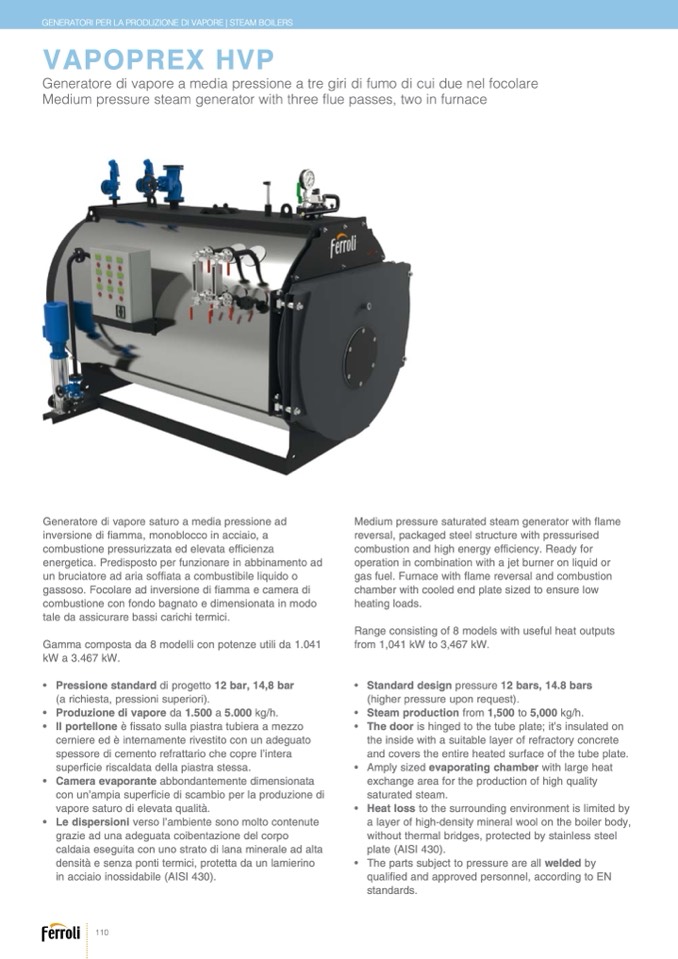

VAPOPREX HVP

Generatore di vapore a media pressione a tre giri di fumo di cui due nel focolare

Medium pressure steam generator with three flue passes, two in furnace

Generatore di vapore saturo a media pressione ad

inversione di fiamma, monoblocco in acciaio, a

combustione pressurizzata ed elevata efficienza

energetica. Predisposto per funzionare in abbinamento ad

un bruciatore ad aria soffiata a combustibile liquido o

gassoso. Focolare ad inversione di

fiamma e camera di

combustione con fondo bagnato e dimensionata in modo

tale da assicurare bassi carichi termici.

Gamma composta da 8 modelli con potenze utili da 1.041

kW a 3.467 kW.

• Pressione standard di progetto 12 bar, 14,8 bar

(a richiesta, pressioni superiori).

• Produzione di vapore da 1.500 a 5.000 kg/h.

• Il portellone è

fissato sulla piastra tubiera a mezzo

cerniere ed

è internamente rivestito con un adeguato

spessore di cemento refrattario che copre l’intera

superficie riscaldata della piastra stessa.

• Camera evaporante abbondantemente dimensionata

con un’ampia superficie di scambio per la produzione di

vapore saturo di elevata qualit

à.

• Le dispersioni verso l’ambiente sono molto contenute

grazie ad una adeguata coibentazione del corpo

caldaia eseguita con uno strato di lana minerale ad alta

densit

à e senza ponti termici, protetta da un lamierino

in acciaio inossidabile (AISI 430).

Medium pressure saturated steam generator with flame

reversal, packaged steel structure with pressurised

combustion and high energy efficiency. Ready for

operation in combination with a jet burner on liquid or

gas fuel. Furnace with flame reversal and combustion

chamber with cooled end plate sized to ensure low

heating loads.

Range consisting of 8 models with useful heat outputs

from 1,041 kW to 3,467 kW.

• Standard design pressure 12 bars, 14.8 bars

(higher pressure upon request).

• Steam production from 1,500 to 5,000 kg/h.

• The door is hinged to the tube plate; it’s insulated on

the inside with a suitable layer of refractory concrete

and covers the entire heated surface of the tube plate.

• Amply sized evaporating chamber with large heat

exchange area for the production of high quality

saturated steam.

• Heat loss to the surrounding environment is limited by

a layer of high-density mineral wool on the boiler body,

without thermal bridges, protected by stainless steel

plate (AISI 430).

• The parts subject to pressure are all welded by

qualified and approved personnel, according to EN

standards.
