• Le saldature delle parti in pressione sono tutte

eseguite da personale quali

ficato ed approvato

secondo norme EN.

• Di moderna concezione e ad alto rendimento, questi

generatori sono progettati e realizzati nel rispetto

della Direttiva Europea 2014/68/UE (PED) e delle

pi

ù recenti norme nazionali ed europee in materia di

recipienti a pressione.

• Certificazione come insieme secondo Direttiva PED.

• L’ispezionabilità lato acqua

è garantita da un passo

uomo sul colmo caldaia e un passo mano nella parte

• These modern-concept and high-efficiency generators

have been designed and developed in compliance with

European Directive 2014/68/UE (PED) and the most

recent national and European standards on pressurised

recipients.

• Certi

fied as an assembly in accordance with the PED

Directive.

• The water circuit can be inspected through a manhole

at the top of the boiler and a hand opening ring at the

bottom.

CERTIFICATION

CE mark in accordance with the following directives

Pressure Equipment (2014/68/UE)

Low Voltage (2014/35/UE)

Electromagnetic Compatibility (2014/30/UE)

inferiore.

CERTIFICAZIONI

Marcatura CE secondo le Direttive

Apparecchi a pressione (2014/68/UE)

Bassa Tensione (2014/35/UE)

Compatibilità Elettromagnetica (2014/30/UE)

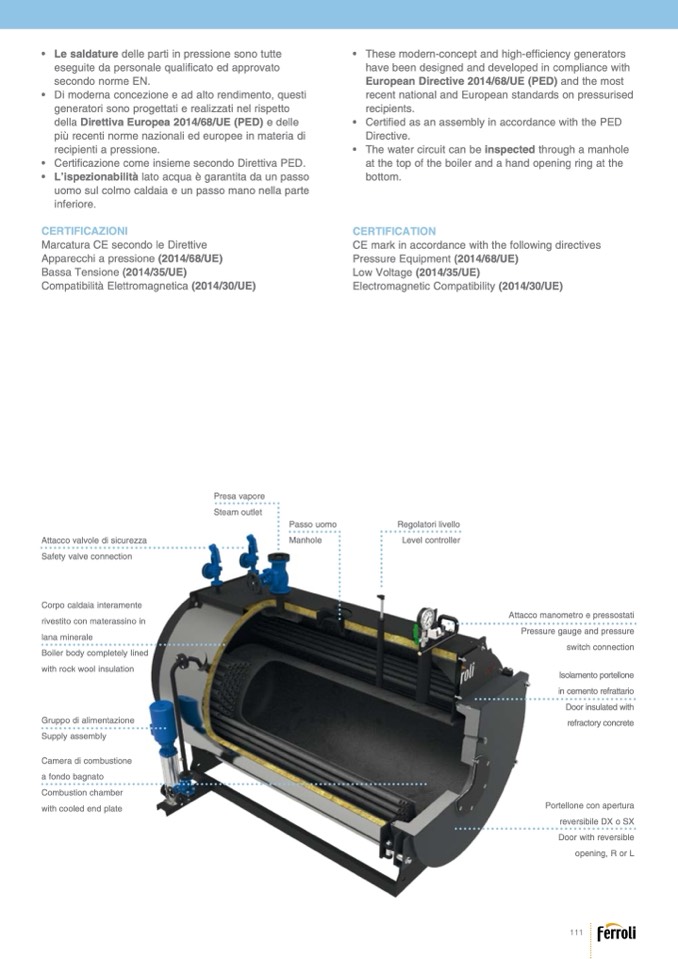

Presa vapore

Steam outlet

Attacco valvole di sicurezza

Safety valve connection

Corpo caldaia interamente

rivestito con materassino in

lana minerale

Boiler body completely lined

with rock wool insulation

Gruppo di alimentazione

Supply assembly

Camera di combustione

a fondo bagnato

Combustion chamber

with cooled end plate

Passo uomo

Manhole

Regolatori livello

Level controller

Attacco manometro e pressostati

Pressure gauge and pressure

switch connection

Isolamento portellone

in cemento refrattario

Door insulated with

refractory concrete

Portellone con apertura

reversibile DX o SX

Door with reversible

opening, R or L
