generatori sono progettati e realizzati nel rispetto

della Direttiva Europea 2014/68/UE (PED) e delle

pi

ù recenti norme nazionali ed europee in materia di

recipienti a pressione.

• L’ispezionabilità lato acqua

è garantita da passi uomo

e passa testa ovali sul lato acqua.

CERTIFICAZIONI

Marcatura CE secondo le Direttive

Apparecchi a pressione (2014/68/UE)

Bassa Tensione (2014/35/UE)

Compatibilit

à Elettromagnetica (2014/30/UE)

have been designed and developed in compliance with

European directive 2014/68/UE (PED) and the most

recent national and European standards on pressurised

recipients.

• The water circuit can be inspected through oval-

shaped manholes hand head holes.

CERTIFICATION

CE mark in accordance with the following directives

Pressure Equipment (2014/68/UE)

Low Voltage (2014/35/UE)

Electromagnetic Compatibility (2014/30/UE)

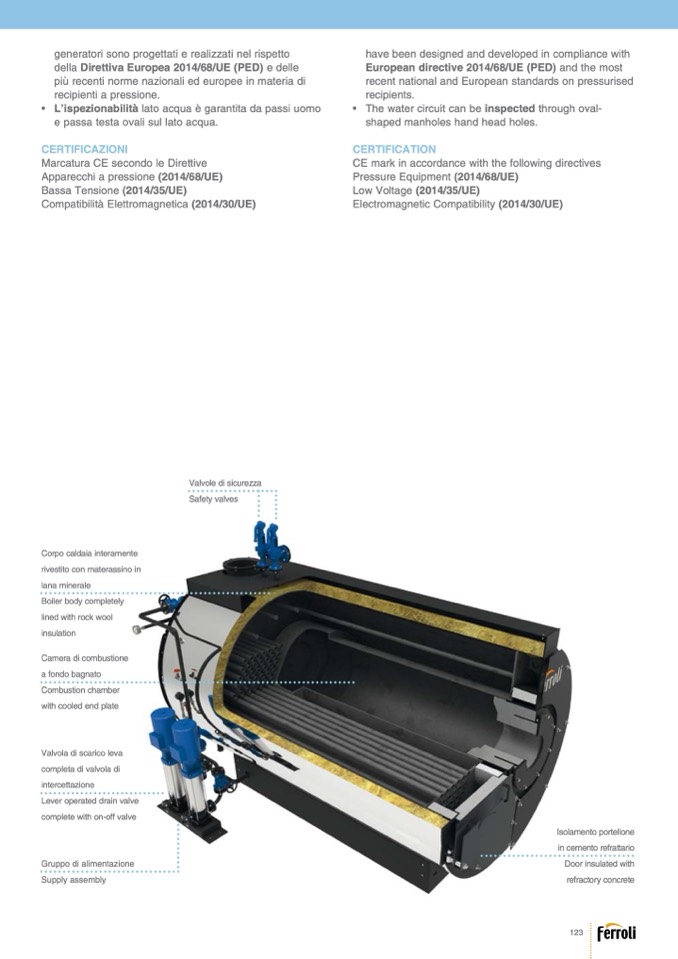

Valvole di sicurezza

Safety valves

Corpo caldaia interamente

rivestito con materassino in

lana minerale

Boiler body completely

lined with rock wool

insulation

Camera di combustione

a fondo bagnato

Combustion chamber

with cooled end plate

Valvola di scarico leva

completa di valvola di

intercettazione

Lever operated drain valve

complete with on-off valve

Gruppo di alimentazione

Supply assembly

Isolamento portellone

in cemento refrattario

Door insulated with

refractory concrete
