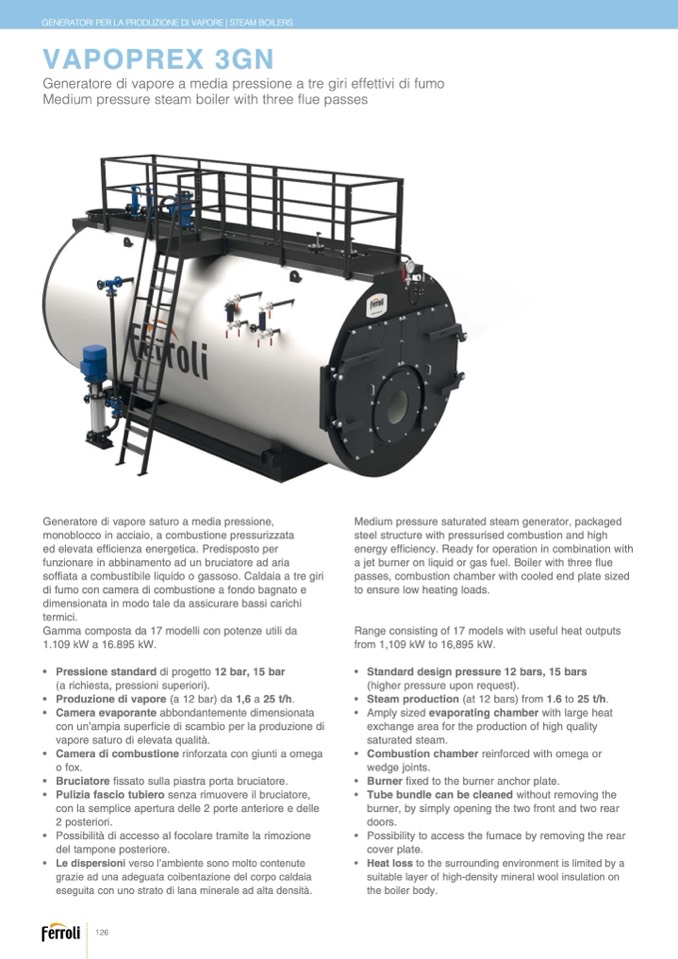

GENERATORI PER LA PRODUZIONE DI VAPORE | STEAM BOILERS

VAPOPREX 3GN

Generatore di vapore a media pressione a tre giri effettivi di fumo

Medium pressure steam boiler with three flue passes

Generatore di vapore saturo a media pressione,

monoblocco in acciaio, a combustione pressurizzata

ed elevata efficienza energetica. Predisposto per

funzionare in abbinamento ad un bruciatore ad aria

soffiata a combustibile liquido o gassoso. Caldaia a tre giri

di fumo con camera di combustione a fondo bagnato e

dimensionata in modo tale da assicurare bassi carichi

termici.

Gamma composta da 17 modelli con potenze utili da

1.109 kW a 16.895 kW.

• Pressione standard di progetto 12 bar, 15 bar

(a richiesta, pressioni superiori).

• Produzione di vapore (a 12 bar) da 1,6 a 25 t/h.

• Camera evaporante abbondantemente dimensionata

con un’ampia superficie di scambio per la produzione di

vapore saturo di elevata qualit

à.

• Camera di combustione rinforzata con giunti a omega

o fox.

• Bruciatore fissato sulla piastra porta bruciatore.

• Pulizia fascio tubiero senza rimuovere il bruciatore,

con la semplice apertura delle 2 porte anteriore e delle

2 posteriori.

• Possibilit

à di accesso al focolare tramite la rimozione

del tampone posteriore.

• Le dispersioni verso l’ambiente sono molto contenute

grazie ad una adeguata coibentazione del corpo caldaia

eseguita con uno strato di lana minerale ad alta densità.

Medium pressure saturated steam generator, packaged

steel structure with pressurised combustion and high

energy efficiency. Ready for operation in combination with

a jet burner on liquid or gas fuel. Boiler with three

flue

passes, combustion chamber with cooled end plate sized

to ensure low heating loads.

Range consisting of 17 models with useful heat outputs

from 1,109 kW to 16,895 kW.

• Standard design pressure 12 bars, 15 bars

(higher pressure upon request).

• Steam production (at 12 bars) from 1.6 to 25 t/h.

• Amply sized evaporating chamber with large heat

exchange area for the production of high quality

saturated steam.

• Combustion chamber reinforced with omega or

wedge joints.

• Burner

fixed to the burner anchor plate.

• Tube bundle can be cleaned without removing the

burner, by simply opening the two front and two rear

doors.

• Possibility to access the furnace by removing the rear

cover plate.

• Heat loss to the surrounding environment is limited by a

suitable layer of high-density mineral wool insulation on

the boiler body.

126
