fiamma e piastra porta bruciatore.

• La cassa fumi posteriore è

fissata alla caldaia

mediante bulloni,

è internamente coibentata con

cemento isolante ed è dotata di portina di pulizia ed

attacco per il raccordo camino.

• Di moderna concezione e ad alto rendimento, questi

generatori sono progettati e realizzati nel rispetto

della Direttiva Europea 2014/68/UE (PED) e delle

più recenti norme nazionali ed europee in materia di

recipienti a pressione.

• Il corpo caldaia è rivestito da un adeguato strato di

lana di roccia ad alta densità, protetto da lamierino

inox (AISI 430); ciò permette di ridurre le dispersioni

termiche migliorando il rendimento complessivo.

• Versione verticale a richiesta.

CERTIFICAZIONI

Marcatura CE secondo le Direttive

Apparecchi a pressione (2014/68/UE)

Bassa Tensione (2014/35/UE)

Compatibilità Elettromagnetica (2014/30/UE)

on the inside with insulating concrete, and is

fitted with

cleanout door and attachment for the

flue connection.

• These modern-concept and high-efficiency generators

have been designed and developed in compliance

with European directive 2014/68/UE (PED) and the

most recent national and European standards on

pressurised recipients.

• The boiler body is lined by a suitable layer of high

density rock wool, protected by stainless steel plate

(AISI 430); this reduces heat loss and improves overall

efficiency.

• Vertical version on request.

CERTIFICATION

CE mark in accordance with the following directives

Pressure Equipment (2014/68/UE)

Low Voltage (2014/35/UE)

Electromagnetic Compatibility (2014/30/UE)

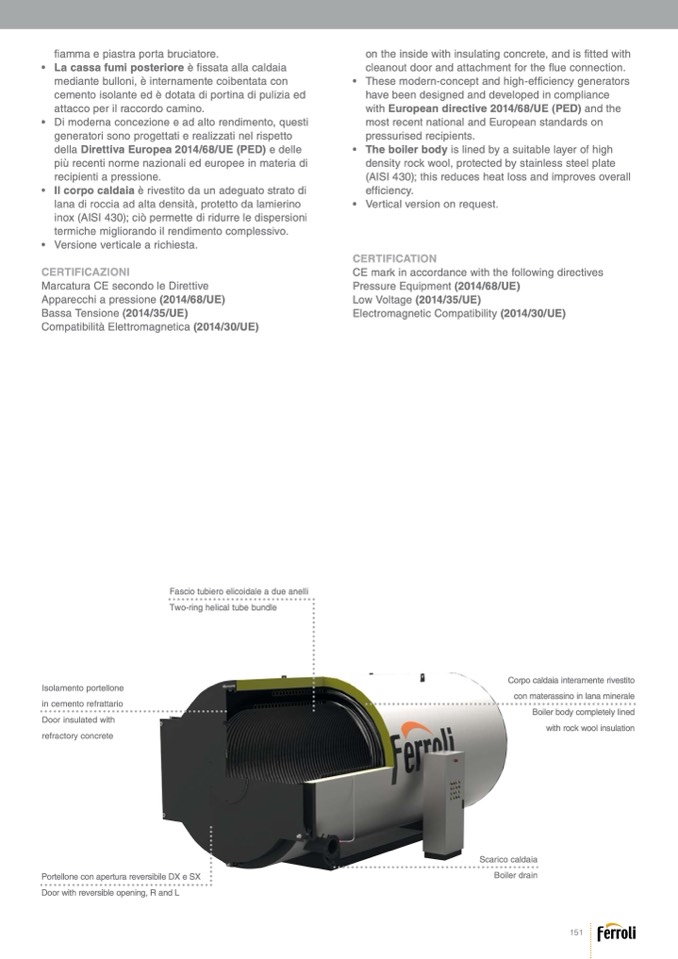

Fascio tubiero elicoidale a due anelli

Two-ring helical tube bundle

Isolamento portellone

in cemento refrattario

Door insulated with

refractory concrete

Portellone con apertura reversibile DX e SX

Door with reversible opening, R and L

Corpo caldaia interamente rivestito

con materassino in lana minerale

Boiler body completely lined

with rock wool insulation

Scarico caldaia

Boiler drain
