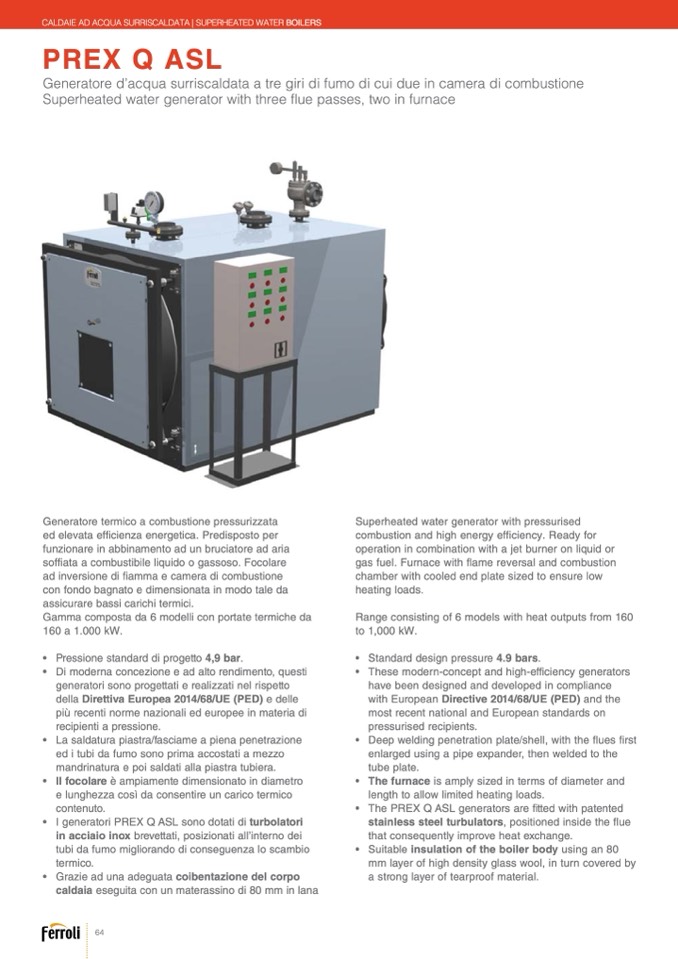

CALDAIE AD ACQUA SURRISCALDATA | SUPERHEATED WATER BOILERS

PREX Q ASL

Generatore d’acqua surriscaldata a tre giri di fumo di cui due in camera di combustione

Superheated water generator with three flue passes, two in furnace

Generatore termico a combustione pressurizzata

ed elevata efficienza energetica. Predisposto per

funzionare in abbinamento ad un bruciatore ad aria

soffiata a combustibile liquido o gassoso. Focolare

ad inversione di fiamma e camera di combustione

con fondo bagnato e dimensionata in modo tale da

assicurare bassi carichi termici.

Gamma composta da 6 modelli con portate termiche da

160 a 1.000 kW.

• Pressione standard di progetto 4,9 bar.

• Di moderna concezione e ad alto rendimento, questi

generatori sono progettati e realizzati nel rispetto

della Direttiva Europea 2014/68/UE (PED) e delle

pi

ù recenti norme nazionali ed europee in materia di

recipienti a pressione.

• La saldatura piastra/fasciame a piena penetrazione

ed i tubi da fumo sono prima accostati a mezzo

mandrinatura e poi saldati alla piastra tubiera.

• Il focolare è ampiamente dimensionato in diametro

e lunghezza cos

ì da consentire un carico termico

contenuto.

• I generatori PREX Q ASL sono dotati di turbolatori

in acciaio inox brevettati, posizionati all’interno dei

tubi da fumo migliorando di conseguenza lo scambio

termico.

• Grazie ad una adeguata coibentazione del corpo

caldaia eseguita con un materassino di 80 mm in lana

Superheated water generator with pressurised

combustion and high energy efficiency. Ready for

operation in combination with a jet burner on liquid or

gas fuel. Furnace with

flame reversal and combustion

chamber with cooled end plate sized to ensure low

heating loads.

Range consisting of 6 models with heat outputs from 160

to 1,000 kW.

• Standard design pressure 4.9 bars.

• These modern-concept and high-efficiency generators

have been designed and developed in compliance

with European Directive 2014/68/UE (PED) and the

most recent national and European standards on

pressurised recipients.

• Deep welding penetration plate/shell, with the flues

first

enlarged using a pipe expander, then welded to the

tube plate.

• The furnace is amply sized in terms of diameter and

length to allow limited heating loads.

• The PREX Q ASL generators are fitted with patented

stainless steel turbulators, positioned inside the

flue

that consequently improve heat exchange.

• Suitable insulation of the boiler body using an 80

mm layer of high density glass wool, in turn covered by

a strong layer of tearproof material.
