di vetro ad alta densit

à, ricoperto a sua volta da un

resistente strato di materiale antistrappo.

• Portellone anteriore con apertura reversibile (destra e

sinistra) ed innovativo sistema di chiusura e regolazione

micrometrica sulla piastra frontale del generatore. Il

portellone

è isolato con doppio rivestimento composto

da uno strato in

fibra ed uno in carbowool.

• Le saldature delle parti in pressione sono eseguite da

personale qualificato e approvato secondo norme EN.

• L’ispezionabilità lato acqua

è garantita mediante un

passo mano sul colmo caldaia e da un passa mano

sulla parte inferiore.

• Lo scarico caldaia è posizionato sulla parte posteriore

caldaia.

• Manutenzione garantita dalla facilit

à di accesso dal

portellone al focolare e al fascio tubiero e dalla cassa

fumi smontabile.

• Mantellatura in acciaio verniciato.

CERTIFICAZIONI

Marcatura CE secondo le Direttive

Apparecchi a pressione (2014/68/UE)

Bassa Tensione (2014/35/UE)

Compatibilità Elettromagnetica (2014/30/UE)

• Front door with reversible opening(right and left) and

innovative closing system with micrometric adjustment

on the hot water generator front plate. The door is

insulated with double lining, made up of one layer of

fibre and one layer of Carbowool.

• The parts subject to pressure are all welded by

qualified and approved personnel in accordance with

EN standards.

• The water circuit can be inspected through a handhole

at the top of the boiler and a hand opening ring at the

bottom.

• The drain can be located on boiler rear side.

• Maintenance guaranteed by easy access to the

furnace and the tube bundle through the door and the

removable smokebox.

• Painted steel casing.

CERTIFICATION

CE mark in accordance with the following directives

Pressure Equipment (2014/68/UE)

Low Voltage (2014/35/UE)

Electromagnetic Compatibility (2014/30/UE)

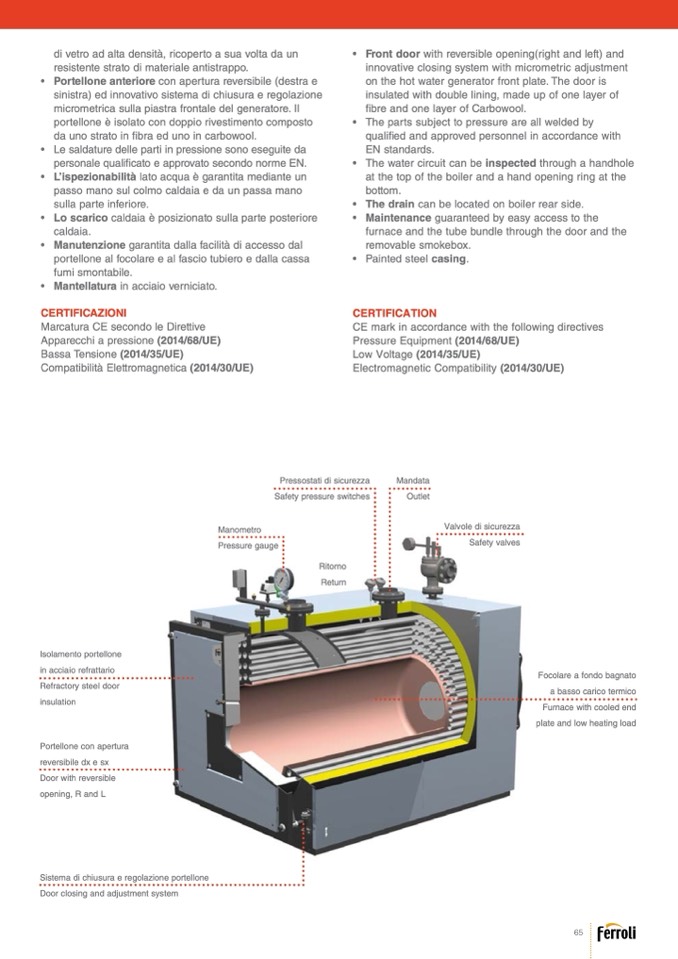

Pressostati di sicurezza

Safety pressure switches

Mandata

Outlet

Manometro

Pressure gauge

Valvole di sicurezza

Safety valves

Ritorno

Return

Isolamento portellone

in acciaio refrattario

Refractory steel door

insulation

Portellone con apertura

reversibile dx e sx

Door with reversible

opening, R and L

Sistema di chiusura e regolazione portellone

Door closing and adjustment system

Focolare a fondo bagnato

a basso carico termico

Furnace with cooled end

plate and low heating load
