densità, protetto di lamierino inox, le dispersioni verso

l’ambiente sono molto contenute.

• Il portellone anteriore costituito da un adeguato

spessore di cemento refrattario che ne copre tutta

l’estensione della superficie riscaldata della piastra

tubiera. L’apertura reversibile (destra o sinistra), e il

sistema di chiusura e regolazione micrometrico rendono

il portellone di facile movimentazione.

• Le saldature delle parti in pressione sono eseguite da

personale qualificato e approvato secondo norme EN.

• L’ispezionabilit

à lato acqua

è garantita mediante un

passo uomo sul colmo caldaia e da un passa mano

sulla parte inferiore.

• Manutenzione garantita dalla facilit

à di accesso dal

portellne al focolare e al fascio tubiero e dalla cassa

fumi smontabile.

refractory cement that covers the entire heated surface

of the pipe plates. The front door with reversible

opening (right and left), and the micrometric closing

and adjustment system make the door easy to move.

• The parts subject to pressure are all welded by

quali

fied and approved personnel in accordance with

EN standards.

• The water circuit can be inspected through a manhole

at the top of the boiler and a hand opening ring at the

bottom.

• Maintenance guaranteed by easy access to the

furnace and the tube bundle through the door and the

removable smokebox.

CERTIFICATION

CE mark in accordance with the following directives

Pressure Equipment (2014/68/UE)

Low Voltage (2014/35/UE)

Electromagnetic Compatibility (2014/30/UE)

CERTIFICAZIONI

Marcatura CE secondo le Direttive

Apparecchi a pressione (2014/68/UE)

Bassa Tensione (2014/35/UE)

Compatibilità Elettromagnetica (2014/30/UE)

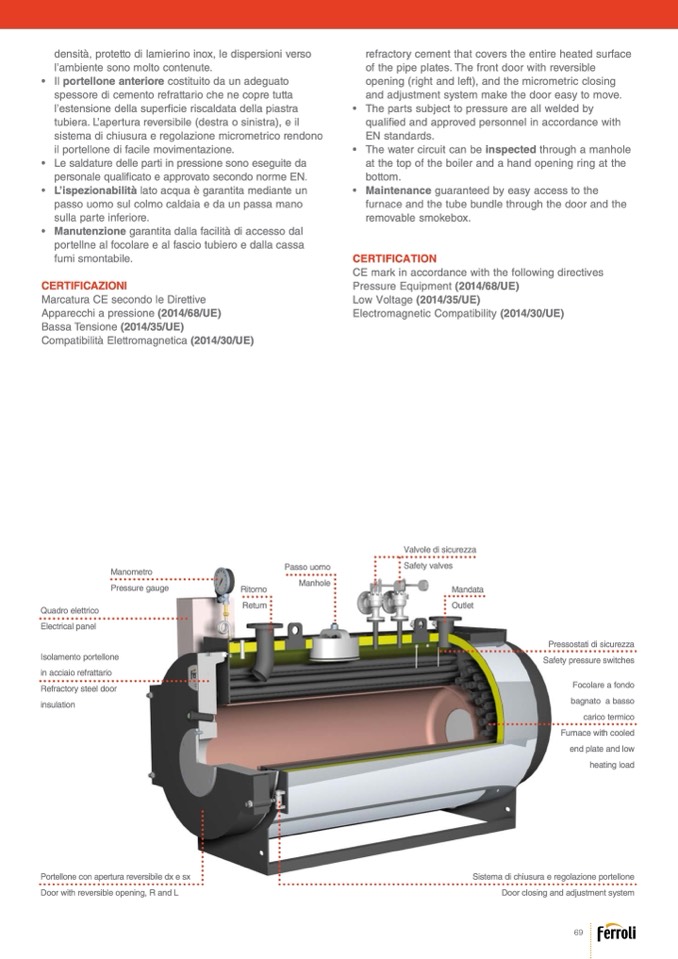

Manometro

Pressure gauge

Ritorno

Return

Passo uomo

Manhole

Valvole di sicurezza

Safety valves

Mandata

Outlet

Quadro elettrico

Electrical panel

Isolamento portellone

in acciaio refrattario

Refractory steel door

insulation

Pressostati di sicurezza

Safety pressure switches

Focolare a fondo

bagnato a basso

carico termico

Furnace with cooled

end plate and low

heating load

Portellone con apertura reversibile dx e sx

Door with reversible opening, R and L

Sistema di chiusura e regolazione portellone

Door closing and adjustment system
