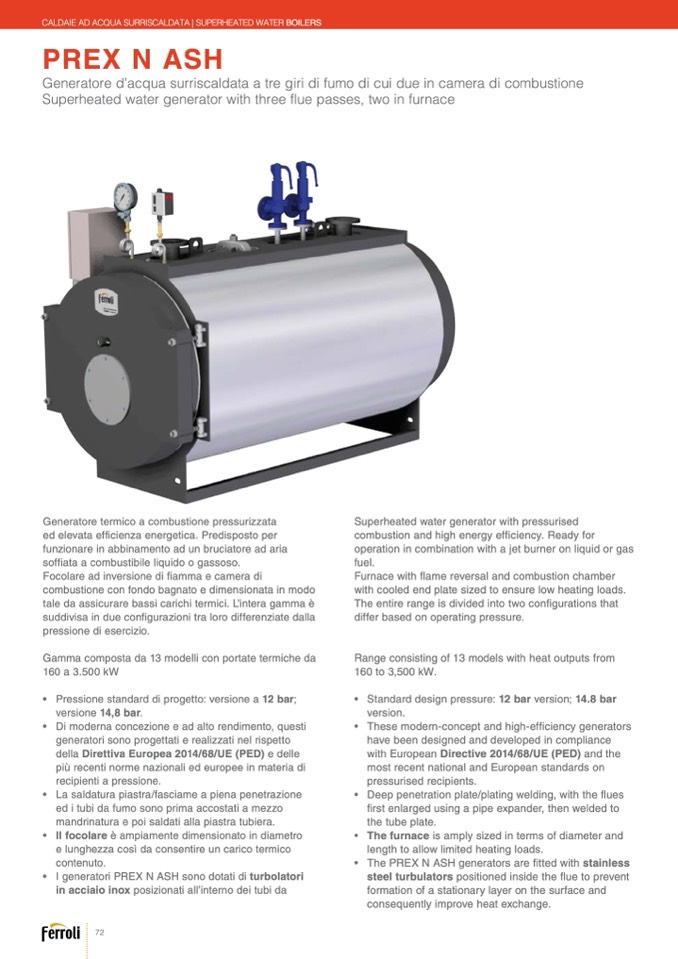

CALDAIE AD ACQUA SURRISCALDATA | SUPERHEATED WATER BOILERS

PREX N ASH

Generatore d’acqua surriscaldata a tre giri di fumo di cui due in camera di combustione

Superheated water generator with three flue passes, two in furnace

Generatore termico a combustione pressurizzata

ed elevata efficienza energetica. Predisposto per

funzionare in abbinamento ad un bruciatore ad aria

soffiata a combustibile liquido o gassoso.

Focolare ad inversione di

fiamma e camera di

combustione con fondo bagnato e dimensionata in modo

tale da assicurare bassi carichi termici. L’intera gamma è

suddivisa in due con

figurazioni tra loro differenziate dalla

pressione di esercizio.

Gamma composta da 13 modelli con portate termiche da

160 a 3.500 kW

• Pressione standard di progetto: versione a 12 bar;

versione 14,8 bar.

• Di moderna concezione e ad alto rendimento, questi

generatori sono progettati e realizzati nel rispetto

della Direttiva Europea 2014/68/UE (PED) e delle

pi

ù recenti norme nazionali ed europee in materia di

recipienti a pressione.

• La saldatura piastra/fasciame a piena penetrazione

ed i tubi da fumo sono prima accostati a mezzo

mandrinatura e poi saldati alla piastra tubiera.

• Il focolare è ampiamente dimensionato in diametro

e lunghezza così da consentire un carico termico

contenuto.

• I generatori PREX N ASH sono dotati di turbolatori

in acciaio inox posizionati all’interno dei tubi da

Superheated water generator with pressurised

combustion and high energy efficiency. Ready for

operation in combination with a jet burner on liquid or gas

fuel.

Furnace with

flame reversal and combustion chamber

with cooled end plate sized to ensure low heating loads.

The entire range is divided into two con

figurations that

differ based on operating pressure.

Range consisting of 13 models with heat outputs from

160 to 3,500 kW.

• Standard design pressure: 12 bar version; 14.8 bar

version.

• These modern-concept and high-efficiency generators

have been designed and developed in compliance

with European Directive 2014/68/UE (PED) and the

most recent national and European standards on

pressurised recipients.

• Deep penetration plate/plating welding, with the flues

first enlarged using a pipe expander, then welded to

the tube plate.

• The furnace is amply sized in terms of diameter and

length to allow limited heating loads.

• The PREX N ASH generators are

fitted with stainless

steel turbulators positioned inside the

flue to prevent

formation of a stationary layer on the surface and

consequently improve heat exchange.
