fumo che impediscono il formarsi di uno strato limite

stazionario sulla super

ficie dei medesimi, migliorando di

conseguenza lo scambio termico.

• Grazie ad una adeguata coibentazione del corpo

caldaia eseguita con uno strato di lana minerale ad alta

densit

à, protetto di lamierino inox, le dispersioni verso

l’ambiente sono molto contenute.

• Il portellone anteriore costituito da un adeguato

spessore di cemento refrattario che ne copre tutta

l’estensione della super

ficie riscaldata della piastra

tubiera. L’apertura reversibile (destra o sinistra), e

il sistema di chiusura e regolazione micrometrico

rendono il portellone di facile movimentazione.

• Le saldature delle parti in pressione sono tutte eseguite

da personale qualificato ed approvato secondo norme

EN.

• L’ispezionabilit

à lato acqua è garantita mediante un

passo uomo sul colmo caldaia e da un passa mano

sulla parte inferiore.

• Manutenzione garantita dalla facilit

à di accesso dal

portellone al focolare e al fascio tubiero e dalla cassa

fumi smontabile.

• Suitable insulation of the boiler body using high-

density mineral wool protected by stainless steel plate

limits heat loss to the surrounding environment.

• The front door consists of an adequate thickness

of refractory cement that covers the entire heated

surface of the pipe plates. The front door with

reversible opening (right and left), and the micrometric

closing and adjustment system make the door easy to

move.

• The parts subject to pressure are all welded by

qualified and approved personnel, according to EN

standards.

• The water circuit can be inspected through a manhole

at the top of the boiler and a hand opening ring at the

bottom.

• Maintenance guaranteed by easy access to the

furnace and the tube bundle through the door and the

removable smokebox.

CERTIFICATION

CE mark in accordance with the following directives

Pressure Equipment (2014/68/UE)

Low Voltage (2014/35/UE)

Electromagnetic Compatibility (2014/30/UE)

CERTIFICAZIONI

Marcatura CE secondo le Direttive

Apparecchi a pressione (2014/68/UE)

Bassa Tensione (2014/35/UE)

Compatibilit

à Elettromagnetica (2014/30/UE)

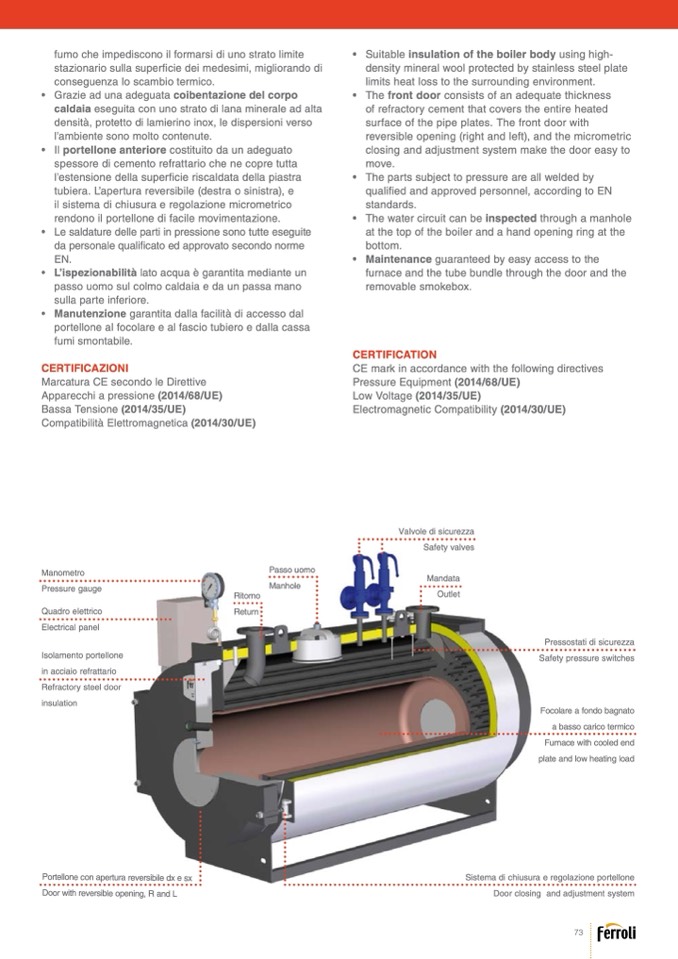

Manometro

Pressure gauge

Quadro elettrico

Electrical panel

Isolamento portellone

in acciaio refrattario

Refractory steel door

insulation

Passo uomo

Manhole

Ritorno

Return

Valvole di sicurezza

Safety valves

Mandata

Outlet

Pressostati di sicurezza

Safety pressure switches

Focolare a fondo bagnato

a basso carico termico

Furnace with cooled end

plate and low heating load

Portellone con

apertura revers

ibile dx e sx

Door with revers

ible opening,

R and L

Sistema di chiusura e regolazione portellone

Door closing and adjustment system
