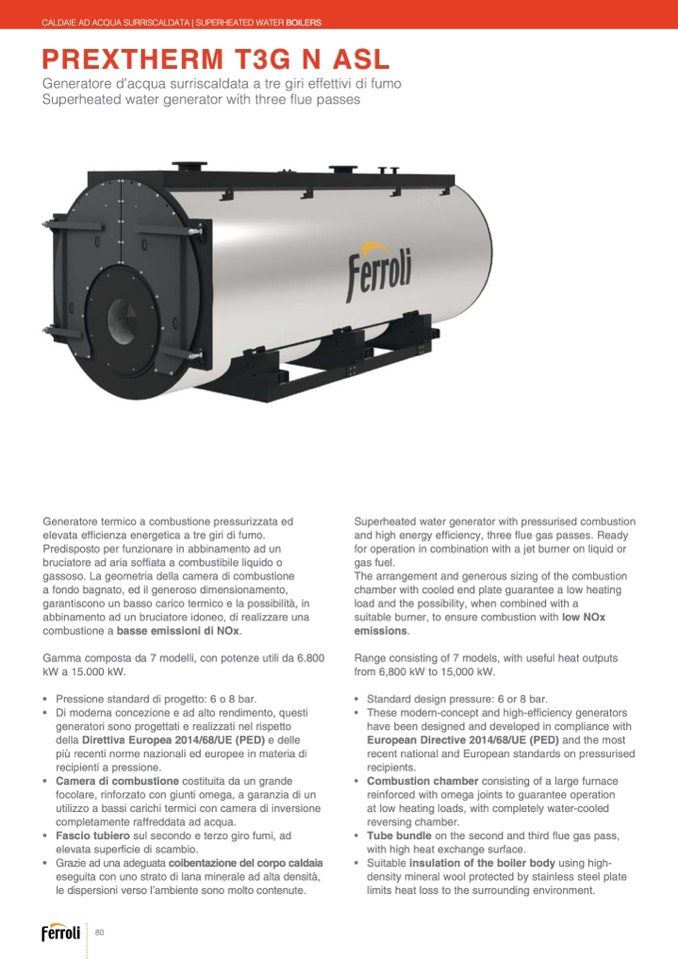

CALDAIE AD ACQUA SURRISCALDATA | SUPERHEATED WATER BOILERS

PREXTHERM T3G N ASL

Generatore d’acqua surriscaldata a tre giri effettivi di fumo

Superheated water generator with three flue passes

Generatore termico a combustione pressurizzata ed

elevata efficienza energetica a tre giri di fumo.

Predisposto per funzionare in abbinamento ad un

bruciatore ad aria soffiata a combustibile liquido o

gassoso. La geometria della camera di combustione

a fondo bagnato, ed il generoso dimensionamento,

garantiscono un basso carico termico e la possibilità, in

abbinamento ad un bruciatore idoneo, di realizzare una

combustione a basse emissioni di NOx.

Gamma composta da 7 modelli, con potenze utili da 6.800

kW a 15.000 kW.

• Pressione standard di progetto: 6 o 8 bar.

• Di moderna concezione e ad alto rendimento, questi

generatori sono progettati e realizzati nel rispetto

della Direttiva Europea 2014/68/UE (PED) e delle

pi

ù recenti norme nazionali ed europee in materia di

recipienti a pressione.

• Camera di combustione costituita da un grande

focolare, rinforzato con giunti omega, a garanzia di un

utilizzo a bassi carichi termici con camera di inversione

completamente raffreddata ad acqua.

• Fascio tubiero sul secondo e terzo giro fumi, ad

elevata super

ficie di scambio.

• Grazie ad una adeguata coibentazione del corpo caldaia

eseguita con uno strato di lana minerale ad alta densità,

le dispersioni verso l’ambiente sono molto contenute.

Superheated water generator with pressurised combustion

and high energy efficiency, three

flue gas passes. Ready

for operation in combination with a jet burner on liquid or

gas fuel.

The arrangement and generous sizing of the combustion

chamber with cooled end plate guarantee a low heating

load and the possibility, when combined with a

suitable burner, to ensure combustion with low NOx

emissions.

Range consisting of 7 models, with useful heat outputs

from 6,800 kW to 15,000 kW.

• Standard design pressure: 6 or 8 bar.

• These modern-concept and high-efficiency generators

have been designed and developed in compliance with

European Directive 2014/68/UE (PED) and the most

recent national and European standards on pressurised

recipients.

• Combustion chamber consisting of a large furnace

reinforced with omega joints to guarantee operation

at low heating loads, with completely water-cooled

reversing chamber.

• Tube bundle on the second and third

flue gas pass,

with high heat exchange surface.

• Suitable insulation of the boiler body using high-

density mineral wool protected by stainless steel plate

limits heat loss to the surrounding environment.
