• Grandi portelli di ispezione sia nella parte anteriore,

di inversione dei fumi dal secondo al terzo giro, che in

quella posteriore di raccolta fumi.

• L’ispezionabilità lato acqua

è garantita mediante un

passo uomo sul colmo caldaia e da un passa mano

sulla parte inferiore.

• Passo uomo posteriore per ispezione del focolare.

• Le saldature delle parti in pressione sono tutte eseguite

da personale quali

ficato ed approvato IIS secondo

norme EN.

• Cassa fumi posteriore completamente rivestita con

materassino in lana minerale ad alta densit

à.

CERTIFICAZIONI

Marcatura CE secondo le Direttive

Apparecchi a pressione (2014/68/UE)

Bassa Tensione (2014/35/UE)

Compatibilità Elettromagnetica (2014/30/UE)

• Large inspection doors both on the front, for

flue gas

reversal from the second to third pass, and at the rear

for the smokebox.

• The water circuit can be inspected through a manhole

at the top of the boiler and a hand opening ring at the

bottom.

• Rear manhole for inspecting the furnace.

• The parts subject to pressure are all welded by

quali

fied and IIS approved personnel, according to EN

standards.

• Rear smokebox completely lined with high density

mineral wool insulation.

CERTIFICATION

CE mark in accordance with the following directives

Pressure Equipment (2014/68/UE)

Low Voltage (2014/35/UE)

Electromagnetic Compatibility (2014/30/UE)

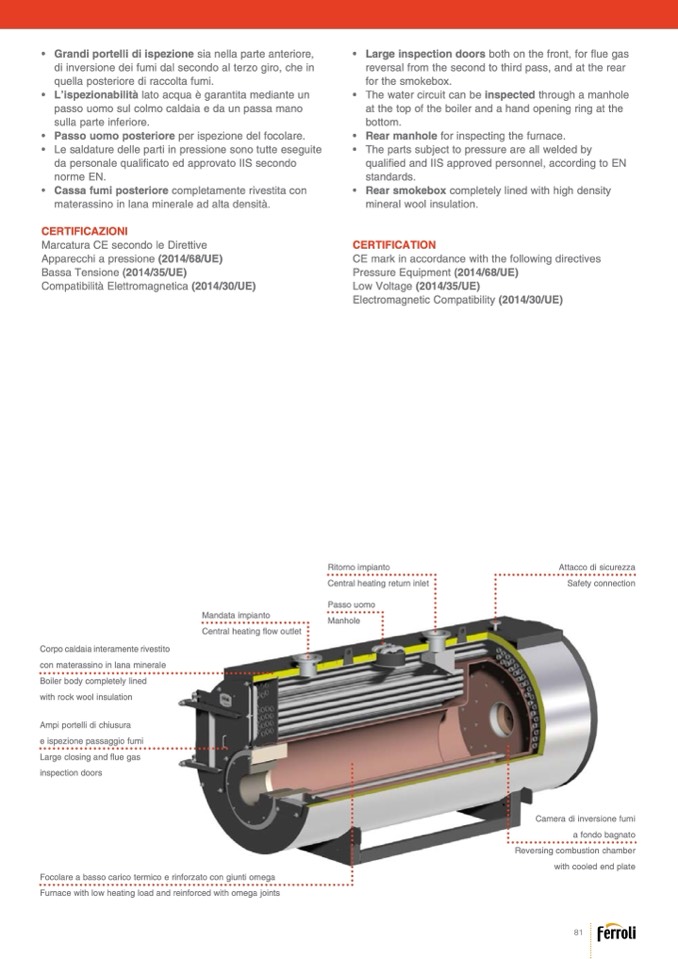

Ritorno impianto

Central heating return inlet

Passo uomo

Manhole

Attacco di sicurezza

Safety connection

Mandata impianto

Central heating flow outlet

Corpo caldaia interamente rivestito

con materassino in lana minerale

Boiler body completely lined

with rock wool insulation

Ampi portelli di chiusura

e ispezione passaggio fumi

Large closing and

flue gas

inspection doors

Focolare a basso carico termico e rinforzato con giunti omega

Furnace with low heating load and reinforced with omega joints

Camera di inversione fumi

a fondo bagnato

Reversing combustion chamber

with cooled end plate
