CALDAIE AD ACQUA SURRISCALDATA | SUPERHEATED WATER BOILERS

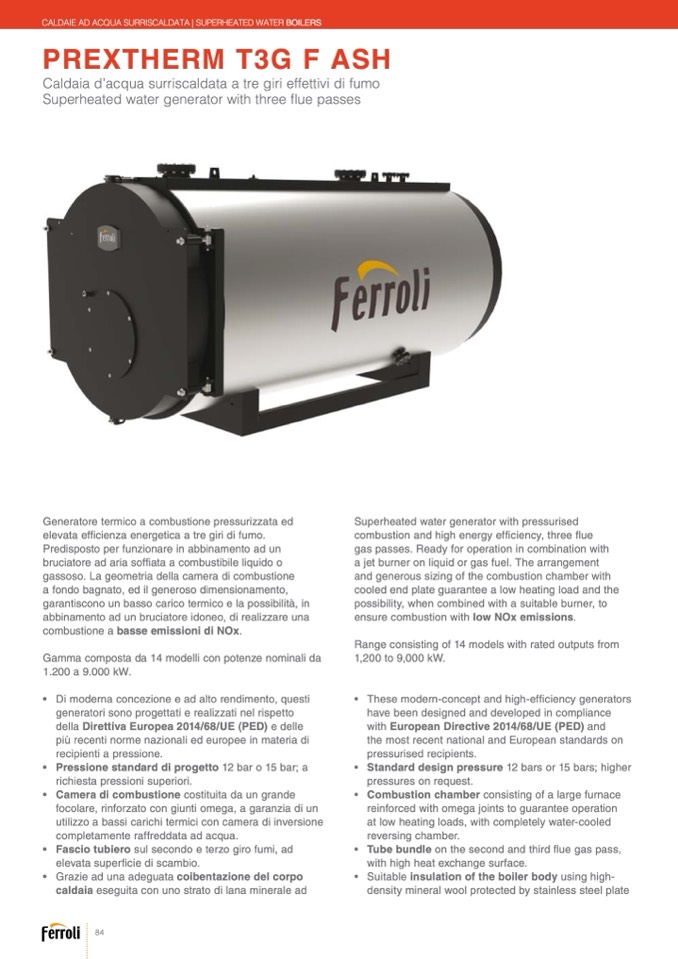

PREXTHERM T3G F ASH

Caldaia d’acqua surriscaldata a tre giri effettivi di fumo

Superheated water generator with three flue passes

Generatore termico a combustione pressurizzata ed

elevata efficienza energetica a tre giri di fumo.

Predisposto per funzionare in abbinamento ad un

bruciatore ad aria soffiata a combustibile liquido o

gassoso. La geometria della camera di combustione

a fondo bagnato, ed il generoso dimensionamento,

garantiscono un basso carico termico e la possibilità, in

abbinamento ad un bruciatore idoneo, di realizzare una

combustione a basse emissioni di NOx.

Gamma composta da 14 modelli con potenze nominali da

1.200 a 9.000 kW.

• Di moderna concezione e ad alto rendimento, questi

generatori sono progettati e realizzati nel rispetto

della Direttiva Europea 2014/68/UE (PED) e delle

pi

ù recenti norme nazionali ed europee in materia di

recipienti a pressione.

• Pressione standard di progetto 12 bar o 15 bar; a

richiesta pressioni superiori.

• Camera di combustione costituita da un grande

focolare, rinforzato con giunti omega, a garanzia di un

utilizzo a bassi carichi termici con camera di inversione

completamente raffreddata ad acqua.

• Fascio tubiero sul secondo e terzo giro fumi, ad

elevata super

ficie di scambio.

• Grazie ad una adeguata coibentazione del corpo

caldaia eseguita con uno strato di lana minerale ad

Superheated water generator with pressurised

combustion and high energy efficiency, three flue

gas passes. Ready for operation in combination with

a jet burner on liquid or gas fuel. The arrangement

and generous sizing of the combustion chamber with

cooled end plate guarantee a low heating load and the

possibility, when combined with a suitable burner, to

ensure combustion with low NOx emissions.

Range consisting of 14 models with rated outputs from

1,200 to 9,000 kW.

• These modern-concept and high-efficiency generators

have been designed and developed in compliance

with European Directive 2014/68/UE (PED) and

the most recent national and European standards on

pressurised recipients.

• Standard design pressure 12 bars or 15 bars; higher

pressures on request.

• Combustion chamber consisting of a large furnace

reinforced with omega joints to guarantee operation

at low heating loads, with completely water-cooled

reversing chamber.

• Tube bundle on the second and third

flue gas pass,

with high heat exchange surface.

• Suitable insulation of the boiler body using high-

density mineral wool protected by stainless steel plate
