alta densit

à, protetto di lamierino inox, le dispersioni

verso l’ambiente sono molto contenute.

• Il portellone è internamente rivestito con un adeguato

spessore di cemento refrattario e copre, su tutta la sua

estensione, la superficie riscaldata della piastra tubiera.

• Portellone anteriore con apertura reversibile

(destra e sinistra) ed innovativo sistema di chiusura

e regolazione micrometrica sulla piastra frontale del

generatore.

• Le saldature delle parti in pressione sono tutte eseguite da

personale quali

ficato ed approvato secondo norme EN.

• Manutenzione garantita dalla facilit

à di accesso dal

portellone al focolare ed al fascio tubiero, dalla cassa

fumi smontabile e dalla portina di ispezione sul corpo

caldaia.

• L’ispezionabilità lato acqua

è garantita mediante un

passo uomo sul colmo caldaia e da un passa mano

sulla parte inferiore.

CERTIFICAZIONI

Marcatura CE secondo le Direttive

Apparecchi a pressione (2014/68/UE)

Bassa Tensione (2014/35/UE)

Compatibilit

à Elettromagnetica (2014/30/UE)

limits heat loss to the surrounding environment.

• The door is insulated on the inside with a suitable

layer of refractory concrete and covers the entire

heated surface of the tube plate.

• Front door with reversible opening (right and left) and

innovative closing system with micrometric adjustment

on the boiler front plate.

• The parts subject to pressure are all welded by

qualified and approved personnel, according to EN

standards.

• Maintenance guaranteed by easy access to the

furnace and the tube bundle through the door, the

removable smokebox and the inspection door on the

boiler body.

• The water circuit can be inspected through a manhole

at the top of the boiler and a hand opening ring at the

bottom.

CERTIFICATION

CE mark in accordance with the following directives

Pressure Equipment (2014/68/UE)

Low Voltage (2014/35/UE)

Electromagnetic Compatibility (2014/30/UE)

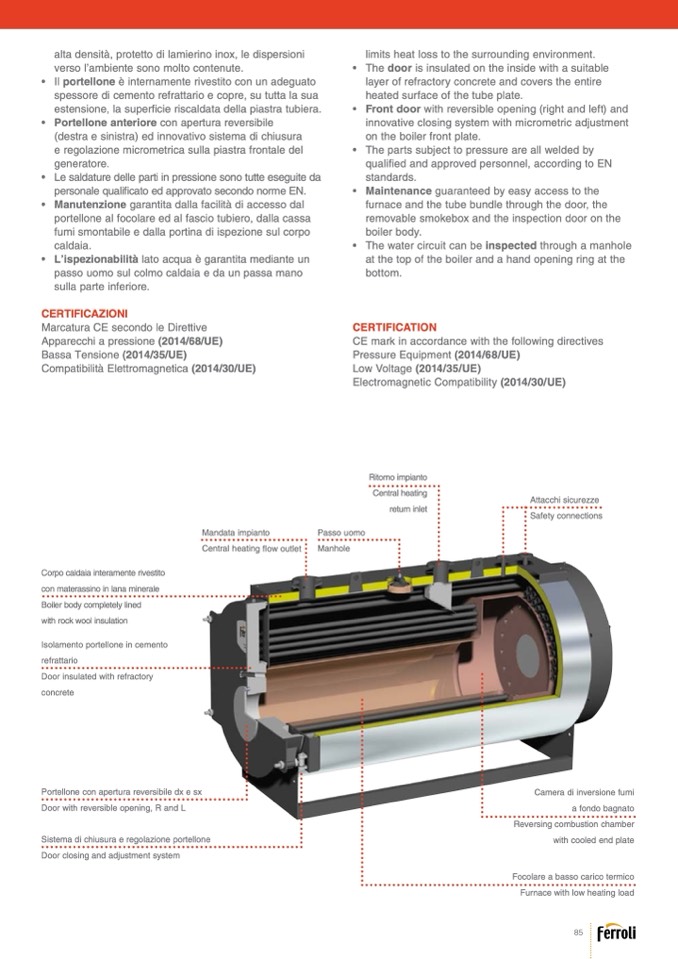

Ritorno impianto

Central heating

return inlet

Attacchi sicurezze

Safety connections

Mandata impianto

Central heating flow outlet

Passo uomo

Manhole

Corpo caldaia interamente rivestito

con materassino in lana minerale

Boiler body completely lined

with rock wool insulation

Isolamento portellone in cemento

refrattario

Door insulated with refractory

concrete

Portellone con apertura reversibile dx e sx

Door with reversible opening, R and L

Camera di inversione fumi

a fondo bagnato

Reversing combustion chamber

with cooled end plate

Focolare a basso carico termico

Furnace with low heating load

Sistema di chiusura e regolazione portellone

Door closing and adjustment system
