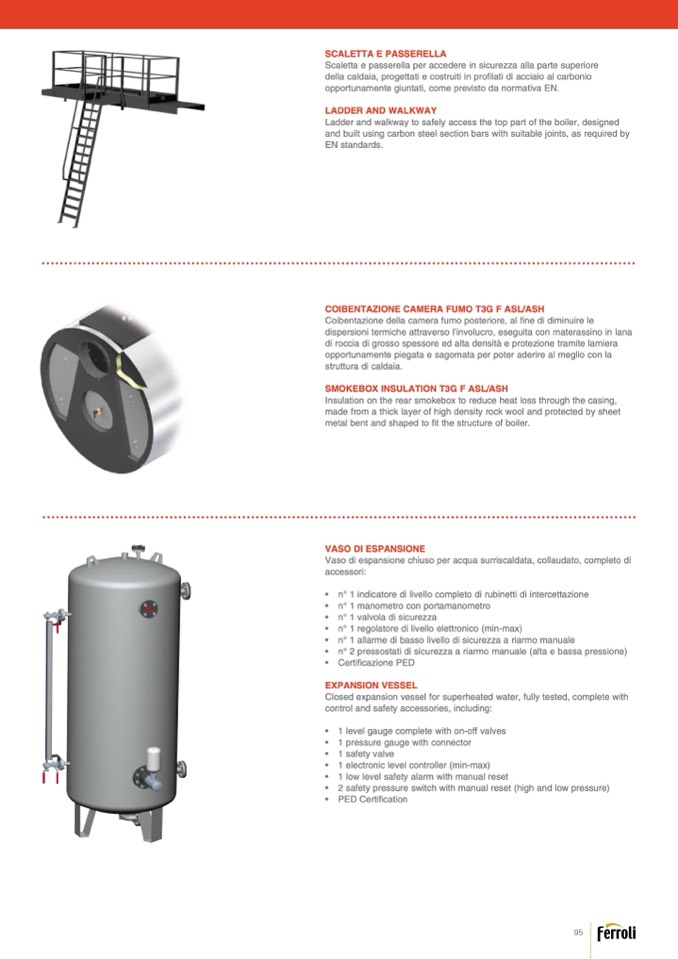

SCALETTA E PASSERELLA

Scaletta e passerella per accedere in sicurezza alla parte superiore

della caldaia, progettati e costruiti in pro

filati di acciaio al carbonio

opportunamente giuntati, come previsto da normativa EN.

LADDER AND WALKWAY

Ladder and walkway to safely access the top part of the boiler, designed

and built using carbon steel section bars with suitable joints, as required by

EN standards.

COIBENTAZIONE CAMERA FUMO T3G F ASL/ASH

Coibentazione della camera fumo posteriore, al fine di diminuire le

dispersioni termiche attraverso l’involucro, eseguita con materassino in lana

di roccia di grosso spessore ed alta densit

à e protezione tramite lamiera

opportunamente piegata e sagomata per poter aderire al meglio con la

struttura di caldaia.

SMOKEBOX INSULATION T3G F ASL/ASH

Insulation on the rear smokebox to reduce heat loss through the casing,

made from a thick layer of high density rock wool and protected by sheet

metal bent and shaped to

fit the structure of boiler.

VASO DI ESPANSIONE

Vaso di espansione chiuso per acqua surriscaldata, collaudato, completo di

accessori:

• n° 1 indicatore di livello completo di rubinetti di intercettazione

• n° 1 manometro con portamanometro

• n° 1 valvola di sicurezza

• n° 1 regolatore di livello elettronico (min-max)

• n° 1 allarme di basso livello di sicurezza a riarmo manuale

• n° 2 pressostati di sicurezza a riarmo manuale (alta e bassa pressione)

• Certi

ficazione PED

EXPANSION VESSEL

Closed expansion vessel for superheated water, fully tested, complete with

control and safety accessories, including:

• 1 level gauge complete with on-off valves

• 1 pressure gauge with connector

• 1 safety valve

• 1 electronic level controller (min-max)

• 1 low level safety alarm with manual reset

• 2 safety pressure switch with manual reset (high and low pressure)

• PED Certi

fication

95
