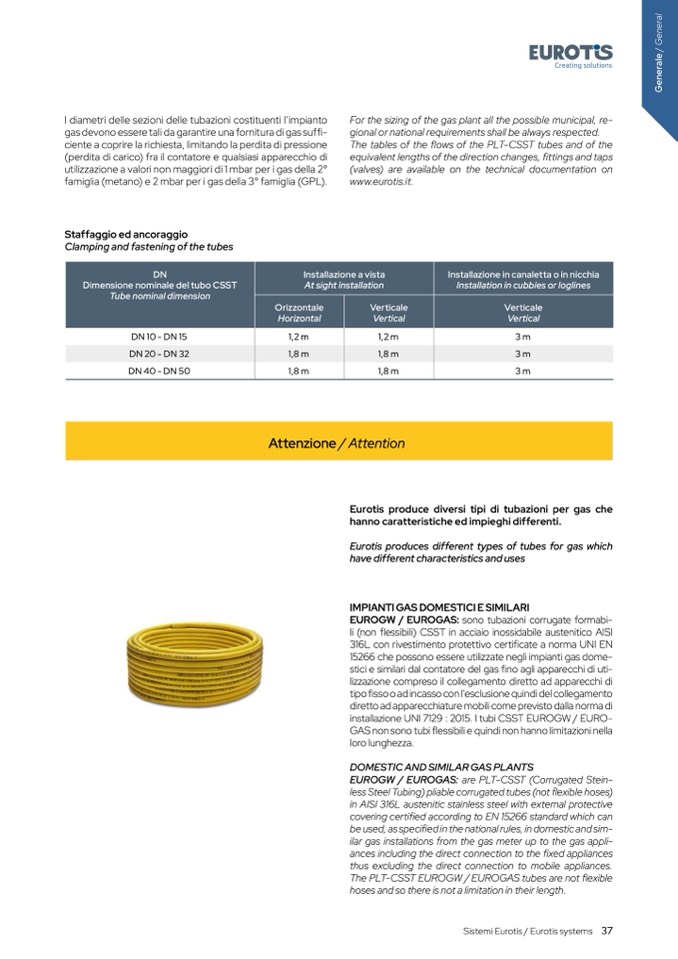

I diametri delle sezioni delle tubazioni costituenti l’impianto

gas devono essere tali da garantire una fornitura di gas suffi-

ciente a coprire la richiesta, limitando la perdita di pressione

(perdita di carico) fra il contatore e qualsiasi apparecchio di

utilizzazione a valori non maggiori di 1 mbar per i gas della 2°

famiglia (metano) e 2 mbar per i gas della 3° famiglia (GPL).

For the sizing of the gas plant all the possible municipal, re-

gional or national requirements shall be always respected.

The tables of the

flows of the PLT-CSST tubes and of the

equivalent lengths of the direction changes,

fittings and taps

(valves) are available on the technical documentation on

www.eurotis.it.

Staffaggio ed ancoraggio

Clamping and fastening of the tubes

DN

Dimensione nominale del tubo CSST

Tube nominal dimension

Installazione a vista

At sight installation

Installazione in canaletta o in nicchia

Installation in cubbies or loglines

Orizzontale

Horizontal

Verticale

Vertical

Verticale

Vertical

DN 10 - DN 15

1,2 m

1,2 m

3m

DN 20 - DN 32

1,8 m

1,8 m

3m

DN 40 - DN 50

1,8 m

1,8 m

3m

Attenzione / Attention

Eurotis produce diversi tipi di tubazioni per gas che

hanno caratteristiche ed impieghi differenti.

Eurotis produces different types of tubes for gas which

have different characteristics and uses

IMPIANTI GAS DOMESTICI E SIMILARI

EUROGW / EUROGAS: sono tubazioni corrugate formabi-

li (non

flessibili) CSST in acciaio inossidabile austenitico AISI

316L con rivestimento protettivo certi

ficate a norma UNI EN

15266 che possono essere utilizzate negli impianti gas dome-

stici e similari dal contatore del gas fino agli apparecchi di uti-

lizzazione compreso il collegamento diretto ad apparecchi di

tipo fisso o ad incasso con l’esclusione quindi del collegamento

diretto ad apparecchiature mobili come previsto dalla norma di

installazione UNI 7129 : 2015. I tubi CSST EUROGW / EURO-

GAS non sono tubi flessibili e quindi non hanno limitazioni nella

loro lunghezza.

DOMESTIC AND SIMILAR GAS PLANTS

EUROGW / EUROGAS: are PLT-CSST (Corrugated Stein-

less Steel Tubing) pliable corrugated tubes (not

flexible hoses)

in AISI 316L austenitic stainless steel with external protective

covering certi

fied according to EN 15266 standard which can

be used, as speci

fied in the national rules, in domestic and sim-

ilar gas installations from the gas meter up to the gas appli-

ances including the direct connection to the

fixed appliances

thus excluding the direct connection to mobile appliances.

The PLT-CSST EUROGW / EUROGAS tubes are not flexible

hoses and so there is not a limitation in their length.

Sistemi Eurotis / Eurotis systems 37
