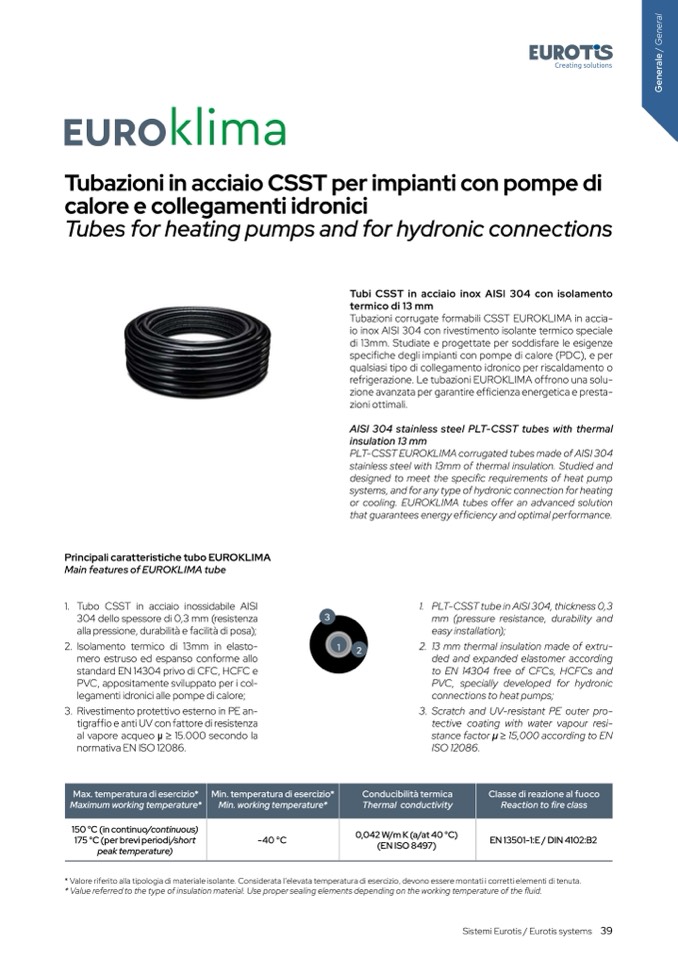

Tubazioni in acciaio CSST per impianti con pompe di

calore e collegamenti idronici

Tubes for heating pumps and for hydronic connections

Principali caratteristiche tubo EUROKLIMA

Main features of EUROKLIMA tube

1. Tubo CSST in acciaio inossidabile AISI

304 dello spessore di 0,3 mm (resistenza

3

alla pressione, durabilit

à e facilit

à di posa);

2. Isolamento termico di 13mm in elasto-

mero estruso ed espanso conforme allo

standard EN 14304 privo di CFC, HCFC e

PVC, appositamente sviluppato per i col-

legamenti idronici alle pompe di calore;

3. Rivestimento protettivo esterno in PE an-

tigraf

fio e anti UV con fattore di resistenza

al vapore acqueo μ ≥ 15.000 secondo la

normativa EN ISO 12086.

Tubi CSST in acciaio inox AISI 304 con isolamento

termico di 13 mm

Tubazioni corrugate formabili CSST EUROKLIMA in accia-

io inox AISI 304 con rivestimento isolante termico speciale

di 13mm. Studiate e progettate per soddisfare le esigenze

specifiche degli impianti con pompe di calore (PDC), e per

qualsiasi tipo di collegamento idronico per riscaldamento o

refrigerazione. Le tubazioni EUROKLIMA offrono una solu-

zione avanzata per garantire ef

ficienza energetica e presta-

zioni ottimali.

AISI 304 stainless steel PLT-CSST tubes with thermal

insulation 13 mm

PLT-CSST EUROKLIMA corrugated tubes made of AISI 304

stainless steel with 13mm of thermal insulation. Studied and

designed to meet the specific requirements of heat pump

systems, and for any type of hydronic connection for heating

or cooling. EUROKLIMA tubes offer an advanced solution

that guarantees energy ef

ficiency and optimal performance.

1. PLT-CSST tube in AISI 304, thickness 0,3

mm (pressure resistance, durability and

easy installation);

1

2

2. 13 mm thermal insulation made of extru-

ded and expanded elastomer according

to EN 14304 free of CFCs, HCFCs and

PVC, specially developed for hydronic

connections to heat pumps;

3. Scratch and UV-resistant PE outer pro-

tective coating with water vapour resi-

stance factor μ ≥ 15,000 according to EN

ISO 12086.

Max. temperatura di esercizio*

Maximum working temperature*

Min. temperatura di esercizio*

Min. working temperature*

Conducibilità termica

Thermal conductivity

Classe di reazione al fuoco

Reaction to

fire class

150 °C (in continuo/continuous)

175 °C (per brevi periodi/short

peak temperature)

-40 °C

0,042 W/m K (a/at 40 °C)

(EN ISO 8497)

EN 13501-1:E / DIN 4102:B2

* Valore riferito alla tipologia di materiale isolante. Considerata l’elevata temperatura di esercizio, devono essere montati i corretti elementi di tenuta.

* Value referred to the type of insulation material. Use proper sealing elements depending on the working temperature of the fluid.
