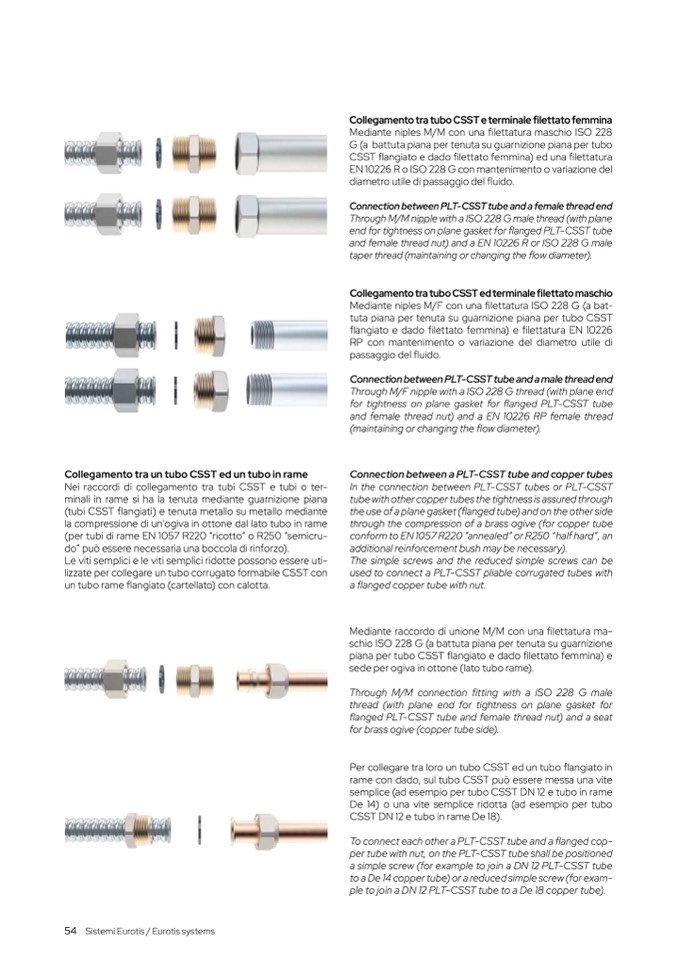

Collegamento tra un tubo CSST ed un tubo in rame

Nei raccordi di collegamento tra tubi CSST e tubi o ter-

minali in rame si ha la tenuta mediante guarnizione piana

(tubi CSST flangiati) e tenuta metallo su metallo mediante

la compressione di un’ogiva in ottone dal lato tubo in rame

(per tubi di rame EN 1057 R220 “ricotto” o R250 “semicru-

do” può essere necessaria una boccola di rinforzo).

Le viti semplici e le viti semplici ridotte possono essere uti-

lizzate per collegare un tubo corrugato formabile CSST con

un tubo rame flangiato (cartellato) con calotta.

Collegamento tra tubo CSST e terminale filettato femmina

Mediante niples M/M con una filettatura maschio ISO 228

G (a battuta piana per tenuta su guarnizione piana per tubo

CSST flangiato e dado filettato femmina) ed una filettatura

EN 10226 R o ISO 228 G con mantenimento o variazione del

diametro utile di passaggio del fluido.

Connection between PLT-CSST tube and a female thread end

Through M/M nipple with a ISO 228 G male thread (with plane

end for tightness on plane gasket for flanged PLT-CSST tube

and female thread nut) and a EN 10226 R or ISO 228 G male

taper thread (maintaining or changing the flow diameter).

Collegamento tra tubo CSST ed terminale filettato maschio

Mediante niples M/F con una filettatura ISO 228 G (a bat-

tuta piana per tenuta su guarnizione piana per tubo CSST

flangiato e dado

filettato femmina) e filettatura EN 10226

RP con mantenimento o variazione del diametro utile di

passaggio del fluido.

Connection between PLT-CSST tube and a male thread end

Through M/F nipple with a ISO 228 G thread (with plane end

for tightness on plane gasket for flanged PLT-CSST tube

and female thread nut) and a EN 10226 RP female thread

(maintaining or changing the flow diameter).

Connection between a PLT-CSST tube and copper tubes

In the connection between PLT-CSST tubes or PLT-CSST

tube with other copper tubes the tightness is assured through

the use of a plane gasket (flanged tube) and on the other side

through the compression of a brass ogive (for copper tube

conform to EN 1057 R220 “annealed” or R250 “half hard”, an

additional reinforcement bush may be necessary).

The simple screws and the reduced simple screws can be

used to connect a PLT-CSST pliable corrugated tubes with

a flanged copper tube with nut.

Mediante raccordo di unione M/M con una filettatura ma-

schio ISO 228 G (a battuta piana per tenuta su guarnizione

piana per tubo CSST flangiato e dado filettato femmina) e

sede per ogiva in ottone (lato tubo rame).

Through M/M connection fitting with a ISO 228 G male

thread (with plane end for tightness on plane gasket for

flanged PLT-CSST tube and female thread nut) and a seat

for brass ogive (copper tube side).

Per collegare tra loro un tubo CSST ed un tubo

flangiato in

rame con dado, sul tubo CSST può essere messa una vite

semplice (ad esempio per tubo CSST DN 12 e tubo in rame

De 14) o una vite semplice ridotta (ad esempio per tubo

CSST DN 12 e tubo in rame De 18).

To connect each other a PLT-CSST tube and a

flanged cop-

per tube with nut, on the PLT-CSST tube shall be positioned

a simple screw (for example to join a DN 12 PLT-CSST tube

to a De 14 copper tube) or a reduced simple screw (for exam-

ple to join a DN 12 PLT-CSST tube to a De 18 copper tube).

54 Sistemi Eurotis / Eurotis systems
