C

B

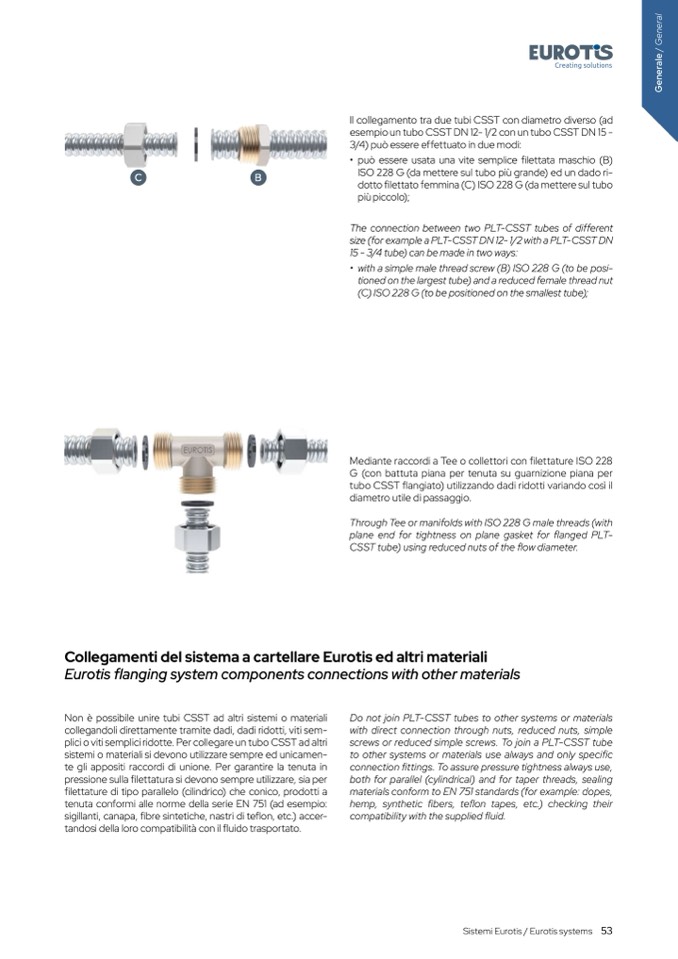

Il collegamento tra due tubi CSST con diametro diverso (ad

esempio un tubo CSST DN 12- 1/2 con un tubo CSST DN 15 -

3/4) pu

ò essere effettuato in due modi:

• può essere usata una vite semplice filettata maschio (B)

ISO 228 G (da mettere sul tubo più grande) ed un dado ri-

dotto filettato femmina (C) ISO 228 G (da mettere sul tubo

più piccolo);

The connection between two PLT-CSST tubes of different

size (for example a PLT-CSST DN 12- 1/2 with a PLT-CSST DN

15 - 3/4 tube) can be made in two ways:

• with a simple male thread screw (B) ISO 228 G (to be posi-

tioned on the largest tube) and a reduced female thread nut

(C) ISO 228 G (to be positioned on the smallest tube);

Collegamenti del sistema a cartellare Eurotis ed altri materiali

Eurotis

flanging system components connections with other materials

Non è possibile unire tubi CSST ad altri sistemi o materiali

collegandoli direttamente tramite dadi, dadi ridotti, viti sem-

plici o viti semplici ridotte. Per collegare un tubo CSST ad altri

sistemi o materiali si devono utilizzare sempre ed unicamen-

te gli appositi raccordi di unione. Per garantire la tenuta in

pressione sulla

filettatura si devono sempre utilizzare, sia per

filettature di tipo parallelo (cilindrico) che conico, prodotti a

tenuta conformi alle norme della serie EN 751 (ad esempio:

sigillanti, canapa, fibre sintetiche, nastri di te

flon, etc.) accer-

tandosi della loro compatibilit

à con il fluido trasportato.

Do not join PLT-CSST tubes to other systems or materials

with direct connection through nuts, reduced nuts, simple

screws or reduced simple screws. To join a PLT-CSST tube

to other systems or materials use always and only speci

fic

connection

fittings. To assure pressure tightness always use,

both for parallel (cylindrical) and for taper threads, sealing

materials conform to EN 751 standards (for example: dopes,

hemp, synthetic

fibers, teflon tapes, etc.) checking their

compatibility with the supplied fluid.

Mediante raccordi a Tee o collettori con filettature ISO 228

G (con battuta piana per tenuta su guarnizione piana per

tubo CSST

flangiato) utilizzando dadi ridotti variando così il

diametro utile di passaggio.

Through Tee or manifolds with ISO 228 G male threads (with

plane end for tightness on plane gasket for

flanged PLT-

CSST tube) using reduced nuts of the

flow diameter.

Sistemi Eurotis / Eurotis systems 53
