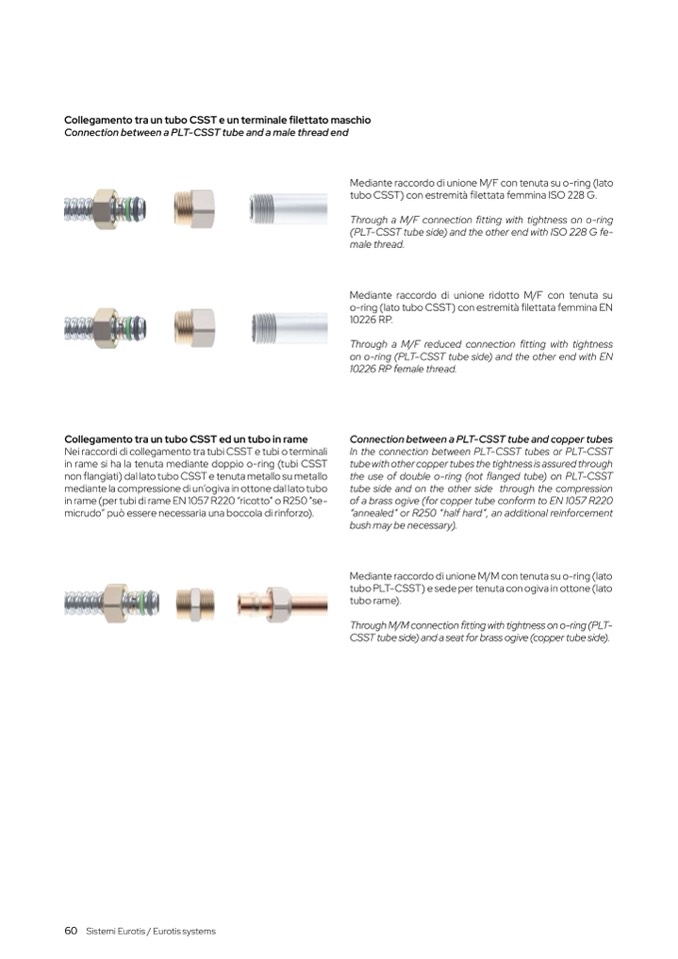

Collegamento tra un tubo CSST e un terminale filettato maschio

Connection between a PLT-CSST tube and a male thread end

Collegamento tra un tubo CSST ed un tubo in rame

Nei raccordi di collegamento tra tubi CSST e tubi o terminali

in rame si ha la tenuta mediante doppio o-ring (tubi CSST

non

flangiati) dal lato tubo CSST e tenuta metallo su metallo

mediante la compressione di un’ogiva in ottone dal lato tubo

in rame (per tubi di rame EN 1057 R220 “ricotto” o R250 “se-

micrudo” pu

ò essere necessaria una boccola di rinforzo).

Mediante raccordo di unione M/F con tenuta su o-ring (lato

tubo CSST) con estremit

à filettata femmina ISO 228 G.

Through a M/F connection fitting with tightness on o-ring

(PLT-CSST tube side) and the other end with ISO 228 G fe-

male thread.

Mediante raccordo di unione ridotto M/F con tenuta su

o-ring (lato tubo CSST) con estremità filettata femmina EN

10226 RP.

Through a M/F reduced connection

fitting with tightness

on o-ring (PLT-CSST tube side) and the other end with EN

10226 RP female thread.

Connection between a PLT-CSST tube and copper tubes

In the connection between PLT-CSST tubes or PLT-CSST

tube with other copper tubes the tightness is assured through

the use of double o-ring (not

flanged tube) on PLT-CSST

tube side and on the other side through the compression

of a brass ogive (for copper tube conform to EN 1057 R220

“annealed” or R250 “half hard”, an additional reinforcement

bush may be necessary).

Mediante raccordo di unione M/M con tenuta su o-ring (lato

tubo PLT-CSST) e sede per tenuta con ogiva in ottone (lato

tubo rame).

Through M/M connection fitting with tightness on o-ring (PLT-

CSST tube side) and a seat for brass ogive (copper tube side).

60 Sistemi Eurotis / Eurotis systems
