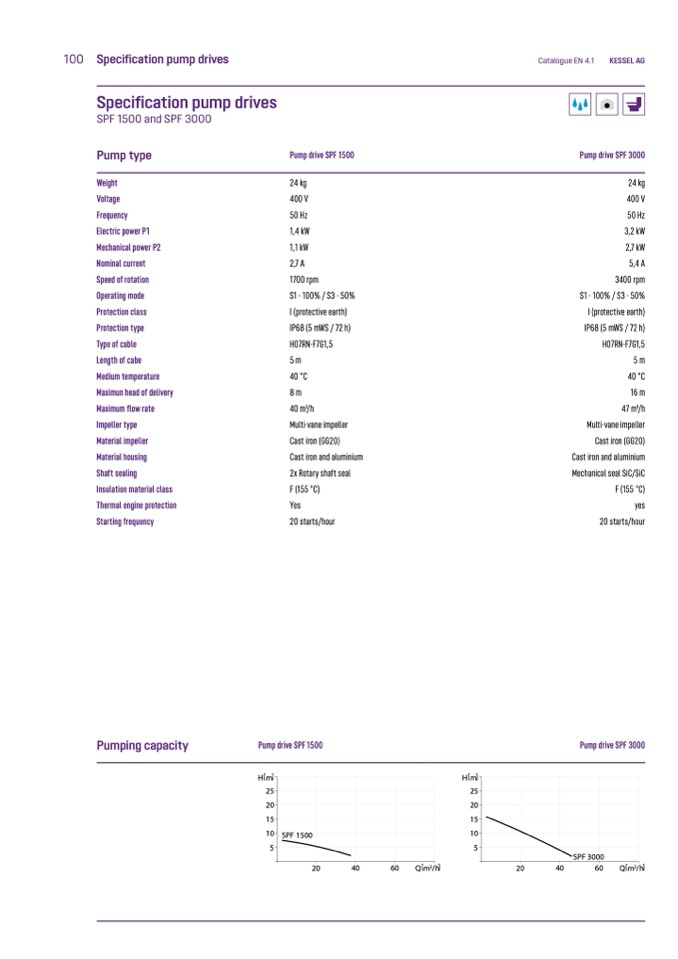

100 Specification pump drives

Specification pump drives

SPF 1500 and SPF 3000

Pump type

Weight

Voltage

Frequency

Electric power P1

Mechanical power P2

Nominal current

Speed of rotation

Operatingmode

Protection class

Protection type

Type of cable

Lengthofcabe

Medium temperature

Maximun head of delivery

Maximum flow rate

Impeller type

Material impeller

Material housing

Shaft sealing

Insulation material class

Thermal engine protection

Starting frequency

Pump drive SPF 1500

Catalogue EN 4.1

KESSEL AG

Pump drive SPF 3000

Pumping capacity

Pump drive SPF 1500

H[m]

H[m]

25

25

20

20

15

15

10

10

5

5

20

40

60

Q[m

3

/h]

Pump drive SPF 3000

60

Q[m

3

/h]

24 kg

400 V

50 Hz

1,4 kW

1,1 kW

2,7 A

1700 rpm

S1-100%/S3-50%

S1-100%/S3-50%

I (protective earth)

I (protective earth)

IP68(5mWS/72h)

IP68(5mWS/72h)

H07RN-F7G1,5

H07RN-F7G1,5

5m

5m

40 °C

40 °C

8m

16m

40 m3/h

Multi-vane impeller

Cast iron (GG20)

Cast iron and aluminium

2x Rotary shaft seal

F (155 °C)

Yes

yes

20 starts/hour

20 starts/hour

47 m3/h

Multi-vane impeller

Cast iron (GG20)

Cast iron and aluminium

Mechanical seal SiC/SiC

F (155 °C)

24 kg

400 V

50 Hz

3,2 kW

2,7 kW

5,4 A

3400 rpm

SPF 1500

SPF 3000

20

40
