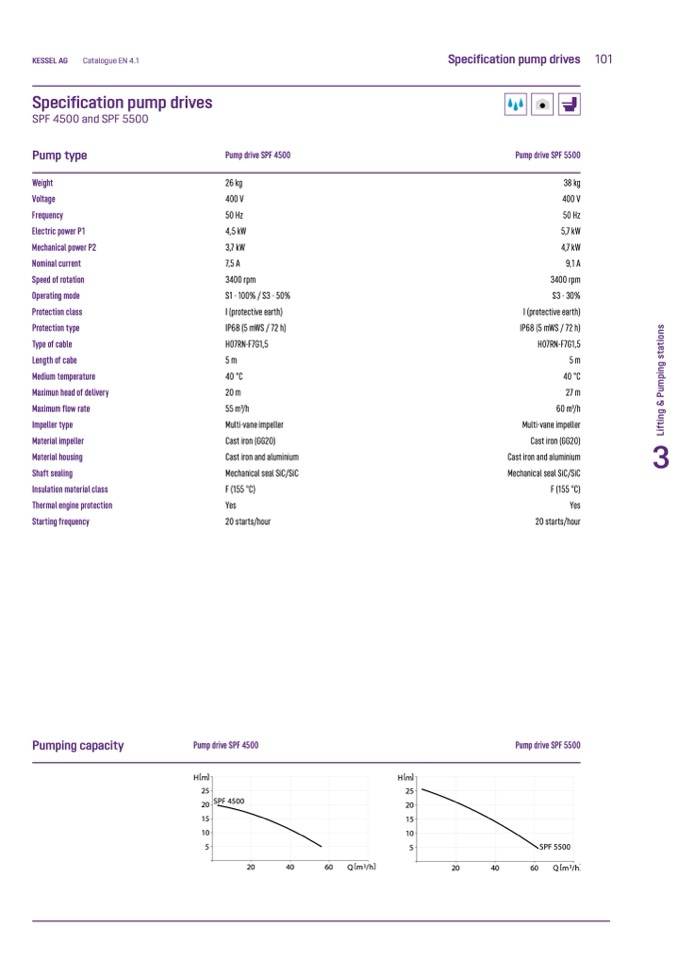

Specification pump drives 101

Speci

fication pump drives

SPF 4500 and SPF 5500

Pump type

Weight

Voltage

Frequency

Electric power P1

Mechanical power P2

Nominal current

Speed of rotation

Operating mode

Protection class

Protection type

Type of cable

Lengthofcabe

Medium temperature

Maximun head of delivery

Maximum flow rate

Impeller type

Material impeller

Material housing

Shaft sealing

Insulation material class

Thermal engine protection

Starting frequency

Pump drive SPF 4500

Pump drive SPF 5500

Pumping capacity

Pump drive SPF 4500

H[m]

H[m]

25

25

20

20

15

15

10

10

5

5

20

40

60

Q[m

3

/h]

Pump drive SPF 5500

20

40

60

Q[m

3

/h]

26 kg

400 V

50 Hz

4,5 kW

3,7 kW

7,5 A

3400 rpm

S1-100%/S3-50%

S3-30%

I (protective earth)

I (protective earth)

IP68(5mWS/72h)

IP68(5mWS/72h)

H07RN-F7G1,5

H07RN-F7G1,5

5m

5m

40 °C

40 °C

20m

27m

55 m3/h

Multi-vane impeller

Cast iron (GG20)

Cast iron and aluminium

Mechanical seal SiC/SiC

F (155 °C)

Yes

Yes

20 starts/hour

20 starts/hour

60 m3/h

Multi-vane impeller

Cast iron (GG20)

Cast iron and aluminium

Mechanical seal SiC/SiC

F (155 °C)

38 kg

400 V

50 Hz

5,7 kW

4,7 kW

9,1 A

3400 rpm

SPF 4500

SPF 5500
