106 3.1 Lifting stations

Catalogue EN 4.1

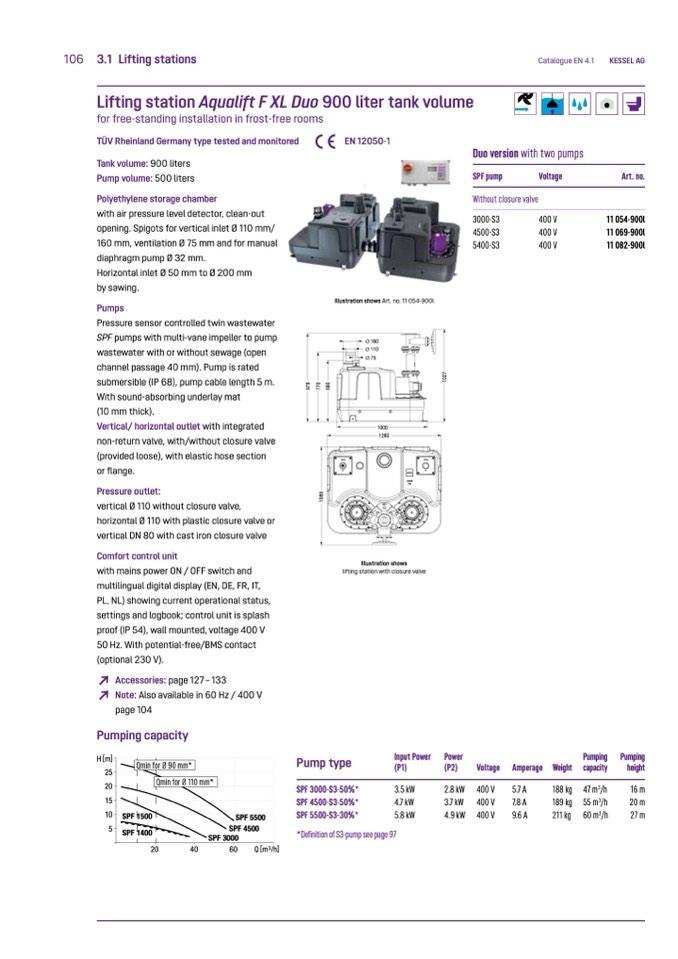

Lifting station Aqualift F XL Duo 900 liter tank volume

KESSEL AG

Art. no.

11 054-900l

11 069-900l

11 082-900l

for free-standing installation in frost-free rooms

TÜV Rheinland Germany type tested and monitored

Tank volume: 900 liters

Pump volume: 500 liters

Polyethylene storage chamber

with air pressure level detector, clean-out

opening. Spigots for vertical inlet Ø 110 mm/

160 mm, ventilation Ø 75 mm and for manual

diaphragm pump Ø 32 mm.

Horizontal inlet Ø 50 mm to Ø 200 mm

by sawing.

Pumps

Pressure sensor controlled twin wastewater

SPF pumps with multi-vane impeller to pump

wastewater with or without sewage (open

channel passage 40 mm). Pump is rated

submersible (IP 68), pump cable length 5 m.

With sound-absorbing underlay mat

(10 mm thick).

Vertical/ horizontal outlet with integrated

non-return valve, with/without closure valve

(provided loose), with elastic hose section

or flange.

Pressure outlet:

vertical Ø 110 without closure valve,

horizontal Ø 110 with plastic closure valve or

vertical DN 80 with cast iron closure valve

Comfort control unit

with mains power ON / OFF switch and

multilingual digital display (EN, DE, FR, IT,

PL, NL) showing current operational status,

settings and logbook; control unit is splash

proof (IP 54), wall mounted, voltage 400 V

50 Hz. With potential-free/BMS contact

(optional 230 V).

↗

Accessories: page 127 – 133

↗

Note: Also available in 60 Hz / 400 V

EN 12050-1

Duo version with two pumps

page 104

Pumping capacity

H [m]

25

20

15

10

5

Qmin for Ø 90 mm*

Qmin for Ø 110 mm*

Pump type

SPF 3000-S3-50%*

SPF 4500-S3-50%*

SPF 5500-S3-30%*

Input Power

(P1)

3.5 kW

4.7kW

5.8 kW

Power

(P2)

Voltage

Amperage

Weight

Pumping Pumping

capacity

height

47 m

3

/h

16m

55 m

3

/h

20m

60 m

3

/h

27m

SPF 1500

SPF 1400

20

SPF 5500

SPF 4500

SPF 3000

40

60

Q [m

3

/h]

2.8kW 400V

5.7A

188kg

3.7kW 400V

7.8A

189kg

4.9kW 400V

9.6A

211kg

Illustration shows Art. no. 11 054-900l

Ø 160

Ø 110

Ø 75

1000

1260

Illustration shows

lifting station with closure valve

*Definition of S3-pump see page 97

SPF pump

Without closure valve

Voltage

400 V

400 V

400 V

3000-S3

4500-S3

5400-S3

1

0

8

9

9

7

8

7

7

0

6

8

0

1

0

2

7
