KESSEL AG

Catalogue EN 4.1

3.1 Lifting stations 107

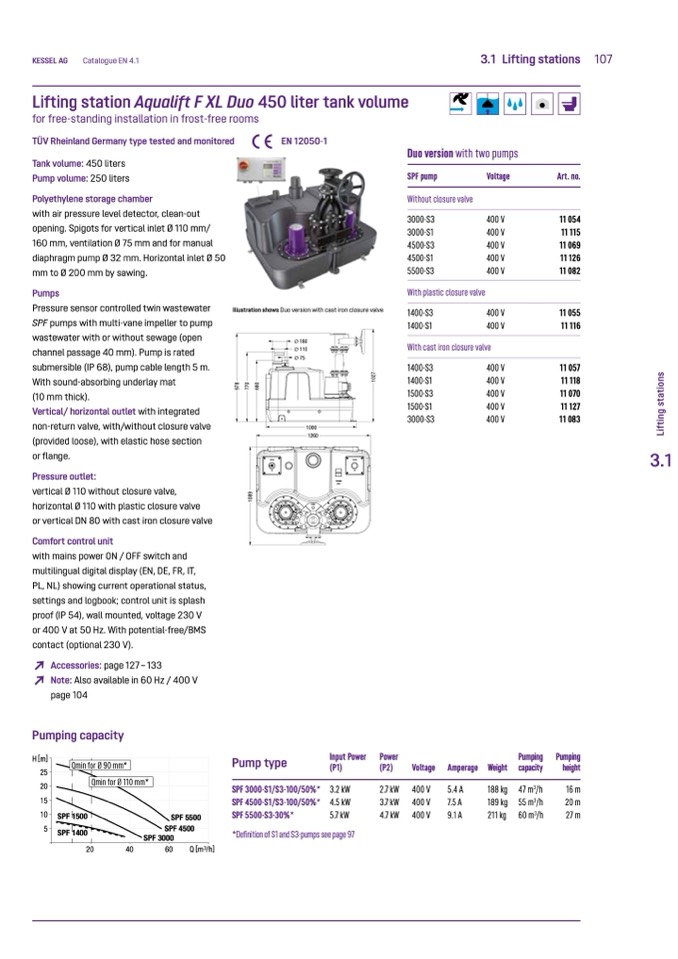

Lifting station Aqualift F XL Duo 450 liter tank volume

for free-standing installation in frost-free rooms

TÜV Rheinland Germany type tested and monitored

Tank volume: 450 liters

Pump volume: 250 liters

Polyethylene storage chamber

with air pressure level detector, clean-out

opening. Spigots for vertical inlet Ø 110 mm/

160 mm, ventilation Ø 75 mm and for manual

diaphragm pump Ø 32 mm. Horizontal inlet Ø 50

mm to Ø 200 mm by sawing.

Pumps

Pressure sensor controlled twin wastewater

SPF pumps with multi-vane impeller to pump

wastewater with or without sewage (open

channel passage 40 mm). Pump is rated

submersible (IP 68), pump cable length 5 m.

With sound-absorbing underlay mat

(10 mm thick).

Vertical/ horizontal outlet with integrated

non-return valve, with/without closure valve

(provided loose), with elastic hose section

or flange.

Pressure outlet:

vertical Ø 110 without closure valve,

horizontal Ø 110 with plastic closure valve

or vertical DN 80 with cast iron closure valve

Comfort control unit

with mains power ON / OFF switch and

multilingual digital display (EN, DE, FR, IT,

PL, NL) showing current operational status,

settings and logbook; control unit is splash

proof (IP 54), wall mounted, voltage 230 V

or 400 V at 50 Hz. With potential-free/BMS

contact (optional 230 V).

↗

Accessories: page 127 – 133

↗

Note: Also available in 60 Hz / 400 V

page 104

Pumping capacity

H [m]

25

20

15

10

5

Qmin for Ø 90 mm*

Qmin for Ø 110 mm*

Pump type

Input Power

(P1)

3.2 kW

4.5 kW

5.7kW

Power

(P2)

Voltage Amperage

Weight

Pumping

capacity

47 m

3

/h

55 m

3

/h

60 m

3

/h

Pumping

height

16m

20m

27m

SPF 1500

SPF 1400

20

SPF 5500

SPF 4500

SPF 3000

40

60

Q [m

3

/h]

SPF 3000-S1/S3-100/50%*

SPF 4500-S1/S3-100/50%*

SPF 5500-S3-30%*

2.7kW 400V

5.4A

188kg

3.7kW 400V

7.5A

189kg

4.7kW 400V

9.1A

211kg

EN 12050-1

Duo version with two pumps

Illustration shows Duo version with cast iron closure valve

SPF pump

Without closure valve

3000-S3

3000-S1

4500-S3

4500-S1

5500-S3

With plastic closure valve

1400-S3

1400-S1

Voltage

400 V

400 V

400 V

400 V

400 V

400 V

400 V

Art. no.

11 054

11 115

11 069

11 126

11 082

11 055

11 116

11 057

11 118

11 070

11 127

11 083

*Definition of S1 and S3-pumps see page 97

Ø 160

Ø 110

Ø 75

1000

1260

With cast iron closure valve

1400-S3

1400-S1

1500-S3

1500-S1

3000-S3

400 V

400 V

400 V

400 V

400 V

1

0

8

9

9

7

8

7

7

0

6

8

0

L

i

f

t

i

n

g

s

t

a

t

i

o

n

s

1

0

2

7

3.1
