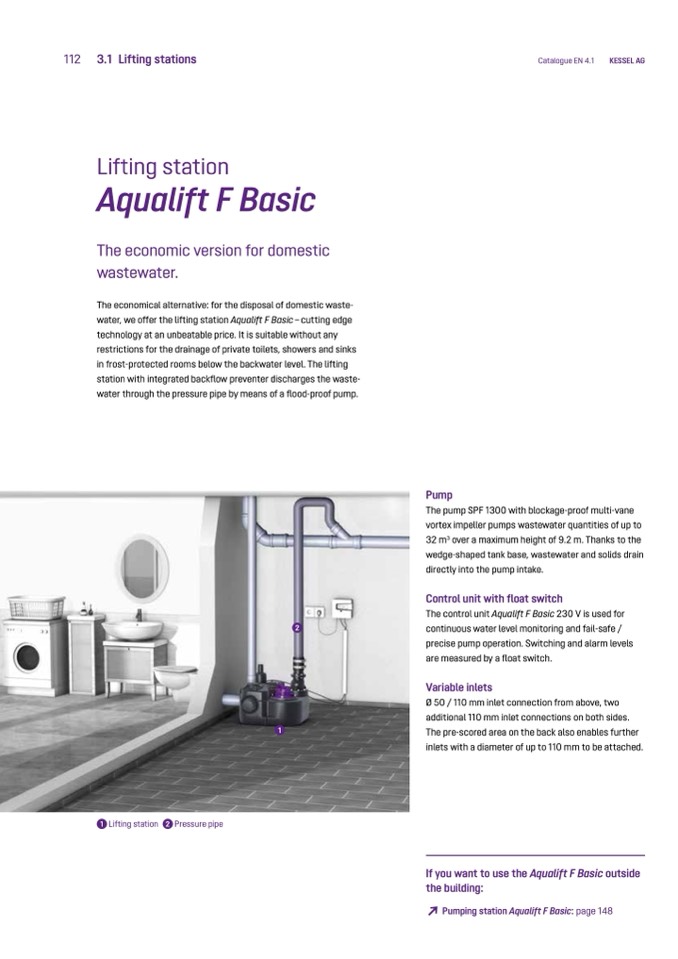

112 3.1 Lifting stations

Catalogue EN 4.1

KESSEL AG

Lifting station

Aqualift F Basic

The economic version for domestic

wastewater.

The economical alternative: for the disposal of domestic waste-

water, we offer the lifting station Aqualift F Basic – cutting edge

technology at an unbeatable price. It is suitable without any

restrictions for the drainage of private toilets, showers and sinks

in frost-protected rooms below the backwater level. The lifting

station with integrated backflow preventer discharges the waste-

water through the pressure pipe by means of a flood-proof pump.

2

1

Pump

The pump SPF 1300 with blockage-proof multi-vane

vortex impeller pumps wastewater quantities of up to

32 m

3

over a maximum height of 9.2 m. Thanks to the

wedge-shaped tank base, wastewater and solids drain

directly into the pump intake.

Control unit with float switch

The control unit Aqualift F Basic 230 V is used for

continuous water level monitoring and fail-safe /

precise pump operation. Switching and alarm levels

are measured by a float switch.

Variable inlets

Ø 50 / 110 mm inlet connection from above, two

additional 110 mm inlet connections on both sides.

The pre-scored area on the back also enables further

inlets with a diameter of up to 110 mm to be attached.

If you want to use the Aqualift F Basic outside

the building:

↗

Pumping station Aqualift F Basic: page 148

1 Lifting station

2 Pressure pipe
