KESSEL AG

Catalogue EN 4.1

3.1 Lifting stations 111

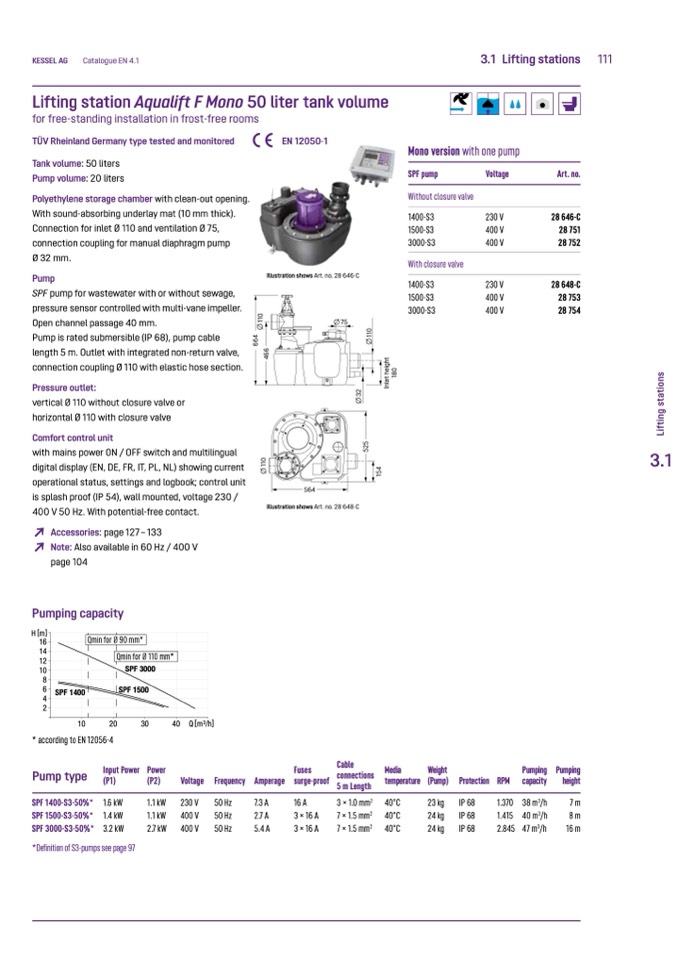

Lifting station Aqualift F Mono 50 liter tank volume

for free-standing installation in frost-free rooms

TÜV Rheinland Germany type tested and monitored

Tank volume: 50 liters

Pump volume: 20 liters

Polyethylene storage chamber with clean-out opening.

With sound-absorbing underlay mat (10 mm thick).

Connection for inlet Ø 110 and ventilation Ø 75,

connection coupling for manual diaphragm pump

Ø 32 mm.

Pump

SPF pump for wastewater with or without sewage,

pressure sensor controlled with multi-vane impeller.

Open channel passage 40 mm.

Pump is rated submersible (IP 68), pump cable

length 5 m. Outlet with integrated non-return valve,

connection coupling Ø 110 with elastic hose section.

Pressure outlet:

vertical Ø 110 without closure valve or

horizontal Ø 110 with closure valve

Comfort control unit

with mains power ON / OFF switch and multilingual

digital display (EN, DE, FR, IT, PL, NL) showing current

operational status, settings and logbook; control unit

is splash proof (IP 54), wall mounted, voltage 230 /

400 V 50 Hz. With potential-free contact.

↗

Accessories: page 127 – 133

↗

Note: Also available in 60 Hz / 400 V

EN 12050-1

Illustration shows Art. no. 28 646-C

Ø75

Mono version with one pump

Ø

1

1

0

4

6

6

6

6

4

Ø

1

1

0

1

5

4

Ø

3

2

5

2

5

Ø

1

1

0

I

n

l

e

t

h

e

i

g

h

t

L

i

f

t

i

n

g

s

t

a

t

i

o

n

s

1

8

0

page 104

Pumping capacity

H [m]

16

14

12

10

8

6

4

2

SPF 1400

10

Qmin for Ø 90 mm*

Qmin for Ø 110 mm*

SPF 3000

SPF 1500

20

30

40

* according to EN 12056-4

Pump type

Input Power

(P1)

Power

Fuses

(P2)

Voltage Frequency Amperage surge-proof

1.1kW

230V

50Hz

7.3A

16A

1.1kW

400V

50Hz

2.7A

3×16A

2.7kW 400V

50Hz

5.4A

3×16A

Cable

Media

Weight

Pumping Pumping

SPF1400-S3-50%* 1.6kW

SPF1500-S3-50%* 1.4kW

SPF3000-S3-50%* 3.2kW

*Definition of S3-pumps see page 97

3×1.0mm

2

40°C

23kg

IP68

1.370 38m

3

/h

7m

7×1.5mm

2

40°C

24kg

IP68

1.415 40m

3

/h

8m

7×1.5mm

2

40°C

24kg

IP68

2.845 47m

3

/h

16m

Q [m

3

/h]

564

Illustration shows Art. no. 28 648-C

SPF pump

Without closure valve

1400-S3

1500-S3

3000-S3

With closure valve

1400-S3

1500-S3

3000-S3

Voltage

230 V

400 V

400 V

230 V

400 V

400 V

Art. no.

28 646-C

28 751

28 752

28 648-C

28 753

28 754

connections

temperature (Pump) Protection RPM capacity

height

5 m Length

3.1
