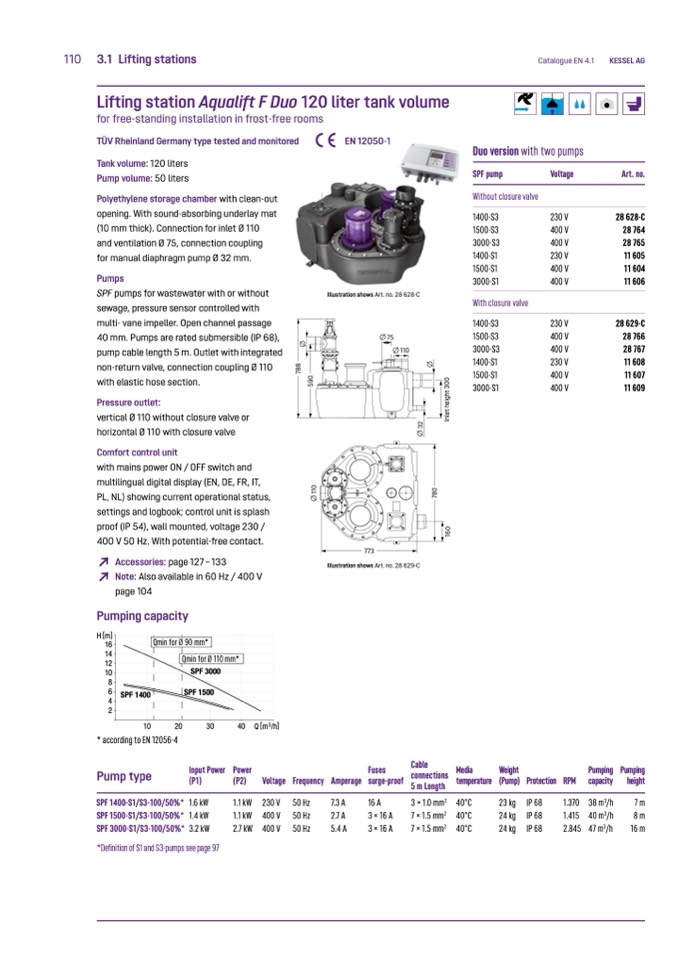

110 3.1 Lifting stations

Lifting station Aqualift F Duo 120 liter tank volume

Catalogue EN 4.1

KESSEL AG

Art. no.

28 628-C

28 764

28 765

11 605

11 604

11 606

28 629-C

28 766

28 767

11 608

11 607

11 609

for free-standing installation in frost-free rooms

TÜV Rheinland Germany type tested and monitored

Tank volume: 120 liters

Pump volume: 50 liters

Polyethylene storage chamber with clean-out

opening. With sound-absorbing underlay mat

(10 mm thick). Connection for inlet Ø 110

and ventilation Ø 75, connection coupling

for manual diaphragm pump Ø 32 mm.

Pumps

SPF pumps for wastewater with or without

sewage, pressure sensor controlled with

multi- vane impeller. Open channel passage

40 mm. Pumps are rated submersible (IP 68),

pump cable length 5 m. Outlet with integrated

non-return valve, connection coupling Ø 110

with elastic hose section.

Pressure outlet:

vertical Ø 110 without closure valve or

horizontal Ø 110 with closure valve

Comfort control unit

with mains power ON / OFF switch and

multilingual digital display (EN, DE, FR, IT,

PL, NL) showing current operational status,

settings and logbook; control unit is splash

proof (IP 54), wall mounted, voltage 230 /

400 V 50 Hz. With potential-free contact.

↗

Accessories: page 127 – 133

↗

Note: Also available in 60 Hz / 400 V

EN 12050-1

Duo version with two pumps

page 104

Pumping capacity

H [m]

16

14

12

10

8

6

4

2

Qmin for Ø 90 mm*

Qmin for Ø 110 mm*

SPF 1400

10

SPF 3000

SPF 1500

20

30

40

Power

(P2)

Q [m

3

/h]

Fuses

Voltage Frequency Amperage surge-proof

* according to EN 12056-4

Pump type

Input Power

(P1)

Cable

Media

Weight

Pumping Pumping

SPF1400-S1/S3-100/50%* 1.6kW

SPF1500-S1/S3-100/50%* 1.4kW

SPF3000-S1/S3-100/50%* 3.2kW

*Definition of S1 and S3-pumps see page 97

1.1kW 230V 50Hz

7.3A

16A

1.1kW 400V 50Hz

2.7A

3×16A

2.7kW 400V 50Hz

5.4A

3×16A

3×1.0mm

2

40°C

23kg IP68

1.370 38m

3

/h

7m

7×1.5mm

2

40°C

24kg IP68

1.415 40m

3

/h

8m

7×1.5mm

2

40°C

24kg IP68

2.845 47m

3

/h

16m

Illustration shows Art. no. 28 628-C

Ø 75

Ø 110

SPF pump

Without closure valve

1400-S3

1500-S3

3000-S3

1400-S1

1500-S1

3000-S1

With closure valve

1400-S3

1500-S3

3000-S3

1400-S1

1500-S1

3000-S1

Voltage

230 V

400 V

400 V

230 V

400 V

400 V

230 V

400 V

400 V

230 V

400 V

400 V

1

6

0

Ø

1

1

0

5

9

0

7

8

0

Ø

3

2

I

n

l

e

t

h

e

i

g

h

t

3

0

0

Ø

7

8

8

Ø

773

Illustration shows Art. no. 28 629-C

connections

temperature (Pump) Protection RPM capacity height

5 m Length
