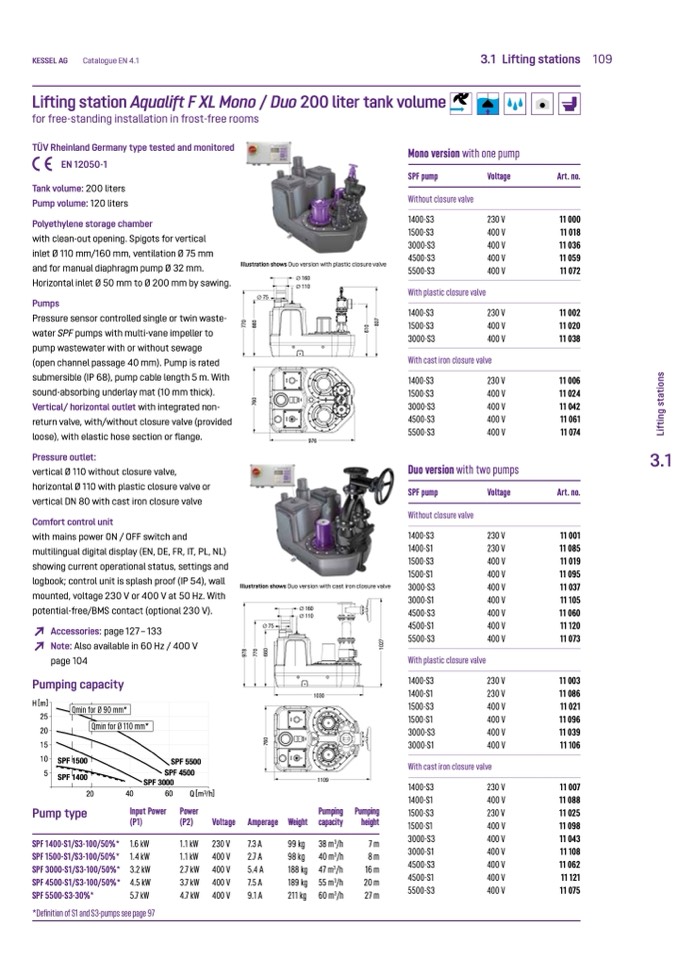

Lifting station Aqualift F XL Mono / Duo 200 liter tank volume
for free-standing installation in frost-free rooms
TÜV Rheinland Germany type tested and monitored
EN 12050-1
Tank volume: 200 liters
Pump volume: 120 liters
Polyethylene storage chamber
with clean-out opening. Spigots for vertical
inlet Ø 110 mm/160 mm, ventilation Ø 75 mm
and for manual diaphragm pump Ø 32 mm.
Horizontal inlet Ø 50 mm to Ø 200 mm by sawing.
Pumps
Pressure sensor controlled single or twin waste-
water SPF pumps with multi-vane impeller to
pump wastewater with or without sewage
(open channel passage 40 mm). Pump is rated
submersible (IP 68), pump cable length 5 m. With
sound-absorbing underlay mat (10 mm thick).
Vertical/ horizontal outlet with integrated non-
return valve, with/without closure valve (provided
loose), with elastic hose section or flange.
Pressure outlet:
vertical Ø 110 without closure valve,
horizontal Ø 110 with plastic closure valve or
vertical DN 80 with cast iron closure valve
Comfort control unit
with mains power ON / OFF switch and
multilingual digital display (EN, DE, FR, IT, PL, NL)
showing current operational status, settings and
logbook; control unit is splash proof (IP 54), wall
mounted, voltage 230 V or 400 V at 50 Hz. With
potential-free/BMS contact (optional 230 V).
↗
Accessories: page 127 – 133
Note: Also available in 60 Hz / 400 V
page 104
Mono version with one pump
Pumping capacity
H [m]
1030
25
20
15
10 SPF 1500
SPF 5500
SPF 4500
With cast iron closure valve
1400-S3
230 V
1400-S1
400 V
1500-S3
230 V
1500-S1
400 V
3000-S3
400 V
3000-S1
400 V
4500-S3
400 V
4500-S1
400 V
5500-S3
400 V
Qmin for Ø 90 mm*
Qmin for Ø 110 mm*
5
SPF 1400
20
Pump type
SPF 1400-S1/S3-100/50%*
SPF 1500-S1/S3-100/50%*
SPF 3000-S1/S3-100/50%*
SPF 4500-S1/S3-100/50%*
SPF 5500-S3-30%*
40
SPF 3000
60
Q [m
3
/h]
1109
Pumping
capacity
*Definition of S1 and S3-pumps see page 97
Input Power
(P1)
1.6 kW
1.4 kW
3.2 kW
4.5 kW
5.7kW
Power
(P2)
1.1 kW
1.1 kW
2.7kW
3.7kW
4.7kW
Voltage
230 V
400 V
400 V
400 V
400 V
Amperage
7.3A
2.7A
5.4 A
7.5A
9.1 A
Weight
99 kg
98 kg
188 kg
189 kg
211 kg
Pumping
height
Illustration shows Duo version with plastic closure valve
Ø 160
SPF pump
Without closure valve
1400-S3
1500-S3
3000-S3
4500-S3
5500-S3
With plastic closure valve
1400-S3
1500-S3
3000-S3
Voltage
230 V
400 V
400 V
400 V
400 V
230 V
400 V
400 V
Art. no.
11 000
11 018
11 036
11 059
11 072
11 002
11 020
11 038
11 006
11 024
11 042
11 061
11074
Art. no.
11 001
11 085
11 019
11 095
11 037
11 105
11 060
11 120
11 073
11 003
11 086
11 021
11 096
11 039
11 106
11 007
11 088
11 025
11 098
11 043
11 108
11 062
11 121
11 075
Ø 75
Ø 75
Ø 110
Ø 110
976
With cast iron closure valve
1400-S3
230 V
1500-S3
400 V
3000-S3
400 V
4500-S3
400 V
5500-S3
400 V
Duo version with two pumps
Illustration shows Duo version with cast iron closure valve
Ø 160
SPF pump
Without closure valve
1400-S3
1400-S1
1500-S3
1500-S1
3000-S3
3000-S1
4500-S3
4500-S1
5500-S3
With plastic closure valve
1400-S3
1400-S1
1500-S3
1500-S1
3000-S3
3000-S1
Voltage
230 V
230 V
400 V
400 V
400 V
400 V
400 V
400 V
400 V
230 V
230 V
400 V
400 V
400 V
400 V
38 m
3
/h
7m
40 m
3
/h
8m
47 m
3
/h
16m
55 m
3
/h
20m
60 m
3
/h
27m
