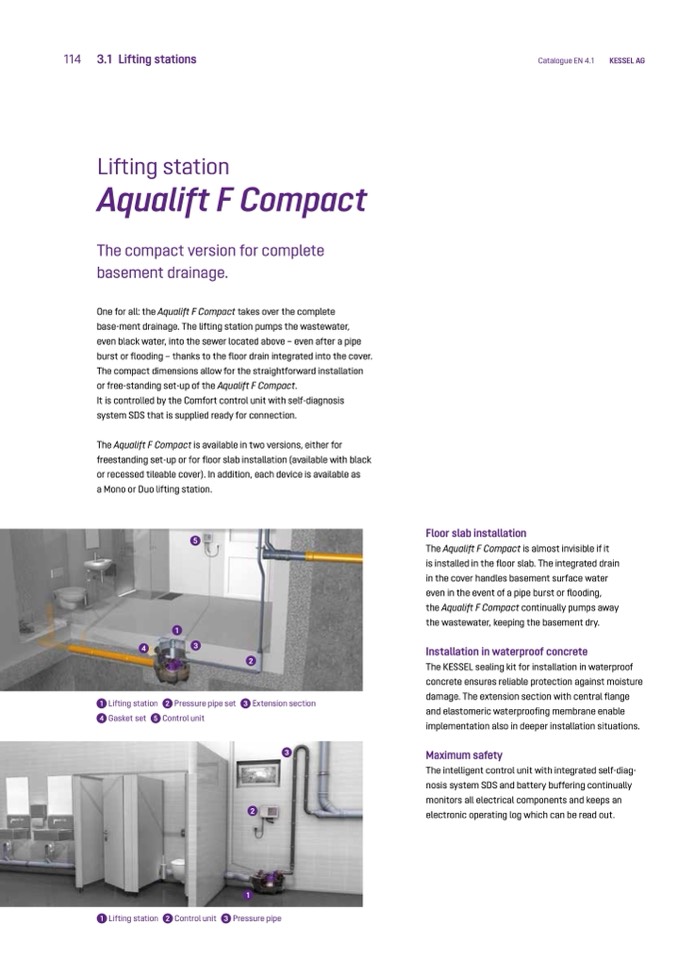

Lifting station

Aqualift F Compact

The compact version for complete

basement drainage.

One for all: the Aqualift F Compact takes over the complete

base-ment drainage. The lifting station pumps the wastewater,

even black water, into the sewer located above – even after a pipe

burst or flooding – thanks to the floor drain integrated into the cover.

The compact dimensions allow for the straightforward installation

or free-standing set-up of the Aqualift F Compact.

It is controlled by the Comfort control unit with self-diagnosis

system SDS that is supplied ready for connection.

The Aqualift F Compact is available in two versions, either for

freestanding set-up or for floor slab installation (available with black

or recessed tileable cover). In addition, each device is available as

a Mono or Duo lifting station.

4

1 Lifting station 2

5

1

3

Floor slab installation

The Aqualift F Compact is almost invisible if it

is installed in the floor slab. The integrated drain

in the cover handles basement surface water

even in the event of a pipe burst or flooding,

the Aqualift F Compact continually pumps away

the wastewater, keeping the basement dry.

Installation in waterproof concrete

The KESSEL sealing kit for installation in waterproof

concrete ensures reliable protection against moisture

damage. The extension section with central flange

and elastomeric waterproofing membrane enable

implementation also in deeper installation situations.

Maximum safety

The intelligent control unit with integrated self-diag-

nosis system SDS and battery buffering continually

monitors all electrical components and keeps an

electronic operating log which can be read out.

Pressure pipe set

Control unit

2

3 Extension section

4 Gasket set

5

3

1 Lifting station

2 Control unit

2

1

3 Pressure pipe
