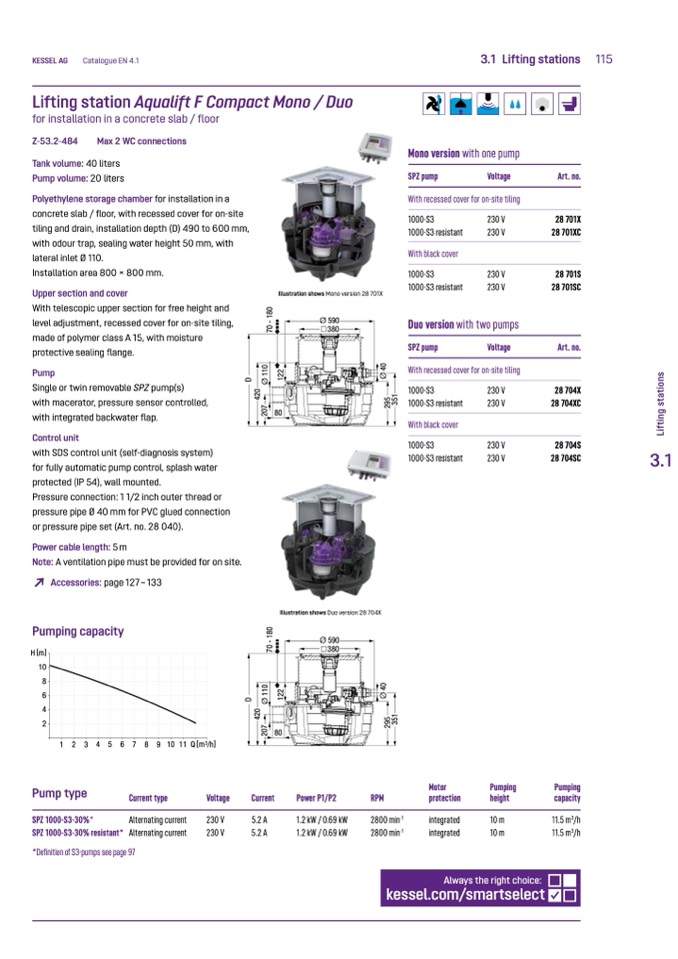

KESSEL AG

Catalogue EN 4.1

3.1 Lifting stations 115

Lifting station Aqualift F Compact Mono / Duo

for installation in a concrete slab / floor

Z-53.2-484

Max 2 WC connections

Tank volume: 40 liters

Pump volume: 20 liters

Polyethylene storage chamber for installation in a

concrete slab / floor, with recessed cover for on-site

tiling and drain, installation depth (D) 490 to 600 mm,

with odour trap, sealing water height 50 mm, with

lateral inlet Ø 110.

Installation area 800 × 800 mm.

Upper section and cover

With telescopic upper section for free height and

level adjustment, recessed cover for on-site tiling,

made of polymer class A 15, with moisture

protective sealing flange.

Pump

Single or twin removable SPZ pump(s)

with macerator, pressure sensor controlled,

with integrated backwater flap.

Control unit

with SDS control unit (self-diagnosis system)

for fully automatic pump control, splash water

protected (IP 54), wall mounted.

Pressure connection: 1 1/2 inch outer thread or

pressure pipe Ø 40 mm for PVC glued connection

or pressure pipe set (Art. no. 28 040).

Power cable length: 5 m

Note: A ventilation pipe must be provided for on site.

↗

Accessories: page 127 – 133

Pumping capacity

Mono version with one pump

SPZ pump

Voltage

With recessed cover for on-site tiling

Art. no.

28 701X

28 701XC

28 701S

28 701SC

Art. no.

28 704X

28 704XC

28 704S

28 704SC

H [m]

10

8

6

4

2

Pump type

SPZ 1000-S3-30%*

SPZ 1000-S3-30% resistant*

380

1 2 3 4 5 6

7 8 9 10 11 Q[m

3

/h]

*Definition of S3-pumps see page 97

Current type

Alternating current

Alternating current

Voltage

230 V

230 V

Current

5.2 A

5.2 A

Power P1/P2

1.2 kW / 0.69 kW

1.2 kW / 0.69 kW

RPM

2800 min

-1

2800 min

-1

Motor

protection

integrated

integrated

Pumping

height

10 m

10 m

Pumping

capacity

11.5 m

3

/h

11.5 m

3

/h

Illustration shows Mono version 28 701X

Ø 590

380

80

1000-S3

1000-S3 resistant

With black cover

1000-S3

1000-S3 resistant

230 V

230 V

230 V

230 V

80

Illustration shows Duo version 28 704X

Ø 590

Duo version with two pumps

SPZ pump

Voltage

With recessed cover for on-site tiling

1000-S3

1000-S3 resistant

With black cover

1000-S3

1000-S3 resistant

230 V

230 V

230 V

230 V

3.1

2

0

7

4

2

0

Ø

1

1

0

1

2

2

4

2

0

2

0

7

Ø

1

1

0

2

9

5

Ø

4

0

2

9

5

Ø

4

0

3

5

1

3

5

1

D

D

7

0

-

1

8

0

7

0

-

1

8

0

L

i

f

t

i

n

g

s

t

a

t

i

o

n

s

1

2

2
