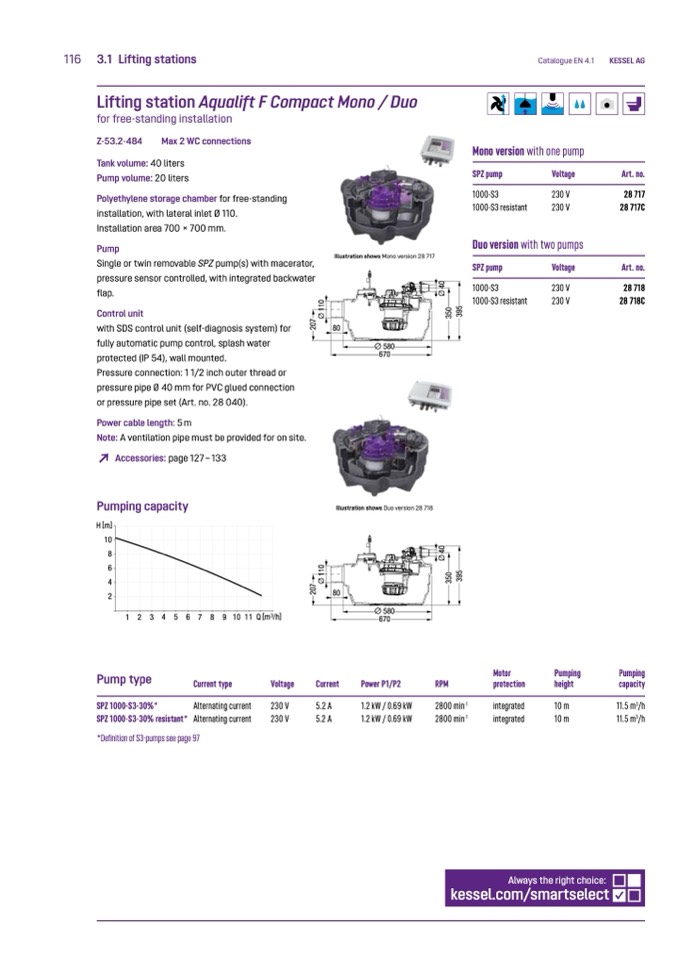

116 3.1 Lifting stations

Lifting station Aqualift F Compact Mono / Duo

Catalogue EN 4.1

Mono version with one pump

KESSEL AG

Art. no.

28 717

28 717C

Art. no.

28 718

28 718C

for free-standing installation

Z-53.2-484

Max 2 WC connections

Tank volume: 40 liters

Pump volume: 20 liters

Polyethylene storage chamber for free-standing

installation, with lateral inlet Ø 110.

Installation area 700 × 700 mm.

Pump

Single or twin removable SPZ pump(s) with macerator,

pressure sensor controlled, with integrated backwater

flap.

SPZ pump

1000-S3

1000-S3 resistant

Voltage

230 V

230 V

Control unit

with SDS control unit (self-diagnosis system) for

fully automatic pump control, splash water

protected (IP 54), wall mounted.

Pressure connection: 1 1/2 inch outer thread or

pressure pipe Ø 40 mm for PVC glued connection

or pressure pipe set (Art. no. 28 040).

Power cable length: 5 m

Note: A ventilation pipe must be provided for on site.

↗

Accessories: page 127 – 133

Pumping capacity

Illustration shows Duo version 28 718

H [m]

10

8

6

4

2

SPZ 1000-S3-30% resistant* Alternating current

*Definition of S3-pumps see page 97

80

Current

5.2 A

5.2 A

Ø 580

670

Power P1/P2

1.2 kW / 0.69 kW

1.2 kW / 0.69 kW

Pump type

1 2 3 4 5 6 7 8 9 10 11 Q[m

3

/h]

Voltage

230 V

230 V

Motor

protection

integrated

integrated

Pumping

height

10 m

10 m

Pumping

capacity

11.5 m

3

/h

11.5 m

3

/h

Current type

SPZ 1000-S3-30%*

Alternating current

RPM

2800 min

-1

2800 min

-1

Illustration shows Mono version 28 717

80

Ø 580

670

SPZ pump

1000-S3

1000-S3 resistant

Voltage

230 V

230 V

Duo version with two pumps

2

0

7

2

0

7

Ø

1

1

0

Ø

1

1

0

3

5

0

3

9

5

Ø

4

0

3

5

0

Ø

4

0

3

9

5

Always the right choice:

kessel.com/smartselect
