KESSEL AG

Catalogue EN 4.1

3.1 Lifting stations 117

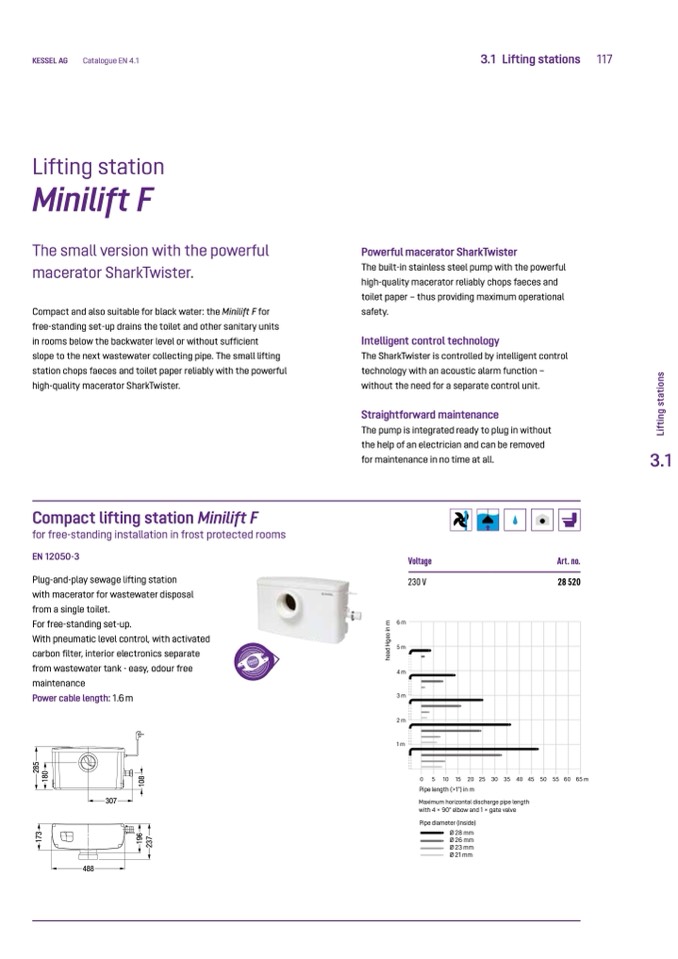

Lifting station

Minilift F

The small version with the powerful

macerator SharkTwister.

Compact and also suitable for black water: the Minilift F for

free-standing set-up drains the toilet and other sanitary units

in rooms below the backwater level or without sufficient

slope to the next wastewater collecting pipe. The small lifting

station chops faeces and toilet paper reliably with the powerful

high-quality macerator SharkTwister.

Compact lifting station Minilift F

for free-standing installation in frost protected rooms

EN 12050-3

Plug-and-play sewage lifting station

with macerator for wastewater disposal

from a single toilet.

For free-standing set-up.

With pneumatic level control, with activated

carbon filter, interior electronics separate

from wastewater tank - easy, odour free

maintenance

Power cable length: 1.6 m

307

Powerful macerator SharkTwister

The built-in stainless steel pump with the powerful

high-quality macerator reliably chops faeces and

toilet paper – thus providing maximum operational

safety.

Intelligent control technology

The SharkTwister is controlled by intelligent control

technology with an acoustic alarm function –

without the need for a separate control unit.

1

7

3

2

8

5

1

9

6

1

0

8

2

3

7

1

8

0

h

e

a

d

H

g

e

o

i

n

m

L

i

f

t

i

n

g

s

t

a

t

i

o

n

s

488

Straightforward maintenance

The pump is integrated ready to plug in without

the help of an electrician and can be removed

for maintenance in no time at all.

Voltage

230 V

3.1

6m

5m

4m

3m

2m

1m

0 5 10 15 20 25 30 35 40 45 50 55 60 65 m

Pipe length (>1°) in m

Maximum horizontal discharge pipe length

with 4 × 90° elbow and 1 × gate valve

Pipe diameter (inside)

Ø 28 mm

Ø 26 mm

Ø 23 mm

Ø 21 mm

Art. no.

28 520
