KESSEL AG

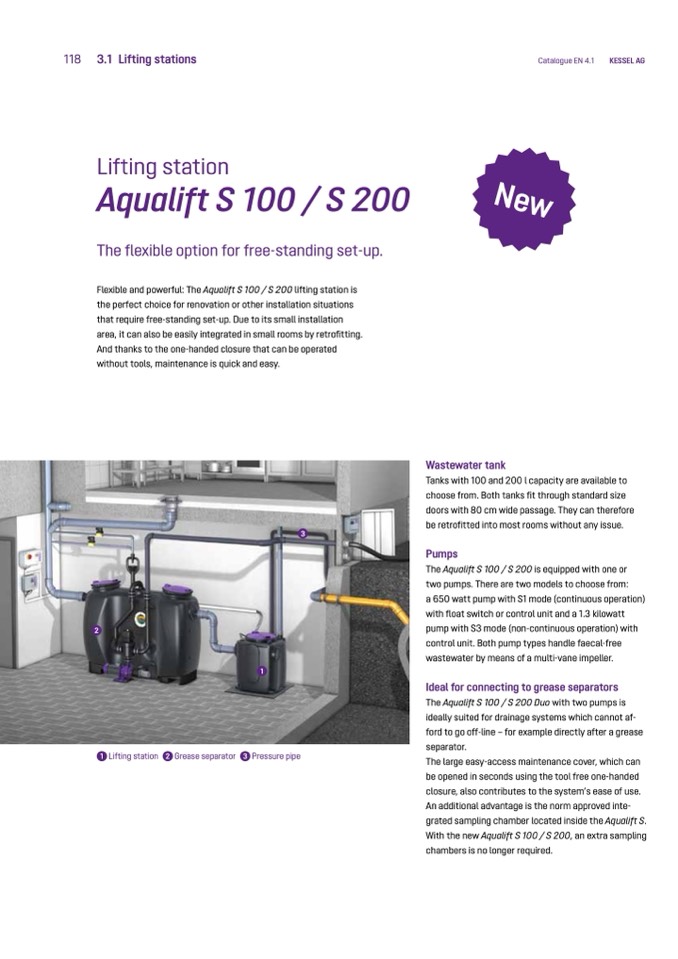

Aqualift S 100 / S 200

Flexible and powerful: The Aqualift S 100 / S 200 lifting station is

the perfect choice for renovation or other installation situations

that require free-standing set-up. Due to its small installation

area, it can also be easily integrated in small rooms by retrofitting.

And thanks to the one-handed closure that can be operated

without tools, maintenance is quick and easy.

Wastewater tank

Tanks with 100 and 200 l capacity are available to

choose from. Both tanks fit through standard size

doors with 80 cm wide passage. They can therefore

be retrofitted into most rooms without any issue.

Pumps

The Aqualift S 100 / S 200 is equipped with one or

two pumps. There are two models to choose from:

a 650 watt pump with S1 mode (continuous operation)

with float switch or control unit and a 1.3 kilowatt

pump with S3 mode (non-continuous operation) with

control unit. Both pump types handle faecal-free

wastewater by means of a multi-vane impeller.

Ideal for connecting to grease separators

The Aqualift S 100 / S 200 Duo with two pumps is

ideally suited for drainage systems which cannot af-

ford to go off-line – for example directly after a grease

separator.

The large easy-access maintenance cover, which can

be opened in seconds using the tool free one-handed

closure, also contributes to the system’s ease of use.

An additional advantage is the norm approved inte-

grated sampling chamber located inside the Aqualift S.

With the new Aqualift S 100 / S 200, an extra sampling

chambers is no longer required.

Lifting station

2 Grease separator

3 Pressure pipe
