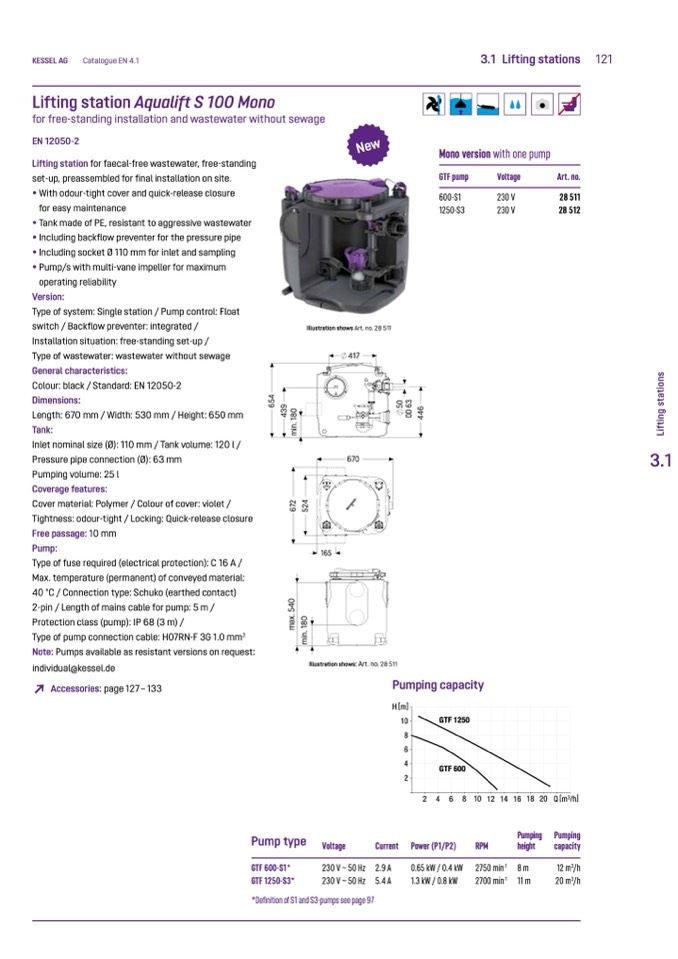

Lifting station Aqualift S 100 Mono
for free-standing installation and wastewater without sewage
EN 12050-2
Lifting station for faecal-free wastewater, free-standing
set-up, preassembled for final installation on site.
• With odour-tight cover and quick-release closure
for easy maintenance
• Tank made of PE, resistant to aggressive wastewater
• Including backflow preventer for the pressure pipe
• Including socket Ø 110 mm for inlet and sampling
• Pump/s with multi-vane impeller for maximum
operating reliability
Version:
Type of system: Single station / Pump control: Float
switch / Backflow preventer: integrated /
Installation situation: free-standing set-up /
Type of wastewater: wastewater without sewage
General characteristics:
Colour: black / Standard: EN 12050-2
Dimensions:
Length: 670 mm / Width: 530 mm / Height: 650 mm
Tank:
Inlet nominal size (Ø): 110 mm / Tank volume: 120 l /
Pressure pipe connection (Ø): 63 mm
Pumping volume: 25 l
Coverage features:
Cover material: Polymer / Colour of cover: violet /
Tightness: odour-tight / Locking: Quick-release closure
Free passage: 10 mm
Pump:
Type of fuse required (electrical protection): C 16 A /
Max. temperature (permanent) of conveyed material:
40 °C / Connection type: Schuko (earthed contact)
2-pin / Length of mains cable for pump: 5 m /
Protection class (pump): IP 68 (3 m) /
Type of pump connection cable: H07RN-F 3G 1.0 mm
2
Note: Pumps available as resistant versions on request:
individual@kessel.de
↗
Accessories: page 127 – 133
Mono version with one pump
New
Pump type
2 4 6 8 101214161820Q[m
3
/h]
Pumping Pumping
Power (P1/P2)
RPM
height
capacity
Illustration shows Art. no. 28 511
417
670
3.1
165
Illustration shows: Art. no. 28 511
Pumping capacity
H [m]
10
GTF 1250
8
6
4
2
Voltage
GTF600-S1*
230V~50Hz 2.9A
0.65kW/0.4kW 2750min
-1
8m
12m
3
/h
Current
GTF1250-S3*
230V~50Hz 5.4A
1.3kW/0.8kW
2700min
-1
11m
20m
3
/h
*Definition of S1 and S3-pumps see page 97
GTF pump
600-S1
1250-S3
Voltage
230 V
230 V
Art. no.
28 511
28 512
m
a
x
.
5
4
0
m
i
n
.
1
8
0
5
2
4
6
5
4
4
3
9
6
7
2
m
i
n
.
1
8
0
5
0
O
D
6
3
4
4
6
L
i
f
t
i
n
g
s
t
a
t
i
o
n
s
GTF 600
